Product Advantage

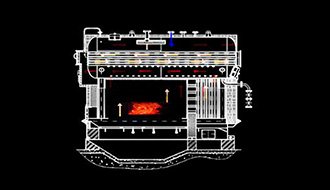

  • A more reasonable steam boiler structure can meet production needs with less fuel.

    Allows you to use less fuel to meet the production needs of the factory. We optimized the structure of the boiler, integrating the water pipe and the fire pipe into a boiler system, allowing the high-temperature flue gas to exchange heat with water more times, which can make the boiler have stronger heat absorption capacity, faster heat, and higher efficiency.

  • Improve steam temperature and quality to ensure production requirements.

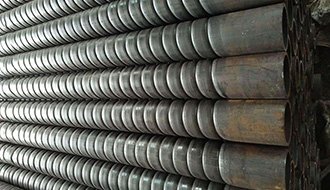

    The threaded smoke pipe stirs the high-temperature flue gas evenly to ensure the uniform temperature of the high-temperature flue gas, which can form a stable temperature difference with the hot water and exchange heat more quickly. At the same time, the heating area is enlarged and the stroke of high-temperature flue gas is increased.

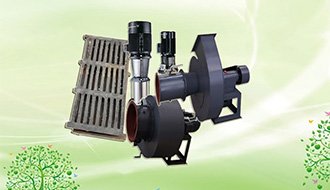

  • The layout of the air duct and grate of the biomass fired steam boiler is more reasonable.

    The air duct of the steam boiler and the space reserved for the grate are more reasonable, so that the air entering the furnace can fully contact the fuel, and the fuel can be fully fueled. The air volume is just enough to meet the air required for complete fuel combustion. Improved fuel utilization.

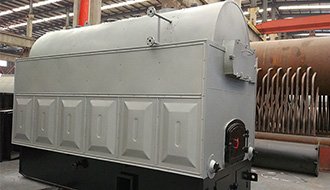

  • It is more convenient to place the boiler system.

    The structure of the steam boiler system is more compact, no matter it is shipped or installed, it only needs less space. Allows you to save transportation costs, saving land and installation costs.

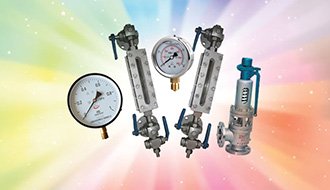

  • Biomass-fired steam boiler accessories

    Configure better quality accessories to replace well-known brand accessories, saving more procurement costs. In this way, your boiler can not only run stably, but also run at a lower price.EPCB Boiler, your private boiler expert.

Technical Parameters

Choose the right parameters and let us design a more suitable Cost Saving Biomass Fired Steam Boiler system for you. If you have no good ideas, you can contact us. Let us find a way together.

  Item\Type

Cost Saving Biomass Fired Steam Boiler

Rated capacity t/h

0.5

1

2

3

4

6

Rated steam pressure MPa

0.7/1.0

0.7/1.0/1.25

1.0/1.25

1.0/1.25

1.25

1.25

Rated steam temperature ℃

170/184

170/184/194

170/184/194

184/194

194

194

Feed water temperature ℃

20

20

20

20

20

20

Heated surface  area m²

radiation / convection

1.42/12.1

4.55/20.12

7.3/41.4

10.06/74.1

12.1/76.8

16/129.6

Suitable fuel type

Coal / Biomass / Wood / Charcoal / Jute / Fabric, ect.

Boiler heat efficiency %

79.2

80.2

81.1

81.2

81.6

81.7

Fuel consumption kg/h

84.62

167.14

330.56

342.67

454.65

681.15

Effective area of grate m2

1.0

1.5

2.72

3.0

3.98

5.89

Transportation size of boiler mm

length

3270

4270

4900

5840

6735

6700

width

1664

1920

2560

2660

2660

3000

height

2725

2870

3470

3520

3520

3600

Weight of largest parts of boiler transportation (ton)

7

11/11.6

16

25

27

28

Notes: 1.This form is only for reference, if any changed, please refer to factory's technical documents.
            2.The calorific value of fuel in this form is based on the calorific value as follows: biomass-18800                 KJ/kg.


No.

Item

Example/Issuer

Qty

Unit

1

Boiler Drawings

General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing.

1

Set

2

Boiler Quality Certificate

Issued by the boiler inspection department of China government.

1

Set

3

Certificate of Origin

Such as CO, Form E, Form F, Form A, etc.

1

Set

4

Boiler Thermodynamic Calculation Book

Issued by the boiler supplier.

1

Set

5

Boiler Strength Calculation Book

Issued by the boiler supplier.

1

Set

6

Installation & Operation Instruction

Issued by the boiler supplier.

1

Set


Company Strength

EPCB Boiler is a professional boiler manufacturer in China. Focus on industrial boiler production and sales for 68 years. Our main products are coal-fired boilers, oil gas boilers, biomass boilers, electric boilers, and power plant boilers. EPCB Boiler has more than 15000 users, and the users are covering more than 100 countries and regions. EPCB Boiler is well received by users, because of its features energy saving, environmental protection, helping users save money and High quality After services. We have professional boiler engineers to customize the boiler system for you so that you and your enterprise can produce higher quality products at a lower cost! Make your enterprise more competitive!

  • Send You Inquiry

  • Give You Boiler Solution

  • Place The Order

  • Get Your Boiler

Ask for Boiler Solution Suited Your Condition!

Tell us your need about boiler capacity in your industry, we will recommend the most suitable boiler model for you!
