Capacity: 15~160×104Kcal/h
Pressure: 0.8-1.1MPa
Fuel: Bituminous Coal, Soft Coal, Anthracite, Lignite, Poor Coal, etc.
Application: Food Industry, Chemical Industry, Textile Industry, Plastic Industry, Pharmaceutical Industry, Tire Industry, Oil Pressing Industry, Petroleum Industry…

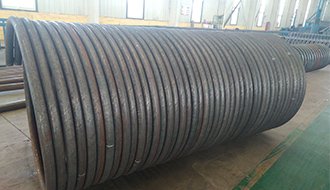

The heating surface of the boiler body adopts densely arranged coils. The heating surface is adequately arranged, which can effectively reduce the heat load on the surface of pipes and make the use of the heat conducting oil medium safer.

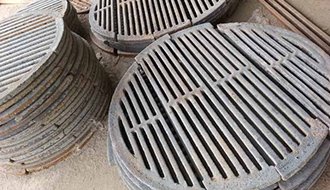

Adopting a fixed grate, and the grate gap is completely adjusted to reduce the leakage of the coal briquettes. Combination of fixed grate and variable frequency fan can better control the wind speed, fully burn coal, and effectively save fuel cost.

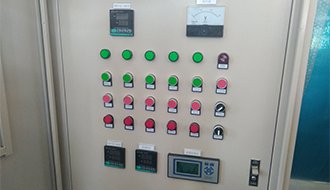

Boiler adopts intelligent monitoring and control system, which can detect various data of the boiler operation, control the boiler uniformly, and combine the data of valves and instruments and alarm system to make boiler operation safer and more reliable.

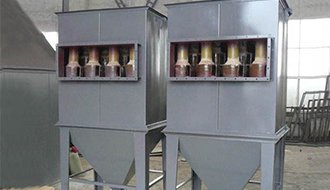

The system is equipped with an efficient multi-pipe dust collector with good dust removal effect, no black smoke emission. It fully ensures that the pollutant emission of boilers meets the requirements of environmental protection departments in various countries.

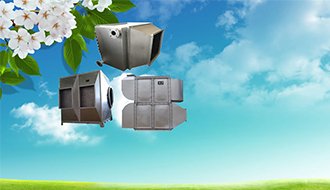

In order to meet customers' energy-saving requirements, we provide customers with multiple energy-saving equipment choices, such as air preheater and economizer, which can improve boiler thermal efficiency and reduce heat loss of boiler system.
Find the capacity of the coal fired thermal oil boiler you want and check other parameters of the boiler as a reference.
Item/Type | Vertical Fixed Grate Coal Fired Thermal Oil Boiler | ||||||||||
Rated thermal power | kw | 180 | 300 | 350 | 460 | 700 | 1000 | 1200 | 1400 | 1600 | 1900 |
×104(Kcal/h) | 15 | 25 | 30 | 40 | 60 | 80 | 80 | 120 | 140 | 160 | |
Boiler thermal efficiency % | 73 | 73 | 73 | 73 | 76 | 76 | 76 | 76 | 78 | 78 | |
Design pressure MPa | 1.1 | ||||||||||
Max. working temperature ℃ | 320 | ||||||||||
Medium circulation flow m3/h | 12.5 | 40 | 40 | 60 | 80 | 100 | 100 | 100 | 100 | 160 | |
Main pipe diameter DN | 40 | 80 | 80 | 100 | 100 | 125 | 125 | 125 | 125 | 150 | |
Installation capacity kw | 8.5 | 15 | 18/15 | 24/20 | 28/25 | 45/40 | 53/48 | 60/55 | 60 | 80/73 | |
Fuel type | Bituminous Coal, Soft Coal, Anthracite, Lignite, Poor Coal, etc. | ||||||||||
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
