What is a Chain Grate Boiler?

EPCB is a leading maker of industrial steam boilers. We're excited to introduce you to chain grate boilers. Ever wondered how industries make steam for their work?

A chain grate boiler is a special industrial boiler. It uses a chain to move fuel through the fire chamber. This makes sure fuel is used well and efficiently.

Chain grate boilers are simple and easy to use. They've been around since the early 1900s. In this article, we'll talk about why they're important in industry. We'll also compare them to other types to help you choose the best one for you.

Understanding Chain Grate Boilers

Chain grate boilers are key in many industries. Knowing how they work is important for them to run well. At EPCB, we make our boilers with a special chain belt system. This system moves fuel through different fire zones for the best results.

Definition and Basic Structure

A chain grate boiler is a type of industrial boiler. It moves fuel from the start to the fire chamber with a chain belt. Our boilers have an automatic system to keep fuel flowing smoothly. As fuel moves, it dries, lights up, and burns, making heat.

The basic parts of a chain grate boiler are the grate, fire chamber, heating surfaces, and systems for feeding and removing ash. This setup helps burn fuel well and transfer heat efficiently.

Historical Development and Applications

Chain grate technology has grown over years to be a top choice worldwide. It was made to burn fuel better and has been used in many places, like power plants and factories.

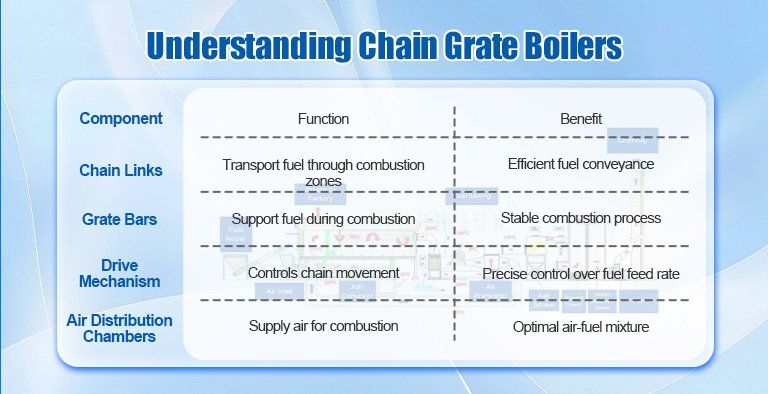

Key Components of a Boiler Chain Grate

The main parts of a boiler chain grate are the chain links, grate bars, drive, and air chambers. These parts make sure fuel is spread right, air is given well, and heat is transferred well. This makes the boiler work better.

Our industrial boilers work automatically, which means less work for people. They keep burning fuel well, no matter the size. The system for removing ash also makes work easier.

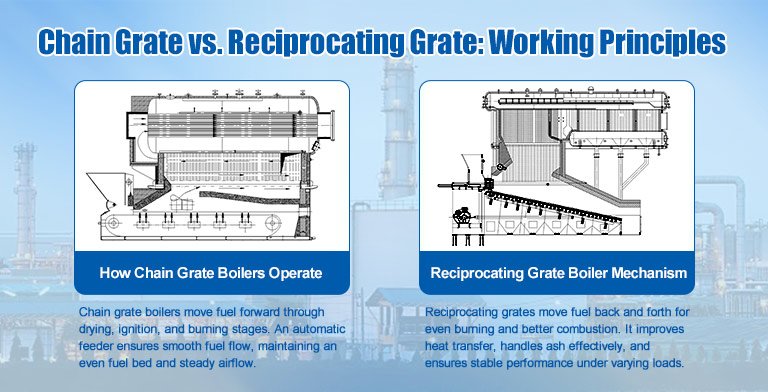

Chain Grate vs. Reciprocating Grate: Working Principles

It's important to know the difference between chain grate and reciprocating grate boilers. At EPCB, we've made both work well. We want to help you find the best boiler for your needs.

How Chain Grate Boilers Operate

Chain grate boilers work by moving fuel in a forward motion. This motion goes through stages of drying, ignition, and burning. Our systems use an automatic feeder to keep fuel flowing smoothly.

As fuel moves, it dries, ignites, and burns, creating heat. This method keeps the fuel bed even and air flow steady. This leads to stable burning and reliable steam production.

The chain grate's motion spreads fuel evenly, leading to efficient burning. This method works well with coal and biomass.

Reciprocating Grate Boiler Mechanism

Reciprocating grates move fuel back and forth. This motion helps burn fuel evenly by moving unburned parts for better burning. It also breaks up clumps and controls burning well, even when loads change.

Our reciprocating grates mix fuel well, leading to efficient heat transfer. The back-and-forth motion also helps manage ash and clinker, making it strong for industrial use.

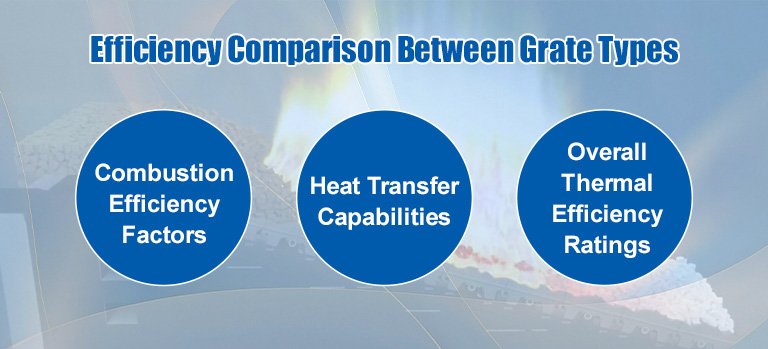

Efficiency Comparison Between Grate Types

At EPCB, we know boiler efficiency depends on the grate type. We work hard to improve our boilers' thermal efficiency. This helps our clients get the best and most eco-friendly solutions.

Combustion Efficiency Factors

Combustion efficiency is key for boiler performance. Reciprocating grates often have an edge in efficiency because of their fuel agitation. This leads to better burning and less waste.

Factors like air flow, fuel thickness, and control systems are important for efficiency. Reciprocating grates are great for wet fuels, while chain grates work better with dry fuels.

Heat Transfer Capabilities

Heat transfer efficiency is also affected by the grate type. Reciprocating grates have better heat transfer because of fuel agitation. This means more efficient heat transfer through the boiler's surfaces.

Overall Thermal Efficiency Ratings

Studies show reciprocating grates can reach up to 90% efficiency. Chain grates usually get between 85-87%. At EPCB, we give thermal efficiency ratings based on our real-world data.

Knowing the efficiency differences helps our clients choose the right boiler for their needs.

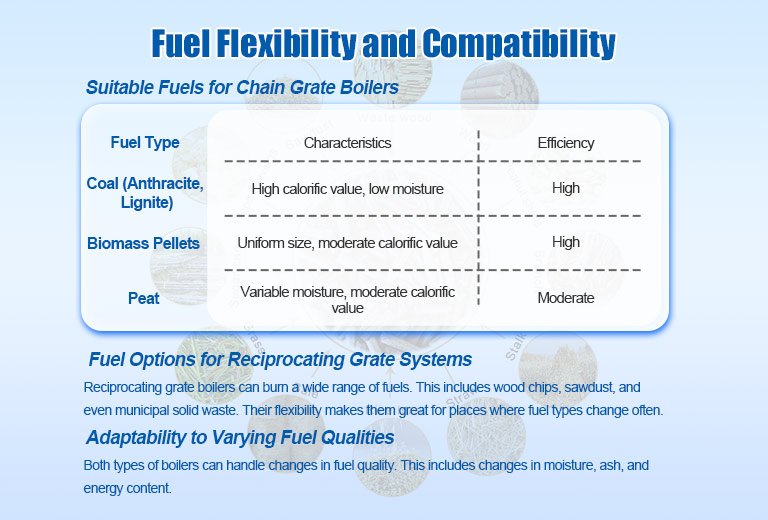

Fuel Flexibility and Compatibility

At EPCB, we know how important fuel flexibility is for industrial boilers. Being able to use different fuels can make a big difference in efficiency and cost. We'll look at how chain grate and reciprocating grate boilers handle fuel flexibility.

Suitable Fuels for Chain Grate Boilers

Chain grate boilers are great at burning solid fuels like coal, biomass pellets, and peat. They work best with fuels of the same size. These boilers can use different types of coal and biomass fuels like wood pellets and rice hulls.

Fuel Options for Reciprocating Grate Systems

Reciprocating grate boilers can burn a wide range of fuels. This includes wood chips, sawdust, and even municipal solid waste. Their flexibility makes them great for places where fuel types change often.

Adaptability to Varying Fuel Qualities

Both types of boilers can handle changes in fuel quality. This includes changes in moisture, ash, and energy content. At EPCB, we design our systems to adjust for these changes, keeping steam output steady. This is key for keeping operations efficient and costs down.

Knowing how different boilers handle fuel flexibility helps industries choose the right one. This choice can improve performance and cut costs.

Environmental Impact and Emissions

At EPCB, we focus on the environmental impact of our industrial boilers. We design our boilers to be environmentally friendly. This includes using advanced technologies to control emissions and meet strict standards.

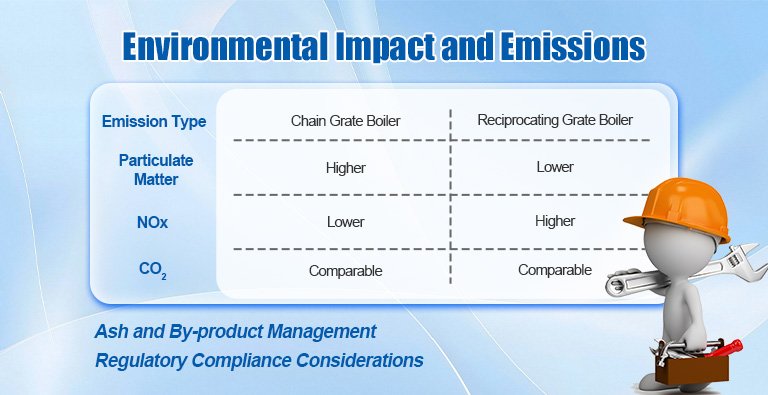

Emission Profiles of Grate Technologies

Chain grate and reciprocating grate boilers have different emission profiles. Reciprocating grate boilers tend to have lower emissions due to better combustion and air control. Chain grate boilers, on the other hand, might have lower NOx emissions. Both types have similar CO2 emissions, depending on the fuel and efficiency.

Ash and By-product Management

Both boilers produce ash, but manage it differently. Reciprocating grate boilers push ash to the slag outlet. Chain grate boilers use a chain belt to move ash to the end. At EPCB, we have systems to collect, cool, and prepare ash for disposal or reuse.

Regulatory Compliance Considerations

Understanding emissions regulations is key for compliance. At EPCB, we design our boilers to meet local standards. We also offer extra equipment to reduce emissions further, especially for sensitive environments.

By comparing emissions and ash management, we can better meet environmental regulations. This helps us make informed decisions in our boiler designs.

Cost Analysis and ROI Considerations

At EPCB, we help our clients understand the costs of industrial boilers. This ensures they make informed decisions. Knowing the total cost is key to getting the best return on investment.

Initial Investment

The cost of industrial boilers varies. Chain grate boilers are often cheaper upfront. This makes them a good choice for those watching their budget.

Operating and Maintenance Costs

Chain grate boilers might be cheaper to start with. But, their ongoing costs can be different. Reciprocating grate boilers might be more efficient and use fuel better, saving money over time.

Reciprocating grate boilers might need more complex maintenance. This is because of their detailed mechanical parts.

Long-term Value

Looking at the long-term value of a boiler involves many factors. Efficiency, fuel flexibility, maintenance, and how long it lasts are all important. At EPCB, we help clients weigh these to find the true cost of their boiler.

By looking at both the start-up costs and ongoing expenses, our clients can make better choices. These choices align with their goals for operation and finance.

Conclusion: Choosing the Right Industrial Boiler for Your Needs

At EPCB Boiler, picking the right boiler is crucial for your industrial needs. The choice between chain grate and reciprocating grate boilers depends on several factors. These include the fuel type, efficiency needs, and environmental impact.

We've outlined the main differences between these boilers. These differences are in efficiency, fuel flexibility, environmental impact, and cost. Our experts can guide you to choose the best boiler for your needs. We consider factors like fuel types, steam needs, and budget.

We offer thermal oil heaters and other heating products to complement our boilers. With years of experience, we've helped many clients improve their thermal processes. Our goal is to provide complete thermal solutions.

We invite you to talk to our boiler experts about your heating needs. Discover the perfect EPCB boiler solution for your operation. Our support throughout your boiler's life ensures efficient and green energy use.

FAQ

What is the typical thermal efficiency of a chain grate industrial boiler?

The thermal efficiency of a chain grate industrial boiler varies. It can be between 70% to 85%. This depends on the design, operation, and maintenance, as well as the fuel type.

How does the heating surface area impact the efficiency of a boiler?

A larger heating surface area improves heat transfer. This results in higher thermal efficiency and better performance.

What types of fuel are compatible with chain grate boilers?

Chain grate boilers can burn various fuels. This includes coal, biomass, and other solid fuels. They are versatile for industrial use.

How does the combustion process affect emissions in a chain grate boiler?

The combustion process in a chain grate boiler affects emissions. Factors like fuel quality, air/fuel ratio, and combustion temperature influence pollutants. These include particulate matter, nitrogen oxides, and sulfur dioxide.

What are the key factors to consider when evaluating the cost of a chain grate boiler?

When evaluating a chain grate boiler's cost, consider several factors. These include the initial investment, operating and maintenance costs, fuel costs, and the return on investment over its lifespan.

How does the design of the furnace and flue gas path impact boiler efficiency?

The design of the furnace and flue gas path affects boiler efficiency. Factors like furnace size, flue gas velocity, and heat transfer surface area influence efficiency.

What role does thermal oil play in industrial boiler applications?

Thermal oil is used in some industrial boiler applications. It offers advantages like high temperature stability and low pressure operation. This makes it suitable for certain processes.

How can the operation and maintenance of a boiler impact its efficiency and lifespan?

Keeping a boiler in good shape is key to its efficiency and longevity. Regular cleaning, inspections, and repairs are essential. They help avoid problems and keep the boiler running smoothly.
