How Do Industrial Steam Boilers Work?

July 04, 2023

Introduction

Steam boilers play a vital role in modern industry and are used in a wide range of industries. They provide high temperature and high pressure steam for generating electricity, heating and driving machinery.


Let's talk about this in more detail - How Do Industrial Steam Boilers Work?


What Is An Industrial Steam Boiler?

1

An industrial steam boiler is a pressure vessel that produces steam by heating water and then discharging the steam through pipes to generate kinetic energy for external equipment for a variety of industrial purposes.


An industrial steam boiler consists of a number of components such as a furnace, a pot, a tube bundle, a flue and a control system. The components work in a rational way to collect and distribute the steam generated by combustion to all areas of industrial production.


The EPCB industrial steam boiler offers special advantages such as efficient energy conversion, adjustable output temperature and pressure, operational flexibility and reliability. Not only do they meet the needs of different industries, they also play an important role in the development and sustainability of modern industry.


The Working Principle Of Steam Boilers

3


There are various types of steam boilers, but they are all designed to produce steam for different industrial purposes. Here are the specific principles


  • Fuel combustion and heat release: Industrial steam boilers use different types of fuel, such as coal, natural gas, oil, etc. The fuel is ignited in the furnace chamber to produce high temperature combustion. During the combustion process, the chemical energy in the fuel is released as heat energy. Flue gases and exhaust gases are thus produced and discharged in the flue.


  • Heating of water and conversion to steam: The heat energy released by combustion is transferred through the wall casing of the furnace chamber to the surrounding tube bundles or directly to the pot barrel. The barrel is filled with water and the heat energy is transferred to the water, causing it to be heated. As the temperature rises, the water begins to convert into steam.


  • Collection and distribution of steam: As the water heats up, the steam produced builds up in the barrel of the pot. Once the steam has reached the required pressure and temperature, it is collected in the steam vessel. The steam container is usually located at the top of the boiler. The steam can be transferred through a piping system to where it is needed, such as mechanical equipment, heating systems or processes.


  • Venting of flue gases: During the combustion of fuel and the release of heat energy, the flue gases and exhaust gases are generated and discharged through the flue. The flue is a system of passages that direct the flue gases into the atmosphere. In the flue, equipment such as flue gas cleaners are often included to reduce the emission of pollutants from the exhaust gases.


The workflow of an industrial steam boiler is a continuous cycle of fuel combustion, heat transfer, heating and conversion of water to steam, collection and distribution of steam, and flue gas emissions. The process is designed to efficiently convert the energy of the fuel into usable steam energy to meet the power, heating and control needs of industrial production. At the same time, through proper design and operation, industrial steam boilers can achieve energy savings and environmental protection.

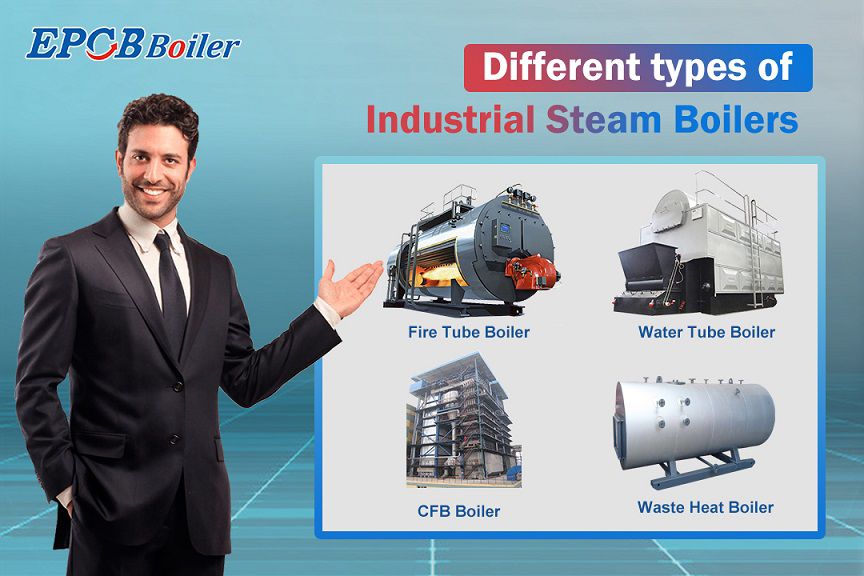

The different types of industrial steam boilers

The different industrial steam boilers have their own characteristics and areas of application. Depending on the industrial requirements and application scenarios, choosing the right type of boiler can lead to more efficient energy use and productivity. Let's take a look at the following comparisons


  • Fire tube boiler: Fire tube boilers are widely used in small to medium sized factories and are a traditional type of boiler. By burning fuel, a high temperature flame is produced and heat is transferred through pre-installed spiral or linearly arranged tubes inside the boiler, which in turn heat the surrounding water to produce steam. It is a relatively simple design and the most affordable type of steam boiler.


  • Water tube boiler: Water tube boilers are widely used in intensive industries and offer higher thermal efficiency. Steam is obtained by directly heating the water tubes inside the boiler through the high temperature gases produced by the combustion of fuel. Water tube boilers are able to withstand higher pressures than fire tube boilers.


  • circulating fluidized bed boiler: Circulating fluidized bed boilers use a special combustion technology that utilises a bed of solid particles to achieve the combustion process. In a circulating fluidised bed, a bed of solid particles is kept circulating in the bed by the flow of gas or liquid. The fuel and solid particles are mixed and burned in the bed to produce high temperature gases and to transfer heat energy to the water. This design offers good combustion and heat transfer efficiency and can be adapted to a wide range of different fuel types.


  • Waste heat boilers: Waste heat boilers use the waste heat generated by industrial processes to produce steam. In many industrial processes, heat energy is often emitted to the atmosphere in the form of waste heat. Waste heat boilers convert this waste heat into steam energy by recovering and utilising it. This type of boiler is important in terms of improving energy efficiency and reducing environmental pollution.


Components of an industrial steam boiler

Industrial steam boilers are made up of several core components, each of which plays an important role in the overall system.


  • Furnace Chamber: The furnace chamber is the combustion chamber of an industrial steam boiler where fuel is burned to produce heat. The furnace chamber is usually constructed of high temperature resistant materials to withstand the high temperatures and the impact of combustion. The heat energy released during combustion will be transferred to the surrounding tube bundle or directly to the boiler barrel, heating the water and converting it into steam.


  • Kettle barrel: The kettle barrel is a pressure vessel that holds water and steam. It is usually made of steel and has sufficient strength and sealing properties to withstand high temperature and pressure operating conditions. The inside of the barrel is divided into a water zone and a steam zone, where heat energy is transferred from the furnace chamber to the water by means of heat exchange, causing the water to heat and convert into steam.


  • Tube bundle: The tube bundle is the network of pipes used to transfer heat. Connecting the furnace chamber to the boiler, the heat energy generated by the flue gas or combustion is transferred to the water through the pipes. Tube bundles are usually made of high temperature alloys or high temperature resistant steel to withstand the high temperatures and pressures required. The design and layout of the tube bundle directly affects the efficiency of heat transfer and the performance of the overall boiler system.


  • Flue: The flue is the passage through which the flue gas is discharged. During the combustion process, the flue gases and exhaust gases from the burning of the fuel are discharged to the atmosphere through the flue. The flue also serves the function of smoke extraction, recovery of waste heat and purification of exhaust gases to reduce environmental pollution and energy waste.


  • Control system: The control system is the equipment used to monitor and control the operation of the boiler. It includes components such as sensors, instrumentation and automatic regulating valves to measure and monitor boiler parameters such as temperature, pressure and flow, and to regulate and control the combustion, water supply and emissions of the boiler through automatic regulating controllers to ensure safe operation and efficient performance.



These components work together to form a complete industrial steam boiler system. They convert energy into steam through a process of fuel combustion and heat exchange, and provide power, heating and control functions to meet the demands of industrial production. The design and optimisation of each component has a significant impact on the efficiency, safety and reliability of the boiler.


Areas of application for industrial steam boilers

5

Industrial steam boilers have a wide range of applications in modern industry, covering many different sectors. The following are the main areas of application for industrial steam boilers in various industries:


  • Power plants and the electricity industry: by burning fuel to produce high temperature, high pressure steam, which drives turbine generators to produce electricity.


  • Petroleum and chemical industries: The petroleum and chemical industries require large amounts of thermal energy for processes such as oil refining and chemical production. Industrial steam boilers can provide high temperature and high pressure steam for heating reactors, distillation towers, drying equipment, etc.


  • Pulp and paper industry: Industrial steam boilers provide the pulp and paper industry with the steam heat it needs for pulp refining, paper manufacturing and drying. This helps to improve production efficiency and product quality.


  • Food processing and beverage industry: Industrial steam boilers provide the food processing and beverage industry with clean steam at high temperatures and pressures for cooking, sterilising, steaming, drying and more.


  • Pharmaceutical and medical facilities: Industrial steam boilers can provide high quality, pure steam for sterilisation, cleaning and heating applications.


  • Steel and metalworking industries: Industrial steam boilers provide high temperature and high pressure steam to meet the thermal energy requirements for processes such as steel making, casting, quenching and heating in metalworking processes.


Maintenance And Safety Of Industrial Steam Boilers

6

The maintenance and safety of industrial steam boilers is an important aspect of ensuring their reliable operation and the safety of employees.


  • Regular maintenance and servicing: Regular maintenance and servicing is essential to ensure the proper operation of steam boilers. This includes regularly cleaning the various parts of the boiler, checking and replacing damaged parts, and carrying out systematic inspections and tests. Through regular maintenance, potential problems can be identified and resolved, extending the life of the boiler and improving its operational efficiency.


  • Safe operating practices: Safe operation is the key to ensuring that steam boilers are safe to operate. Operators should be professionally trained in the operating procedures and safety protocols of the boiler. They should be familiar with operational requirements such as start-up and shut-down procedures, combustion control, water level control and pressure control. Strict adherence to these requirements can reduce the risk of accidents and operational errors.


  • Compliance requirements: Industrial steam boilers must be operated in accordance with relevant regulations and standards. These regulations and standards may cover requirements for the design, installation, operation and maintenance of the boiler. Companies should be aware of and comply with relevant national, regional and industry regulations to ensure boiler compliance, and carry out the necessary audits and permits.


  • Testing and monitoring: Boilers should be equipped with appropriate testing and monitoring equipment to monitor their operational status in real time. Such equipment may include water level controls, pressure gauges, thermometers and combustion controls. By monitoring key parameters, abnormalities can be detected and appropriate action taken in time to ensure the safe operation of the boiler.


  • Staff training and awareness-raising: In addition to regular maintenance and safe operational measures, training and raising the safety awareness of staff is vital. Employees should be aware of the basic working principles, safe operating procedures and emergency measures for boilers. Regular training courses and safety drills are organised to improve employees' knowledge and response to boiler safety.


Conclusion

Industrial steam boilers are a key driver of industrial production and manufacturing, providing a stable and reliable source of steam energy for a wide range of industries. To ensure they deliver optimum performance and operate safely, regular maintenance services are essential. EPCB Boiler is ready to help businesses of all sizes achieve these goals and if you have any further questions about boilers, please feel free to contact us at EPCB, your personal boiler system experts!
