Industrial Steam Boiler Efficiency Ratings

October 17, 2025

Industrial steam boiler efficiency ratings are not just technical metrics; they are pivotal elements influencing energy utilization, cost management, and environmental responsibility. This article will systematically dissect the essence of efficiency, its calculation principles, potential influencing factors, and practical improvement strategies to provide you with tangible guidance.

Understanding Industrial Steam Boiler Efficiency

In industrial facilities, steam boilers are often major energy consumers, and their efficiency levels directly determine fuel utilization effectiveness.

Boiler efficiency is commonly measured by indicators such as Annual Fuel Utilization Efficiency (AFUE), which reflects the proportion of fuel input that is truly converted into useful heat.

In industrial applications, an efficient boiler can convert over 90% of the fuel energy into steam effectively, with the remaining portion dissipated through exhaust or other forms.

According to relevant data, modern industrial boilers typically achieve an AFUE or similar efficiency value of 90% or higher, while older models often remain between 56% and 70%, leading to unnecessary energy waste.

Higher efficiency not only means lower fuel demand but also brings more stable production processes, which is particularly valuable during periods of unstable energy prices.

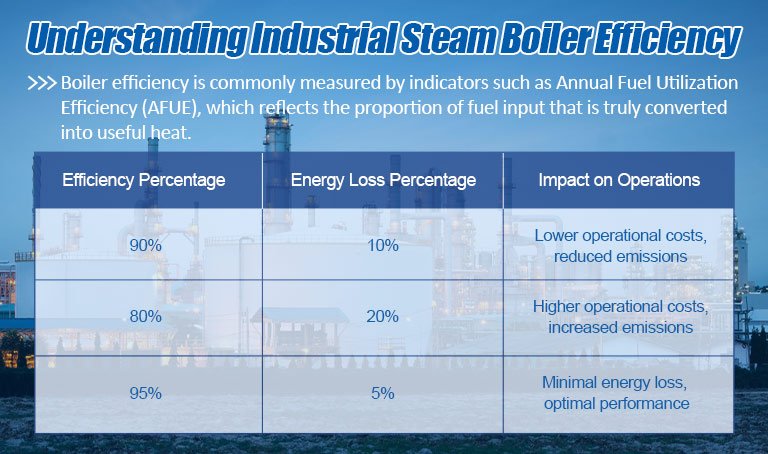

The following table provides a brief overview of the impact of different efficiency levels:

Efficiency Percentage	Energy Loss Percentage	Impact on Operations
90%	10%	Lower operational costs, reduced emissions
80%	20%	Higher operational costs, increased emissions
95%	5%	Minimal energy loss, optimal performance

How to Calculate Boiler Efficiency Ratings

Efficiency ratings are not abstract numbers but performance indicators derived from rigorous testing.

Industrial efficiency standards provide a reliable basis for comparing boilers. EPCB strictly adheres to international norms such as ASME PTC 4, which cover direct methods (comparing fuel input with steam output) and indirect methods (deducting losses like radiation and convection). For example, AFUE, a common indicator, calculates the ratio of heat converted from annual fuel consumption, often used for gas or oil boilers. If the AFUE value is 90%, it means 90% of the fuel energy is effectively utilized, with the remaining 10% lost through flues or other pathways.

To further enhance evaluation reliability, there are other certification systems like ENERGY STAR, which requires gas boilers to achieve at least 90% efficiency and oil boilers at least 87%. In Europe, the ErP directive uses a letter grading from A+++ to G, where most modern condensing boilers receive an A rating or higher, though this has limited practicality when comparing top models.

The differences between AFUE, thermal efficiency, and combustion efficiency are as follows:

Efficiency Type	Description	Relevance to Industrial Boilers
AFUE	Calculates the annual ratio of fuel converted to heat, considering seasonal factors	Limited relevance, mainly for small systems, but can reference industrial seasonal loads
Thermal Efficiency	Percentage of heat input converted to water or steam heat	Highly relevant, suitable for steady-state industrial operations
Combustion Efficiency	Effectiveness of the burner in converting fuel to heat	Highly relevant, for optimizing combustion processes

EPCB always provides multi-dimensional data to ensure clients understand boiler performance under industrial loads. In a pharmaceutical plant project, targeted optimization of thermal efficiency elevated the system from 82% to 91%, significantly reducing annual maintenance expenses.

EPCB's Boiler Efficiency Rating Method

At EPCB, we are always committed to delivering accurate and transparent efficiency data to support clients' informed choices. We conduct comprehensive tests under various load conditions, including detailed assessments of thermal efficiency and combustion efficiency.

Our testing method emphasizes authenticity and depth. We simulate real industrial scenarios, such as fluctuations in steam pressure and changes in fuel types, and track long-term efficiency trends.

Based on the ASME PTC 4 standard, we cover full-spectrum load testing to reveal potential performance. For instance, under partial load conditions, efficiency may drop by 3-7%, providing clients with valuable insights for optimizing operations.

When reporting efficiency data, we emphasize clarity and completeness, including turndown ratios and partial load details. These reports can be easily accessed through product manuals, websites, or professional consultations. We also include maintenance guidance to help sustain long-term efficiency.

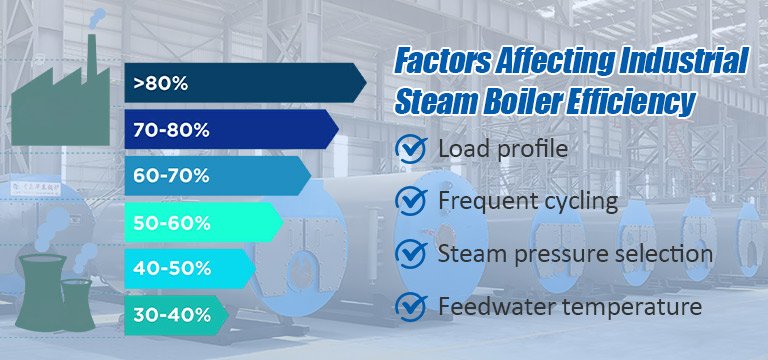

Factors Affecting Industrial Steam Boiler Efficiency

Boiler efficiency is influenced by numerous elements, and understanding them can pave the way for system optimization.

Fuel type and quality are the foundation of efficiency. High-moisture fuels consume extra energy for evaporation, thereby dragging down overall performance. EPCB recommends selecting high-calorific-value fuels like natural gas, which can push efficiency above 80%.

Boiler design and technology also play a key role. Innovations such as condensing systems can recover waste heat and improve utilization rates. EPCB's products incorporate adaptive controls and heat recovery modules to ensure reliable performance under industrial loads.

Operational conditions and load factors include:

· Load profile: Operating at 30-50% capacity may lead to a 3-7% efficiency reduction.

· Frequent cycling: Repeated starts and stops significantly weaken average efficiency.

· Steam pressure selection: Lower pressures can sometimes enhance efficiency but must balance process requirements.

· Feedwater temperature: Every 10°F increase can bring about a 1% efficiency improvement.

By optimizing these factors, enterprises can reap significant benefits.

Industrial Steam Boiler Types and Their Efficiency Profiles

Industrial steam boilers come in diverse types, each with efficiency characteristics tailored to specific needs. EPCB offers a comprehensive product line to adapt to various efficiency goals. This section will compare common types and highlight their industrial advantages.

Fire-tube boilers transfer combustion gases through tubes surrounded by water, with a simple structure suitable for medium-to-low steam demands. Efficiency is generally 80-85%, with lower initial investment but limited heat exchange. They perform well in small-to-medium facilities but are not ideal for high-pressure environments.

Water-tube boilers allow water to flow through heated tubes, capable of handling higher pressures and capacities. Efficiency can reach 85-90%, with superior heat transfer. Suitable for large-scale industries like chemical production.

The comparison between condensing and non-condensing boilers highlights efficiency potential:

· Condensing boilers recover heat by condensing flue gas water vapor, achieving efficiencies up to 94-98.5%, but require lower return water temperatures for maximum effectiveness.

· Non-condensing boilers typically have efficiencies of 80-85%, with lower initial costs but greater long-term energy losses. If efficiency is below 85%, it is likely non-condensing and over 15 years old, making it an ideal candidate for upgrade.

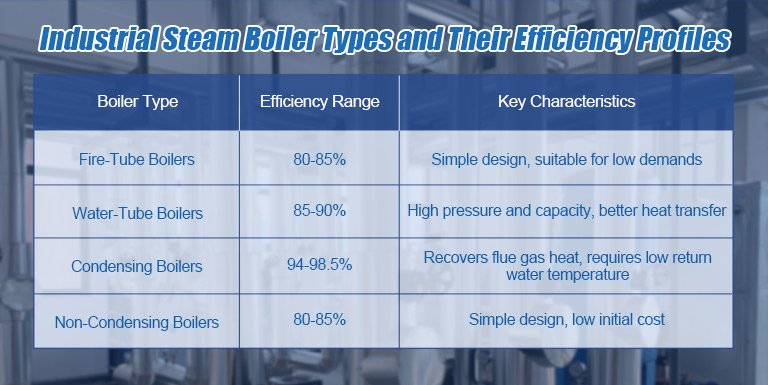

Boiler Type	Efficiency Range	Key Characteristics
Fire-Tube Boilers	80-85%	Simple design, suitable for low demands
Water-Tube Boilers	85-90%	High pressure and capacity, better heat transfer
Condensing Boilers	94-98.5%	Recovers flue gas heat, requires low return water temperature
Non-Condensing Boilers	80-85%	Simple design, low initial cost

For existing systems, we recommend hybrid upgrades, such as adding condensing economizers. In a meat processing plant retrofit, this strategy boosted efficiency from 82% to 95% without full replacement.

Economic Impact of Boiler Efficiency Ratings

Efficiency ratings directly shape a company's financial landscape. EPCB reveals the investment potential of efficient boilers through lifecycle assessments.

ROI evaluations for high-efficiency boilers typically cover 15-25 years of operation. Fuel expenses account for 75-80% of total costs, and a modest improvement like 5% can yield 5-10 times the additional investment in fuel savings. We incorporate net present value analysis to consider the time value of money. In scenarios of expanded production scale, this savings effect amplifies further.

Long-term savings must also weigh fuel price increases. High-efficiency systems can alleviate carbon tax burdens and enhance environmental compliance. Premium boilers have higher resale value, providing additional economic incentives.

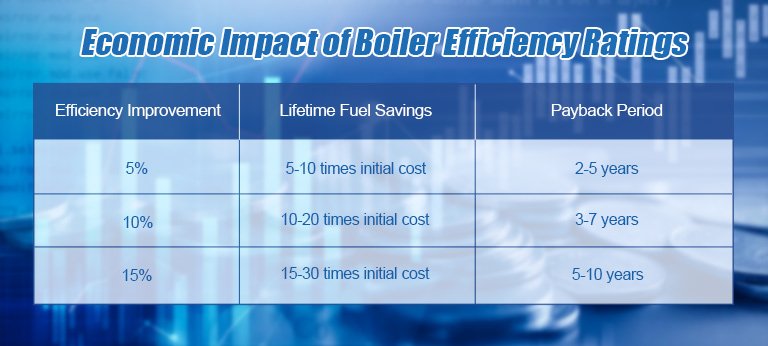

Efficiency Improvement	Lifetime Fuel Savings	Payback Period
5%	5-10 times initial cost	2-5 years
10%	10-20 times initial cost	3-7 years
15%	15-30 times initial cost	5-10 years

From our perspective, with the advancement of sustainable policies, efficient boilers can effectively buffer price risks, achieving more stable financial strategies.

Strategies to Improve Industrial Boiler Efficiency

Improving boiler efficiency requires an organic integration of operational adjustments, routine maintenance, and targeted upgrades. EPCB adopts a comprehensive approach to ensure systems reach optimal states.

Operational optimization involves system balancing to ensure even heat distribution. By adjusting flow near the boiler, it can better enter high-efficiency modes. In an industrial optimization case, these measures improved efficiency by 4-7%.

Maintenance practices include regular cleaning, leak inspections, and control validations. Good maintenance prevents efficiency declines and extends equipment life. EPCB recommends annual comprehensive inspections.

Upgrade options include:

· Economizer installation: Recovers heat from flue gases, improving by 4-7%.

· Burner improvements: Optimizes fuel combustion.

· Control system updates: Adapts to various load conditions.

· Insulation enhancements: Reduces shell heat losses by 1-2%.

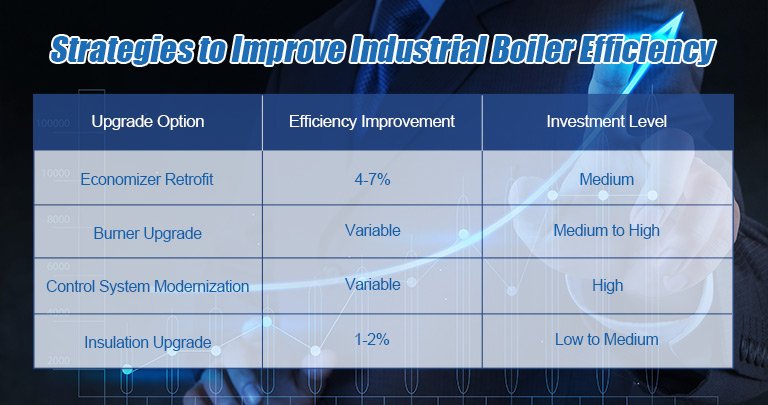

Upgrade Option	Efficiency Improvement	Investment Level
Economizer Retrofit	4-7%	Medium
Burner Upgrade	Variable	Medium to High
Control System Modernization	Variable	High
Insulation Upgrade	1-2%	Low to Medium

The synergistic application of these strategies can lead to significant energy savings.

Conclusion

EPCB recommends mastering all aspects of boiler efficiency as the cornerstone for operational optimization. We suggest going beyond surface data and comprehensively considering actual operating environments.

Collaborating with reliable manufacturers and paying attention to energy trends can maximize benefits and minimize impacts. We welcome you to contact the EPCB engineering team for customized advice on boilers.

FAQ

What is the difference between AFUE, thermal efficiency, and combustion efficiency?

AFUE evaluates the annual ratio of fuel converted to heat, thermal efficiency focuses on input-to-output heat transfer, and combustion efficiency measures the effectiveness of fuel burning. These help in selecting appropriate industrial boilers. According to DOE, thermal and combustion efficiencies are more practical in industry.

How to determine the appropriate size of an industrial steam boiler for a facility?

Assess steam demands, pressure, and load patterns. Proper sizing optimizes energy consumption and avoids waste. EPCB provides simulation services to support decision-making.

What are the benefits of using a condensing industrial steam boiler?

Condensing models recover waste heat, achieving higher efficiency, reducing bills and emissions. Suitable for applications pursuing top performance, but compatibility with temperature conditions must be ensured.

What is the maintenance frequency for industrial steam boilers?

It is recommended at least once a year, or follow the manufacturer's guidelines. Regular maintenance preserves efficiency; neglecting it may result in 2-5% losses.

Can retrofitting an old industrial steam boiler improve its efficiency?

Certainly, through component upgrades like burners or heat exchangers, it can enhance performance and extend usage. In actual cases, retrofits saved 10-15% in fuel.

What is the role of fuel type and quality in industrial steam boiler efficiency?

High-quality fuel improves combustion efficiency, reduces emissions and costs. Inferior fuel increases losses. EPCB recommends compatibility testing.

How to calculate the return on investment (ROI) for a high-efficiency industrial steam boiler?

Analyze energy savings, maintenance reductions, and initial costs. Comprehensive evaluation calculates the payback period, using net present value methods to quantify value.
