How Does a Thermocouple Work ?

In the field of industrial boilers, temperature monitoring is the core element to ensure system efficiency and safety. As a key sensor, thermocouple can achieve accurate measurement by generating voltage corresponding to temperature. In the boiler system of EPCB, these sensors are helpful to optimize the combustion process,

prevent overheating and reduce the fuel cost. EPCB boiler will comprehensively expound the basic principles, practical applications, challenges and maintenance.

The Key Role of Temperature Monitoring in Industrial Boilers

Temperature monitoring plays a vital role in industrial boilers, which not only directly affects the efficiency of the system, but also relates to the safe operation of equipment. From our experience, accurate temperature control can significantly reduce energy waste and equipment failure, and bring considerable economic benefits to enterprises.

In the operation of boiler, even the temperature fluctuation of 10-15 F (about 5-8 C) may lead to the decrease of combustion efficiency, thus increasing the fuel cost. According to the data of the U.S. Department of Energy, the change of ambient temperature every 40°F will affect the boiler efficiency by about 1%. To meet this challenge, EPCB boiler adopts advanced thermocouple technology in boiler design to ensure the uniformity of heat distribution and control the potential fuel cost increase within 2-3%. This precise temperature control not only improves the overall efficiency of the boiler, but also prolongs the service life of the equipment.

In the high-pressure industrial boiler system, temperature control is not only related to efficiency, but also the core of safe operation. Once the temperature exceeds 1000°F (about 538°C), it may cause catastrophic damage to the equipment. Therefore, EPCB boiler strategically arranges thermocouples in key areas such as combustion chamber and steam drum to monitor temperature changes in real time to prevent overheating. Through these sophisticated measurement systems, we can find anomalies early and take timely measures to ensure the safety of equipment and personnel.

A customer in petroleum refining and chemical industry shared their experience: "The thermocouple monitoring system helped us find a potential overheating problem in time, avoided equipment damage, saved high maintenance costs and improved the reliability of the system."

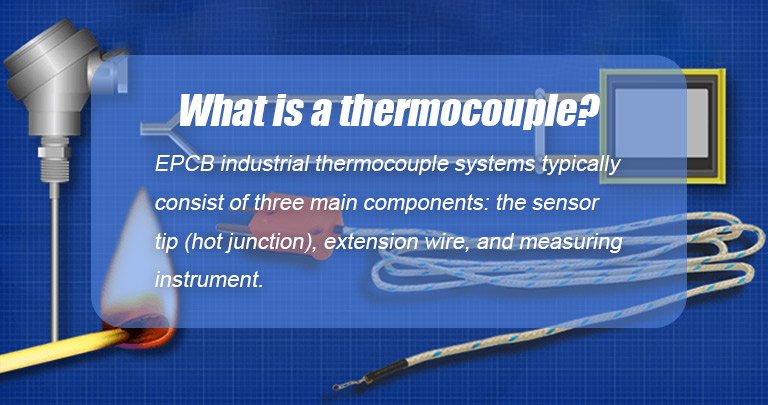

What is a Thermocouple?

Thermocouple is the core component of industrial boiler temperature monitoring and control system, and its simple and efficient design makes it perform well in harsh environment. It consists of two different metal wires connected at one end to form a "hot end", which generates a voltage signal through temperature difference, thus measuring the temperature. Although the principle is simple, the thermocouple can still maintain reliability under complex conditions such as high temperature, high pressure, vibration and corrosion.

The industrial thermocouple system of EPCB boiler usually consists of three main parts: sensor tip (hot end), extension line and measuring instrument. The tip of the sensor is responsible for directly measuring the temperature, and the extension cable transmits the voltage signal to the measuring instrument, which converts the signal into a temperature reading. This cooperative working mode ensures the accuracy and real-time performance of temperature measurement.

The application of thermocouple in industrial boilers has many unique advantages. First of all, they are suitable for a wide temperature range and can provide stable readings at extremely high temperatures. Secondly, thermocouple has excellent durability and can work in vibration, pressure fluctuation and corrosive environment for a long time. In addition, its cost is relatively low, and it is suitable for deployment at several key measuring points of boiler system.

In EPCB, we strategically arrange thermocouples to ensure the efficient and safe operation of boilers. For example, after upgrading the boiler, a customer of a textile mill gave feedback: "The use of thermocouples extended the maintenance interval by 20%, which significantly improved the operational efficiency." This reliable temperature monitoring scheme not only improves the equipment performance, but also brings considerable economic benefits to customers.

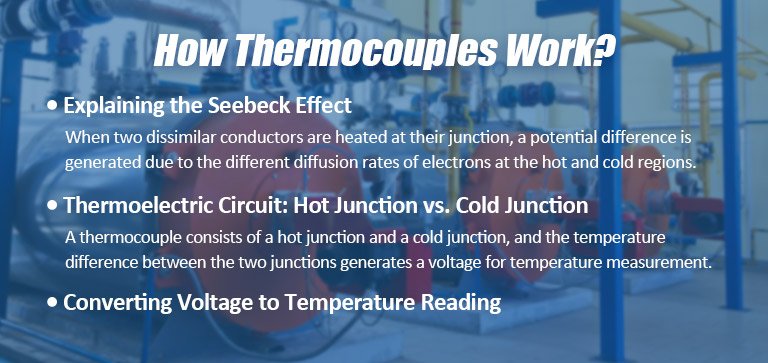

Working Principle of Thermocouple

In EPCB, it is very important to understand the working principle of thermocouple for optimizing boiler performance. Thermocouple generates a small voltage by heating, which is used to measure temperature. This mechanism is based on thermoelectric effect: when two different conductors are combined and exposed to temperature difference, the internal electrons flow directionally, generating a detectable potential difference. The difference between materials makes electrons respond in different ways under the temperature gradient, and finally forms a voltage signal related to temperature difference.

Explanation of Sibeck Effect

The operation of thermocouple is based on the Sibeck effect discovered by Thomas Seebeck in 1821. When two different conductors are heated at the connection point, a weak potential will be generated in the circuit. This is due to the electron migration caused by temperature change: in the high temperature region, electrons gain higher energy and diffuse to the low temperature region, but due to the different properties of conductors, the diffusion speed is different, resulting in charge separation and voltage formation. In the boiler application of EPCB, this effect allows real-time capture of temperature changes through voltage monitoring to ensure system stability.

Thermoelectric Circuit: Hot End vs. Cold End

Thermoelectric circuit of thermocouple consists of hot end and cold end. The hot end is located at the measuring point (such as the combustion chamber), and the cold end is connected with the measuring instrument. The temperature difference between the two ends produces voltage, which realizes accurate measurement. In EPCB system, the hot end is exposed to high temperature, and the cold end is kept at a lower temperature. For example, in a Type K thermocouple, every C change generates about 41 microvolts.

More specifically, the circuit is formed by welding two conductors at the hot end to form a closed loop; When the temperature at the hot end increases, the vibration of atoms increases, which promotes the transfer of free electrons from the hot zone to the cold zone. The imbalance of this transfer between different conductors leads to the imbalance of charge, thus outputting a quantifiable voltage signal at the cold end. This voltage directly reflects the temperature difference between the hot end and the cold end, and is used to quickly respond to potential overheating risks in boiler monitoring.

Convert the Voltage into a Temperature Reading

The voltage generated by thermocouples is usually in the millivolt range. For example, a Type K thermocouple is about 41 microvolts per c. EPCB's advanced control system uses standardized calibration tables for specific thermocouple types to convert these signals into accurate temperature readings.

It is very important to understand the voltage-temperature relationship to maintain the measurement accuracy of boiler operating life. We calibrate regularly to ensure consistency. In addition, in order to obtain the absolute temperature value, the reading is usually adjusted by the cold end compensation mechanism. The mechanism monitors the actual temperature of the cold end and corrects it in the calculation, so that the measurement error is controlled within 1% and the overall reliability of the system is significantly improved.

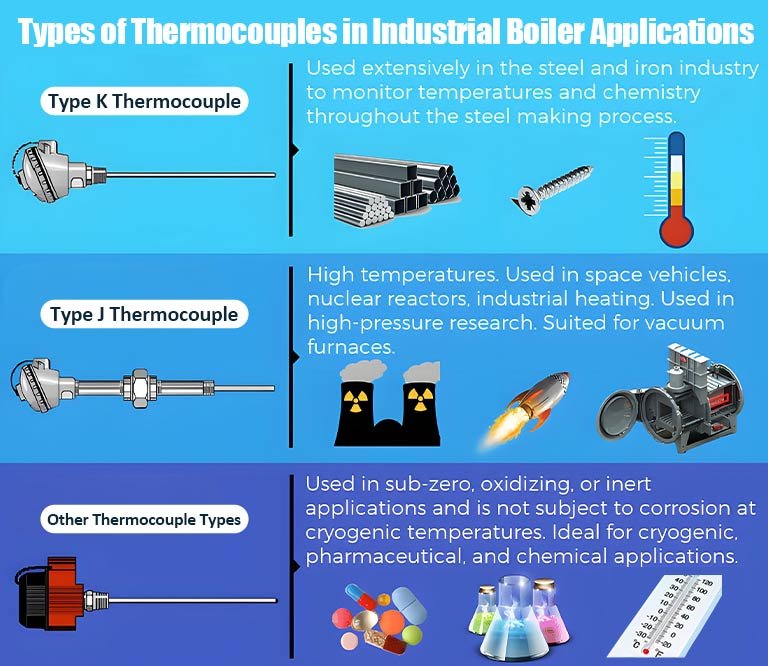

Types of Thermocouple in Industrial Boiler Application

In EPCB, we choose various thermocouple types to ensure accurate temperature measurement in the boiler. The choice depends on the specific application and temperature range. Common types include K, J, R/S, each with unique characteristics.

Type K Thermocouple

Type K thermocouple is the most commonly used type, with the temperature range from-330 F to+2460 F (-200 C to+1350 C). It is made of Chromel and Alumel alloys and has excellent oxidation resistance.

Type J Thermocouple

For applications where the temperature does not exceed 1400°F and higher accuracy is required, we use Type J thermocouples. Made of iron and constantan, they perform well in reducing atmosphere and sulfur-containing environment.

Other Thermocouple Types

For very high temperature applications, such as superheater monitoring, we use Type R or S thermocouples, which are made of platinum-rhodium alloys and can measure temperatures as high as 3200 F (1760 C). Each type has specific characteristics and is suitable for different areas of the boiler. By proper selection, we ensure the accuracy of measurement and control.

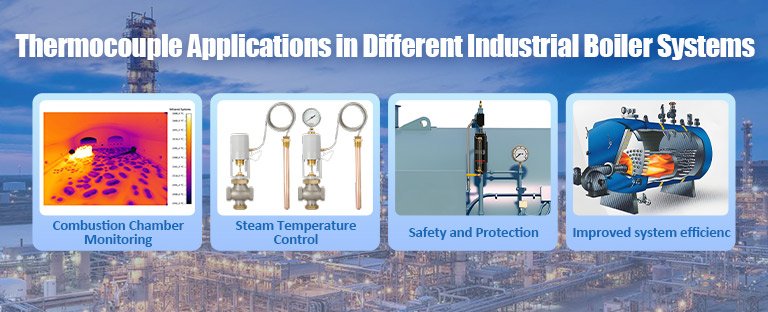

Application of Thermocouple in Different Industrial Boiler Systems

EPCB boiler system relies on thermocouples for cross-application temperature measurement. We implement thermocouples in several key areas to ensure efficient and safe operation.

Temperature monitoring in the combustion chamber: In the combustion chamber, thermocouple monitors the flame temperature to help optimize the air-fuel ratio, achieve maximum efficiency and minimize emissions. Different types are suitable for specific measuring points.

Steam temperature control application: For superheated steam, we use high-temperature thermocouple to maintain accurate control and protect the downstream process. In water tube boiler, the temperature of tube metal is monitored to prevent overheating failure.

Safety shutdown system and over-temperature protection: the safety system adopts redundant thermocouples, which will trigger shutdown if the temperature exceeds the threshold. For flue gas temperature measurement, thermocouple monitors heat transfer efficiency and provides early warning of scaling. Through these applications, we improve the system performance and security level.

Conclusion

EPCB always focuses on improving the temperature measurement technology of industrial boilers to help customers achieve higher efficiency and safer operation. We are introducing multipoint system and wireless thermocouple technology, which not only makes the temperature monitoring more comprehensive, but also effectively reduces the installation and maintenance costs. At the same time, we have developed a special thermocouple suitable for a wider temperature range and an intelligent sensor with built-in diagnostic function, which can predict faults and automatically compensate for drift, making maintenance easier and more efficient.

We will continue to provide suitable temperature measurement scheme for each boiler to help customers optimize performance and save costs. If you need a professional industrial boiler solution, please contact EPCB and we will serve you wholeheartedly!

FAQ

What is the principle of thermocouple temperature measurement?

Based on the Sibeck effect, the voltage generated by the connection of two different metals is proportional to the temperature difference between the hot end and the cold end.

What are the basic components of a thermocouple system?

Two different metal wires are connected at the hot end and the cold end to the measuring instrument, forming a complete measuring circuit.

Why does thermocouple application need cold end compensation?

Because the voltage is directly proportional to the temperature difference, uncompensated cold end temperature change will lead to inaccurate reading. Cold end compensation can correct the error and ensure the measurement accuracy.

What are the different types of thermocouples in industrial applications?

Common types include Type K, J, T, E, N, etc. Each type has a specific temperature range and applicable scenarios. For example, Type K is suitable for high temperature environment, while Type T is more suitable for low temperature and corrosive environment.

How to install thermocouple in industrial boiler system?

Thermocouples are usually installed in key locations, such as combustion chambers, steam drums or exhaust pipes. The specific configuration depends on the design and application requirements of the boiler to ensure the accuracy and coverage of temperature monitoring.

What are the common challenges in thermocouple implementation?

Common challenges include dealing with electrical noise interference, ensuring the accuracy of cold junction compensation, and extending the service life of thermocouples in high temperature, vibration and corrosive environments.

How to maintain and eliminate thermocouple faults in industrial boiler system?

Regular calibration and inspection are the key. Common problems such as wiring failure, sensor degradation or signal interference should be identified during maintenance. Replace the aging thermocouple in time and ensure that the connection point is clean and tight.

How long is the service life of thermocouple?

The life of thermocouple depends on its material, working environment and service conditions. In high temperature or corrosive environment, the service life may be short, but its service life can be significantly prolonged by selecting appropriate types (such as high temperature resistant or corrosion resistant materials) and regular maintenance.

How to choose the appropriate thermocouple type?

Temperature range, environmental conditions (such as corrosiveness or vibration), accuracy requirements and cost budget should be considered when selecting thermocouples. For example, Type K is suitable for high-temperature applications, while Type T is suitable for low-temperature and humid environments.
