Furnace Pressure Switch Replacement Guide for Industrial Boilers

Do you understand the critical role that a pressure switch plays in ensuring the safe and efficient operation of industrial boiler systems? As an industrial steam boiler manufacturer, we deeply understand the importance of maintaining proper pressure control. A faulty switch can lead to dangerous operating conditions and reduced efficiency.

In this comprehensive guide, we will walk you through the furnace pressure switch replacement process step by step, from identifying the need for replacement to detailed installation procedures for industrial-grade equipment. We will also include safety precautions, diagnostic techniques, and preventive maintenance suggestions to enhance practicality.

Understanding Pressure Switches in Industrial Boilers

We recognize the critical role that pressure switches play in ensuring the safe and efficient operation of industrial boilers. Pressure switches are integral components that monitor pressure levels within the boiler system, preventing potential hazards and ensuring optimal performance.

The Critical Role of Pressure Switches

Pressure switches in industrial boilers serve as key safety measures, detecting negative pressure generated by the draft inducer motor. This detection is essential for the proper venting of exhaust gases. If the pressure switch detects insufficient air pressure or a venting failure, it will prevent the boiler from operating, thereby protecting personnel and facilities from potential carbon monoxide buildup and gas leaks.

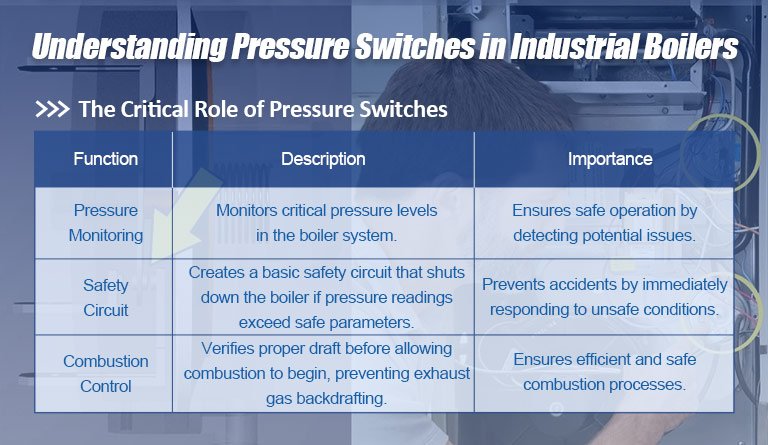

The following table summarizes their main functions (based on ASME boiler codes and industry standards):

Ensuring Safe Boiler Operation

The primary function of pressure switches in industrial boilers is to verify proper draft before allowing combustion to begin. These switches create a basic safety circuit that immediately shuts down the boiler if pressure readings exceed safe operating parameters. In large-capacity industrial boilers, pressure switches typically monitor multiple zones and functions, creating redundant safety systems to comply with OSHA and ASME standards. This helps prevent explosions or efficiency losses caused by high or low pressure.

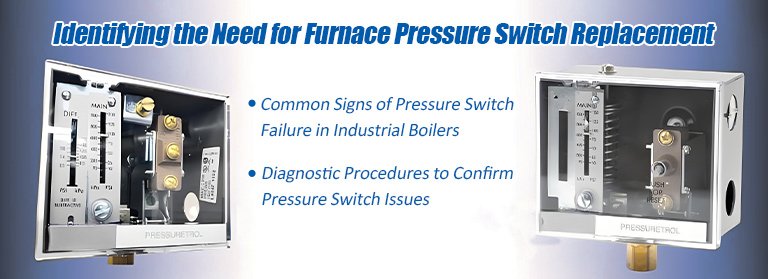

Identifying the Need for Furnace Pressure Switch Replacement

We have observed that furnace pressure switch replacement is crucial for maintaining industrial boiler efficiency. This switch is a key safety device that monitors boiler draft or pressure, shutting down the system if abnormal conditions are detected. When it fails, it can lead to reduced boiler performance or complete system shutdown.

Common Signs of Pressure Switch Failure in Industrial Boilers

Based on boiler service experience, we have identified several signs indicating pressure switch failure. These include no heat or unheated air circulation, short cycling (boiler repeatedly turning on and off), and the boiler failing to start. Abnormal noises during startup, such as clicking sounds, may also indicate pressure switch issues. Industrial boilers often experience these problems due to harsh operating conditions like high temperatures and corrosive environments.

· Intermittent operation or complete system shutdown

· Error codes on the boiler control panel

· Short cycling or failure to reach operating temperature

· Repeated clicking noises during startup followed by shutdown

If these signs are observed, diagnose immediately to avoid downtime. Preventive maintenance, such as annual inspections, can detect issues early.

Diagnostic Procedures to Confirm Pressure Switch Issues

To confirm pressure switch issues, we recommend a systematic diagnostic approach, including electrical continuity testing and pressure differential measurements. Use specialized testing equipment (such as a multimeter and manometer) to accurately diagnose pressure switch problems, distinguishing between switch failure and other related issues. Regular maintenance inspections can identify early warning signs of pressure switch deterioration, preventing unexpected downtime.

Tool List: Multimeter, manometer, screwdriver.

Estimated Diagnostic Time: 30-60 minutes.

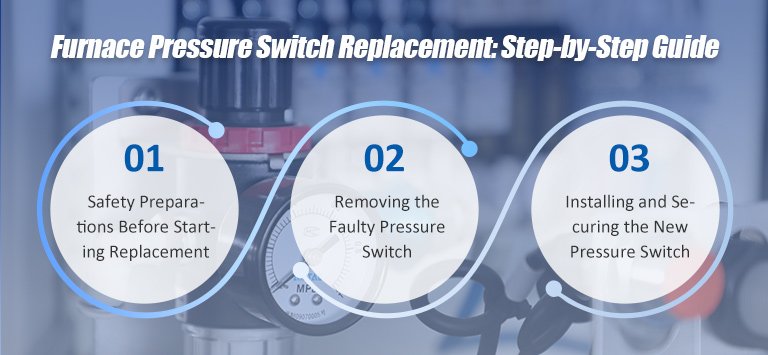

Furnace Pressure Switch Replacement: Step-by-Step Guide

Replacing a pressure switch is a key maintenance task for industrial boilers, ensuring safe and efficient system operation. The following is a step-by-step guide based on industry standards, including safety precautions. Estimated Cost: Parts $50-200, plus labor.

Safety Preparations Before Starting Replacement

Before beginning the replacement process, safety is paramount. We recommend completely disconnecting the boiler power and following proper lockout/tagout procedures (in compliance with OSHA standards). Gather all necessary tools (such as screwdrivers, wrenches, multimeter) and the exact replacement part specified for your industrial boiler model. Wear protective gear, including gloves and safety glasses. Ensure the system is depressurized and cooled.

Removing the Faulty Pressure Switch

The pressure switch is typically located near the draft inducer motor assembly. Carefully label all wires and hoses connected to the pressure switch to ensure correct reconnection later. Industrial boiler pressure switches often connect to multiple pressure sensing points via specialized hoses. Check for any signs of corrosion or damage.

Installing and Securing the New Pressure Switch

When installing the new pressure switch, follow the proper torque specifications for mounting hardware. Ensure all hose connections are completely sealed to prevent pressure leaks. The draft inducer motor and pressure switch work in tandem, so proper alignment and connection between these components are essential. Use the manufacturer's manual to verify specifications (such as activation points -0.5 to -1.0 inches water column).

Post-Replacement Testing and Verification

We emphasize the importance of post-replacement testing and verification to guarantee the safe and efficient operation of industrial boiler systems. HVAC experts perform a series of tests after installing a new furnace pressure switch to ensure the component functions as expected.

Proper Testing Procedures for New Pressure Switches

To verify the correct operation of the new pressure switch, we follow a comprehensive testing protocol. This includes:

· Initial visual inspection of all connections to ensure hoses are properly seated and electrical connections are secure.

· Systematic startup procedure to observe pressure switch operation during the initial draft inducer activation phase.

· Verification of pressure switch operation under multiple operating conditions, including cold startup, normal operation, and shutdown sequences.

Use a manometer to verify that activation points match manufacturer specifications.

Troubleshooting Common Issues After Replacement

If issues persist after replacement, use a systematic troubleshooting approach. Common problems include improper hose port connections, air leaks in pressure sensing lines, or incorrect switch pressure ratings. We use calibrated testing equipment to verify exact pressure switch activation points, ensuring they match your industrial boiler manufacturer's specifications.

Other Tips: Check for vent pipe blockages, clean sensing lines.

Preventive Maintenance: Test the switch annually to extend its lifespan.

EPCB's Industrial Boiler Pressure Switch Solutions

EPCB, as a professional industrial boiler manufacturer, primarily provides complete industrial boiler solutions, covering the entire process from design, production to installation and maintenance. These solutions are designed to meet the demanding requirements of commercial and industrial heating systems, including efficient steam boilers, hot water boilers, biomass boilers, gas boilers, and electric boiler systems. We manufacture and supply industrial-grade components, such as pressure switches designed specifically for boiler systems, to ensure the overall system's reliability and safety.

Within these complete solutions, our pressure switches serve as key components with enhanced durability, capable of withstanding extreme conditions in industrial heating applications, including high-temperature operation and continuous duty cycles. We provide pressure switch solutions applicable to various types of industrial boilers, such as high-pressure steam boilers, hot water boilers, and specialized process heating systems, for seamless integration into the overall boiler system.

Our engineering team has developed pressure switches with improved reliability features, including corrosion-resistant materials and reinforced diaphragms, extending operational life in industrial environments. EPCB pressure switches undergo rigorous testing to ensure precise activation points and consistent performance under varying operating conditions, thereby enhancing the efficiency and safety of the entire boiler system.

We provide comprehensive technical support to help you select pressure switch specifications suitable for specific industrial boiler models and applications. As part of our complete boiler solutions, our industrial pressure switches integrate seamlessly with modern HVAC control systems, providing safety functions and diagnostic data for preventive maintenance.
