How to Improve the Boiler Thermal Efficiency?

Improving the thermal efficiency of industrial boilers is a key link in achieving energy conservation, consumption reduction and sustainable development.This paper provides a comprehensive strategy to improve the thermal efficiency of industrial boilers, aiming at solving the core problem: how to improve the thermal efficiency of boilers? By paying attention to key measures, such as reducing excessive air to optimize combustion, installing thermal energy recovery systems such as economizer, and regular maintenance to clean heat transfer surfaces and maintain good water quality management, you can significantly improve the operating efficiency of boilers.

These methods can not only minimize fuel consumption and operating costs, but also promote environmental sustainability. The guide emphasizes practical steps, from basic maintenance (such as checking steam traps and insulated pipelines) to advanced upgrade (such as automatic blowdown and condensate return system), to ensure practicality and realize efficient operation of boilers.

Understand the Thermal Efficiency of Boiler and its Importance

Boiler thermal efficiency refers to the percentage of energy provided by fuel that is effectively converted into steam or hot water, usually calculated as a percentage. The core of this concept is to measure the utilization rate of energy conversion and help enterprises identify potential waste points. In order to improve efficiency, it is necessary to set a benchmark by calculating the current efficiency level, such as using fuel input and steam output data for evaluation, so as to make a targeted improvement plan.

The importance of improving boiler thermal efficiency is reflected in the double benefits of economy and environment. Higher efficiency means less fuel consumption, which directly reduces operating costs. According to authoritative data, every time the flue gas temperature is reduced by 40°F (about 22°C), the efficiency can be improved by about 1%, which can be converted into significant savings for the system with high annual fuel expenditure. In addition, optimizing efficiency can also reduce greenhouse gas emissions and support sustainable development goals. Enterprises should regard efficiency as a long-term investment, and quantify the return by regularly evaluating the whole life cycle cost, such as the comprehensive analysis of initial purchase, maintenance and energy expenditure.

In practice, understanding the importance of efficiency can also guide decision-making. For example, many industrial facilities found through preliminary audit that simple adjustment such as reducing excessive air can quickly improve performance by 1-2%. This not only improves the bottom line, but also prolongs the service life of the equipment and reduces the risk of unexpected downtime. Generally speaking, giving priority to efficiency improvement can inject vitality into industrial processes and ensure competitive advantage.

Key Factors Affecting Industrial Boiler Efficiency

There are many key factors affecting the thermal efficiency of boilers, and understanding these factors is helpful to implement targeted improvement measures. These factors mainly involve heat loss, combustion conditions and external environment. Through systematic analysis, enterprises can optimize one by one to achieve overall improvement.

Flue gas temperature and heat loss: Too high flue gas temperature is a common efficiency killer, because it means that heat is not fully utilized and discharged with exhaust gas. To improve this problem, the temperature can be lowered by installing heat recovery equipment or adjusting combustion parameters, and the efficiency can be improved by 1% for every 40°F drop. Regular monitoring of flue gas composition can also help identify incomplete combustion and further reduce losses by 10-20%.

Radiation and convection losses: These losses occur on boiler surfaces and pipes, and energy is dissipated through thermal radiation and air convection. The lifting strategy includes upgrading insulation materials and covering exposed parts, which can reduce heat loss by 5-10%. Good design and maintenance can keep these losses to a minimum and ensure that more heat is used in the production process.

Influence of ambient air temperature: the temperature of intake air directly affects the combustion efficiency, and every 40°F change of temperature may lead to 1% fluctuation of efficiency. In cold season, preheating air is an effective method, which can stabilize combustion and improve overall performance. Considering regional climate differences, enterprises should adjust their systems to adapt to external conditions.

Fuel specification and its influence: the characteristics of fuel type such as natural gas or fuel oil determine the combustion efficiency. Choosing high calorific value fuel and optimizing its proportion can avoid incomplete combustion and improve efficiency by 4%. In addition, fuel quality control, such as water and impurity management, is also a key factor.

Boiler load management is equally important. Ideally operating at 70-80% capacity can maximize efficiency and avoid proportional loss at low load. Through the comprehensive optimization of these factors, enterprises can achieve sustainable efficiency improvement.

Basic Measurements For Evaluating Boiler Performance

The basic indexes for evaluating boiler performance are the basis for improving efficiency. These indexes provide quantitative data to help identify problems and verify the improvement effect. Through regular measurement, enterprises can track changes and adjust strategies.

Combustion efficiency: this index evaluates the ratio of fuel to heat energy, and the ideal range is 75-89%. To upgrade, the air-fuel ratio can be optimized and excess air can be reduced to avoid heat loss. Testing the levels of oxygen and carbon monoxide in the exhaust gas can accurately guide the adjustment and ensure that the combustion is close to integrity.

Thermal efficiency: focus on the heat transfer performance of heat exchanger, which is affected by surface fouling. Removing scale and soot can restore 5-10% efficiency, and keeping the heat transfer surface clean is the core. Checking design parameters regularly can also help maintain peak performance.

Fuel-steam efficiency: as a comprehensive index, it calculates the overall efficiency from fuel input to steam output, with an average of 80-85%. This indicator integrates all losses and is used to evaluate the health of the system, and verifies the upgrade effect by comparing the data before and after.

Improving Boiler Thermal Efficiency Through Maintenance

It is a practical and low-cost method to improve the thermal efficiency of boilers through maintenance, which can bring 2-5% benefits. Maintenance focuses on preventing problems and ensuring long-term and efficient operation of the system.

Formulate preventive maintenance plan: establish daily, Zhou Du and monthly inspection system, including water level monitoring, burner inspection and safety valve test. This can reduce accidental failures and prolong the service life of equipment by 8-10 years. Regularly recording data is helpful for trend analysis and early detection of signs of efficiency decline.

Remove surface scale: the scale and soot on the inner and outer surfaces of the boiler will hinder heat conduction, and even a thin layer can reduce the efficiency by 10%. Use mechanical cleaning or chemicals, and choose the method according to the type of boiler. Annual professional cleaning can significantly restore performance and reduce fuel demand.

Regulating air supply: control excessive air to the lowest effective level to prevent heat from escaping with flue gas. Install oxygen sensor to realize automatic adjustment and improve combustion efficiency by 3%. Combined with burner adjustment, the air-fuel ratio is optimized.

Preheating combustion air: preheat intake air with waste heat equipment to reduce fuel consumption by 2-4%. This is especially effective in cold environment, and combined with flue gas recovery to form closed-loop optimization.

Water quality management: control dissolved solids through chemical treatment and automatic purging to prevent corrosion and scaling. Untreated water can reduce the efficiency by 15%, and regular water sample testing is the key.

Advanced Technology Solutions For Improving Efficiency

Advanced technology solutions can promote the thermal efficiency of boilers by more than 10%. These methods focus on heat recovery and automatic control to provide long-term returns.

Deploy economizer: install economizer in flue, recover heat from waste gas to preheat water supply, and increase it by 4-7%. This reduces the fuel demand, and the payback period is usually 2 years. Select the model matching the boiler to ensure compatibility.

Intelligent control system: real-time monitor parameters such as oxygen level and load, and dynamically adjust combustion. Adapt to the variable load scenario, and keep the efficiency stable over 84%. Integrated sensors improve safety and accuracy.

Oxygen optimization system: automatically fine-tune air input, reduce excessive air loss and save fuel by 5%. In high-emission industries, it can also reduce pollutants.

Strengthen thermal insulation: add efficient thermal insulation to boilers, pipelines and valves to reduce radiation and convection losses. High-quality materials perform well at extreme temperatures and have a short payback period.

Repair steam leakage: use infrared detection to check the leakage, seal the problem point and recover energy. Leakage can waste 5% of heat, and regular inspection can prevent accumulation.

Update parts: replace high-efficiency burner or upgrade to condensing boiler to recover more waste heat and increase it by 15%. Evaluate the current system and choose a compatible upgrade.

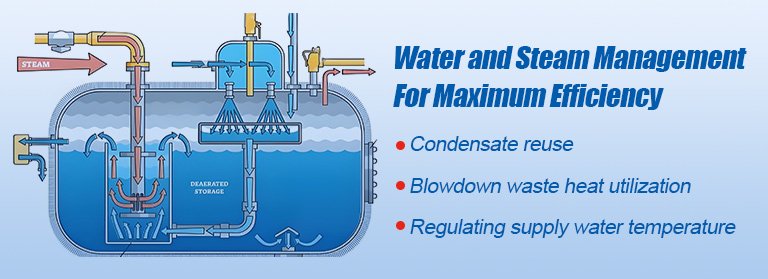

Water and Steam Management for Maximum Efficiency

Water and steam management is the key to improve the thermal efficiency of the boiler, which can save fuel up to 20%. These strategies emphasize resource recovery and reduce the need for heating and treatment.

Condensate reuse: steam condensate is collected and returned to the boiler, saving heating energy consumption and water treatment cost. Design matching pipe network to ensure purity to prevent corrosion. This can achieve a fuel saving of 20%.

Waste heat utilization of sewage discharge: extracting heat energy from boiler drainage to preheat inlet water, improving efficiency by 3-5%. Install heat exchanger and pay attention to water quality to avoid secondary problems.

Adjust water supply temperature: use deaerator to maintain proper temperature, reduce energy demand and prevent corrosion. After optimization, the efficiency can be increased by 2%, and the effect is better when combined with economizer.

Conclusion

Improving the thermal efficiency of boiler is a continuous process, which needs to be monitored and adjusted. Through the strategies in this paper-from maintenance to advanced technology-you can optimize performance and reduce cost and environmental impact. We suggest starting with an efficiency audit and identifying priorities. As a professional boiler manufacturer, EPCB provides you with professional advice. For a comprehensive evaluation, please refer to professional consultation.

FAQ

What is the optimum flue gas temperature for boiler efficiency?

The ideal flue gas temperature depends on the boiler design and fuel type, and is usually controlled at 200-300°F (about 93-149 C) to prevent condensation corrosion and minimize heat loss. Too high temperature will lead to a significant decline in efficiency; It is suggested to refer to the guidelines of DOE for optimization and adjustment.

What is the frequency of boiler preventive maintenance?

It is recommended to carry out comprehensive preventive maintenance at least once a year. For boilers with high intensity or continuous operation, the frequency should be increased to quarterly or monthly to cover cleaning, inspection and adjustment. Regular maintenance helps to find problems early, prevent unexpected failures and maintain system efficiency.

What is the role of economizer in improving efficiency?

Economizer is a kind of heat exchange device, which uses waste heat of flue gas to preheat feed water, thus reducing the energy input needed to generate steam, and usually improving the overall efficiency of the boiler by 4-7%. This helps to reduce fuel consumption and optimize the heat recovery process.

How does excess air affect efficiency?

Excessive air will increase the volume of flue gas and heat loss, leading to the reduction of boiler efficiency; For example, for every 15% increase in excess air, the efficiency may decrease by 1%. By optimizing the air-fuel ratio, this loss can be minimized, fuel can be saved and combustion performance can be improved.

What are the benefits of O2 pruning system?

O2 pruning system optimizes the air-fuel ratio by monitoring and adjusting the oxygen level in real time, thus reducing heat loss, improving combustion efficiency and reducing fuel consumption by 1-5%. In addition, it can reduce emissions and improve the safety and stability of boilers.

How to optimize the feed water temperature?

To optimize the feed water temperature, it needs to be preheated to 185-195°F (about 85-90 C) by economizer or heater to reduce the dissolved oxygen content and prevent corrosion. Ensure that the temperature is suitable for operating conditions; Too low will lead to an increase in heating demand, reduce efficiency and increase the risk of corrosion.

What is the effect of scale on efficiency?

Scale forms an insulating layer on the hot surface, which hinders heat transfer, resulting in a 20-25% decrease in efficiency and an increase in fuel consumption. Even a thin layer (such as 1/8 inch) will cause significant losses, and may also lead to overheating and boiler damage.

Can modern control systems improve efficiency?

Yes, modern control systems can optimize boiler efficiency by accurately monitoring and adjusting parameters such as combustion process and air-fuel ratio in real time, which can usually significantly reduce energy consumption and improve overall performance.
