Product Advantage

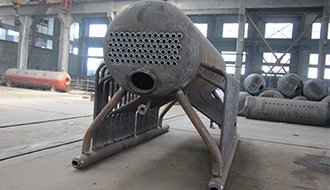

  • Multi-pass Structure of Coal Fired Steam Boiler

    The temperature rises faster and can be quickly applied to food production. We have designed more boiler return strokes within the limited coal-fired steam boiler volume. High temperature flue gas can exchange heat with water more times. The boiler has stronger heat absorption capacity.

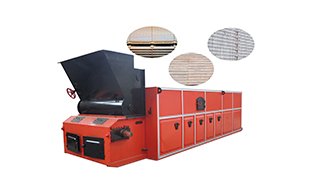

  • The Chain Grate of Coal Fired Steam Boiler

    Save fuel. We make the fuel burn more fully. The grate air ducts are evenly arranged, and the wind speed can be adjusted according to the fuel situation. Provide more reasonable air and fuel mixing, and fuel 100% combustion. And it won't let too much air take away the heat.

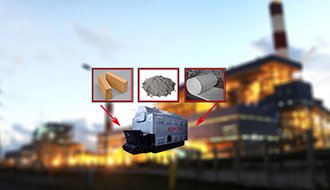

  • Refractory Material of Coal Fired Steam Boiler

    The energy-saving effect is better. Use better quality insulation materials and boiler wall materials to better ensure that high-temp flue gas-only exchanges heat with steam boiler water instead of air. At the same time, the water pipe in the boiler was protected to prevent it from being burnt out by high-temp flue gas.

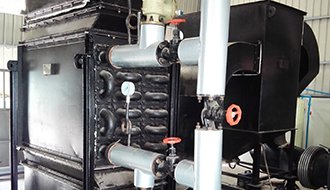

  • Economizer of Coal Fired Steam Boiler

    Save more fuel. Use the economizer of coal fired steam boiler, the heat in the exhaust gas is recovered, so that the heat that would otherwise be discharged into the air can be recycled again. Heating boiler feed water. This can make the boiler more efficient. This system can make the boiler's steam quality better.

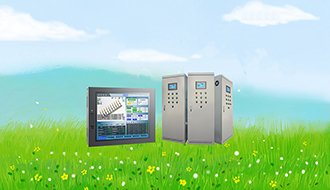

  • Electric Control of Coal Fired Steam Boiler

    The boiler is more simple and convenient to use. We will provide you with a suitable electronic control system based on the boiler operators in your local market, add automation programs to the electronic control, and use programming for some professional and complex operations.

Technical Parameters

Choose the right parameters and let us design a more suitable coal-fired steam boiler solution for your food factory. If you have no good ideas, you can contact us. Let us find a way together.

Item/Type

Coal Fired Steam Boiler for Food Factory

Rated capacity t/h

1

2

4

6

8

10

12

15

20

Rated steam pressure MPa

0.7/1.25

0.7/1.25/1.6

1.25/1.6

1.25/1.6

1.25/1.6

1.25/1.6

1.25/1.6

1.25/1.6

1.25/1.6

Rated steam temperature ℃

170/194

170/194/204

194/204

194/204

194/204

194/204

194/204

194/204

194/204

Feed water temperature ℃

20

Boiler thermal efficiency %

78.1

80.2

82.3

82.5

82.5

82.9

82.9

83.1

83.1

Body heating area m2

22.99

48.7

96.34

148.15

174.4

226.2

276

374.5

669

Fuel & consumption

Fuel type

Class II Soft Coal, Biomass, Wood Chips, Wood Pellets,
Rice Husk, Palm Kernel Shell, etc.

Coal kg/h

118.76

231.30

450.79

674.54

899.39

1118.81

1342.57

1674.18

2232.23

Biomass kg/h

171.63

334.27

651.48

974.85

1299.81

1616.92

1940.30

2419.54

3226.05

Size of boiler largest parts
 mm

Length

4600

5800

6700

7000

7300

7600

7600

8500

9500

Width

1900

2600

2700

3000

3000

3200

3200

3400

3800

Height

2900

3500

3500

3500

3500

3500

3500

3500

7100

Weight of boiler
largest parts ton

18

22

30.1

40

21/14

23/17

23/19

21/24

25/24


No.

Item

Example/Issuer

Qty

Unit

1

Boiler Drawings

General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing.

1

Set

2

Boiler Quality Certificate

Issued by the boiler inspection department of China government.

1

Set

3

Certificate of Origin

Such as CO, Form E, Form F, Form A, etc.

1

Set

4

Boiler Thermodynamic Calculation Book

Issued by the boiler supplier.

1

Set

5

Boiler Strength Calculation Book

Issued by the boiler supplier.

1

Set

6

Installation & Operation Instruction

Issued by the boiler supplier.

1

Set


Auxiliaries
