Capacity: 15~160×104Kcal/h
Pressure: 0.8-1.1MPa
Fuel: Wood, Charcoal, Waste Fabric, Sawdust, Palm Shell, Coconut Shell, Corncob, etc.
Application: Petrochemical Industry, Grease Industry, Synthetic Fiber Industry, Textile Printing and Dyeing Industry, Plastics and Rubber Industry, Building Materials Industry…

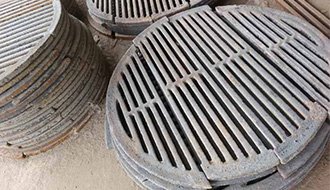

The series of biomass fired hot oil boilers adopt fixed grate as the combustion equipment, flue gas flows three-pass, with reasonable heating surface layout, good heat transfer effect, high efficiency, stable and sufficient output.

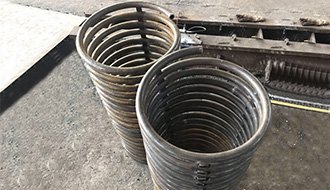

Boiler has large diameter combustion chamber, which is composed of vertical large diameter coil pipes, coil pipes in series or in parallel. The combustion space is sufficient, combustion is more complete and thermal efficiency is higher.

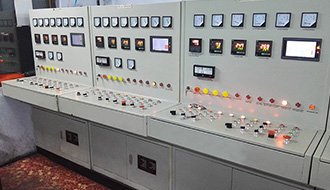

The boiler system has perfect automatic control measures, accurate oil temperature control, there are multiple control and protection for oil temperature, pressure and flue gas over-temperature setting, ensure safe and reliable operation of the hot oil system.

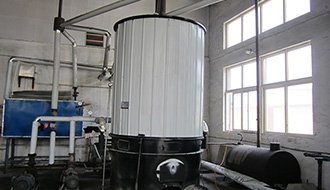

The boiler leaves the factory in the form of fast-assembled, the installation period is short, and it is equipped with high quality special instruments and valves for thermal oil boilers, which have good sealing, accurate measurement, stability and reliability, and long service life.

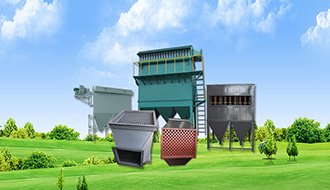

In order to meet the requirements of environmental protection and energy saving, we have equipped with efficient dust removal and energy saving equipment for users, such as multi-tube dust collector, air preheater, etc., which greatly reduces the exhaust temperature and heat loss.
Find the capacity of the biomass fired thermal oil boiler systems you want and check other parameters of the boiler as a reference.
Item/Type | Vertical Fixed Grate Biomass Fired Thermal Oil Boiler | ||||||||||
Rated thermal power | kw | 180 | 300 | 350 | 460 | 700 | 1000 | 1200 | 1400 | 1600 | 1900 |
×104(Kcal/h) | 15 | 25 | 30 | 40 | 60 | 80 | 80 | 120 | 140 | 160 | |
Boiler thermal efficiency % | 73 | 73 | 73 | 73 | 76 | 76 | 76 | 76 | 78 | 78 | |
Design pressure MPa | 1.1 | ||||||||||
Max. working temperature ℃ | 320 | ||||||||||
Medium circulation flow m3/h | 12.5 | 40 | 40 | 60 | 80 | 100 | 100 | 100 | 100 | 160 | |
Main pipe diameter DN | 40 | 80 | 80 | 100 | 100 | 125 | 125 | 125 | 125 | 150 | |
Installation capacity kw | 8.5 | 15 | 18/15 | 24/20 | 28/25 | 45/40 | 53/48 | 60/55 | 60 | 80/73 | |
Fuel type | Wood, Charcoal, Waste Fabric, Sawdust, Palm Shell, Coconut Shell, Corncob, etc. | ||||||||||
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
