Product Advantage

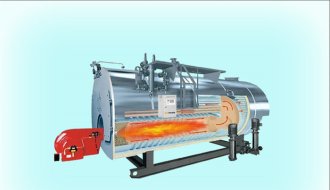

  • Three-pass boiler system for sugar industry

    The steam boiler system with oil as fuel will make corresponding structural adjustment according to the oil characteristics to maximize the heat released by the fuel for food production. In order to reduce the cost of raw material procurement for the whole factory, the finished product will also be reduced. Your competitiveness in your industry increases.

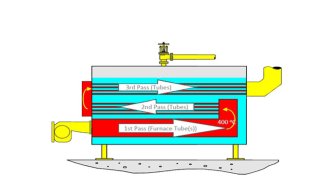

  • Three-pass oil-fired steam boiler

    The boiler with the same capacity only needs less fuel and can operate normally. By optimizing the whole system composition and the internal structure of the boiler, the fourth generation and third return structure enables the high temperature flue gas and water to fully reduce the smoke exhaust temperature, and the boiler produces steam faster. Can be more stable supply factory production.

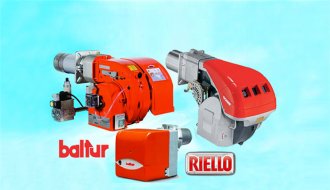

  • Oil Steam boiler burner system

    Optimize the combustion system according to the fuel characteristics. Air is less abundant when ensuring that the fuel is fully burned. Prevent heat from the fuel is exported to the air without heat exchange with the boiler, which causes a lot of fuel waste. Use a world class brand combustion system to prevent this.

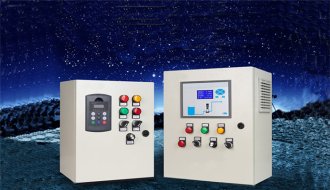

  • The sugar industry steam boiler control system.

    Depending on the production process of different products, we will recombine the whole boiler system composition and optimize the control system. Let the entire fuel-steam boiler system run more to the plant heat, and the fuel will be more regular. Save you more fuel from all directions.

  • Professional services in the food industry

    We provide professional and comprehensive boiler technical support for every EPCB boiler user. We have been engaged in boiler solution design in the sugar industry for more than 10 years, and thousands of enterprises have used our boiler systems. The boiler system fits better with your factory production. Combined with the perfect after-sales service, to help you better run the boiler system.

Technical Parameters

We will recommend your Oil Steam Boiler for Food Industry Three Pass Fuel Saving boiler system model according to your actual needs. Of course we can provide you with comprehensive technical support.

Item/Type

Oil Steam Boiler for Food Industry

Rated capacity t/h

0.5

1

1.5

2

3

4

5

6

8

10

15

20

Rated steam pressure MPa

0.7/1.0/1.25/1.6

Rated steam temperature ℃

170/184/194/204

Boiler thermal efficiency %

91.2

91.8

91.7

92.4

92.55

92.6

92.5

92.9

93.1

93.4

93.5

93.7

Body heating area m2

Boiler body

13.05

21.15

33.14

45.1

67.87

80.37

110.5

140.13

194.27

142.3

218.5

275.3

Economizer

10.4

18.6

20.4

26.1

30.4

43.41

46.5

57.1

74.4

112.6

155

225.5

Boiler water volume m3

1.19

2.49

3.96

5.6

6.25

7.54

8.9

8.5

13.9

19.5

24.5

31.5

Flue diameter mm

φ250

φ350

φ380

φ420

φ450

φ520

750×410

800×410

940×520

850×500

1200×600

1500×600

Water inlet diameter DN

25

40

40

40

40

50

50

50

50

50

65

80

Main steam valve diameter DN

50

65/25

65/40

80/40

100/40

100/40

125/40

125/40

150/40

150/40

200/50

200/65

Safety valve diameter DN

40

50

2×40

2×40

2×40

50+40

2×50

2×65

2×65

2×80

2×100

2×100

Blowdown diameter DN

40

40

40

40

40

40

40

40

40

2×50

2×50

2×50

Fuel consumption

Diesel kg/h

30.03

59.70

89.65

118.63

177.65

236.74

296.25

353.97

470.95

586.79

879.25

1169.83

Natural gas Nm³/h

36.72

73.01

109.63

145.07

217.25

289.51

362.28

432.40

573.44

717.57

1075.21

1430.55

Largest transportation size

Length mm

2550

3100

3750

3660

4600

4900

5250

5850

6500

6240

8500

9200

Width mm

1450

2200

1950

2700

2200

2300

2350

2400

2600

2850

3500

3950

Height mm

1740

2200

2250

2630

2500

2650

2680

2700

2850

3100

4000

4350

Largest transportation weight kg

2300

3600

4400

5300

8000

8700

11200

12500

17800

22000

32500

40500



No.

Item

Example/Issuer

Qty

Unit

1

Boiler Drawings

General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing.

1

Set

2

Boiler Quality Certificate

Issued by the boiler inspection department of China government.

1

Set

3

Certificate of Origin

Such as CO, Form E, Form F, Form A, etc.

1

Set

4

Boiler Thermodynamic Calculation Book

Issued by the boiler supplier.

1

Set

5

Boiler Strength Calculation Book

Issued by the boiler supplier.

1

Set

6

Installation & Operation Instruction

Issued by the boiler supplier.

1

Set
