Low NOx Steam Boilers: How They Cut Emissions and How to Choose the Right One

A low NOx steam boiler is an industrial steam boiler built to keep nitrogen oxide (NOx) emissions low. It does this by controlling combustion so peak flame temperature and oxygen exposure stay down, instead of cleaning the flue gas after the fact. On natural gas, that usually means the single-digit to low-tens-of-ppm range, depending on the technology. How low a given unit reaches also depends on the fuel, the boiler and burner design, and the load range it runs across. The target itself is set by your local air authority. So the real question is rarely how low a boiler can go. It is how low your site actually needs it to.

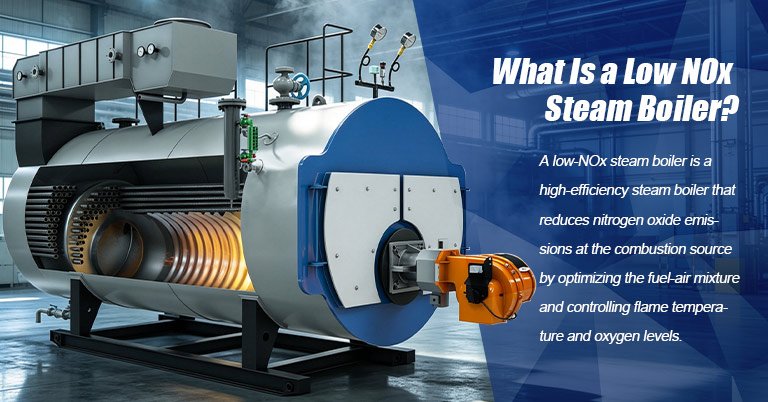

What Is a Low NOx Steam Boiler?

A low NOx steam boiler produces the same steam as a conventional one but burns fuel differently, holding flame temperature and oxygen down so that less NOx forms for a given steam output. NOx forms during combustion, when nitrogen and oxygen react at high temperature. A conventional boiler does little to limit that reaction. A low NOx boiler is built to suppress it. EPCB designs this control into its low nitrogen oil/gas boilers rather than bolting it on afterward.

The key distinction is where the reduction happens. Low NOx boilers cut emissions at the source, inside the flame, by reshaping how fuel and air mix and burn. That is different from post-combustion cleanup, which treats the exhaust after NOx has already formed. Most of that source-level control lives in the burner. But the boiler around it matters too: the furnace, the heat-transfer surface, and the controls all have to suit the burner. Otherwise the rated emission number will not hold up in the field.

Low NOx Boiler, Low NOx Burner, or Ultra-Low NOx: What Are You Actually Buying?

Low NOx boiler, low NOx burner, and ultra-low NOx describe three different things: the complete steam-generating package, one subsystem inside it, and an emission tier that can apply to either. Keeping them straight changes what goes into a specification. The word on the quote is not always the thing that sets your emission number.

A low NOx burner is the component that shapes the flame. It is where most of the emission control lives. A low NOx boiler is the whole package: the pressure vessel, the burner, the control system, and a furnace sized to match the burner's flame. This matching of furnace to burner is a core part of industrial steam boiler design, not an afterthought. Ultra-low NOx is not a separate machine but a tighter emission tier, usually single-digit ppm. Reaching it means pushing flue gas recirculation and staging harder, or adding controls downstream.

The distinction matters because you buy a boiler, but the NOx number lives with the burner and with how well the furnace fits its flame. When a low NOx burner goes into a furnace that was never matched to its flame envelope, the flame can hit the rear wall, or the unit can miss its rated NOx at startup. Some low-NOx burners make longer flames that need more furnace volume. Others use compact premixed or surface-combustion designs. Either way, the burner and furnace have to match, and a mismatch shows up at startup. That is why we specify the burner, furnace dimensions, and controls together instead of sourcing them as separate line items.

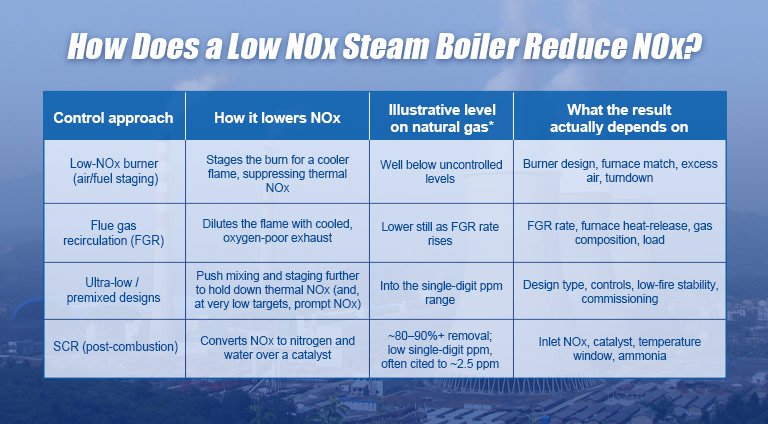

How Does a Low NOx Steam Boiler Reduce NOx?

A low NOx steam boiler lowers emissions by attacking the two conditions behind most NOx: a high peak flame temperature and oxygen in the hottest part of the flame. It uses combustion-side methods first, and post-combustion cleanup only when the limit demands it. On natural gas, the main form is thermal NOx, driven by flame temperature. Fuel-bound NOx comes from nitrogen in the fuel itself; it is minor on clean gas but larger on heavier oils. Prompt NOx matters mainly at very low targets.

Combustion-side methods do most of the work. Low-NOx burners stage the burn: they split fuel and air delivery so the flame runs cooler, which lowers both peak temperature and oxygen overlap. Flue gas recirculation (FGR) sends cooled, oxygen-poor exhaust back into the combustion air, cooling and diluting the flame further. When combustion control alone cannot meet a tight limit, selective catalytic reduction (SCR) is added downstream. It converts NOx into nitrogen and water over a catalyst.

For scale, look at the U.S. EPA's AP-42 emission factors for small natural-gas boilers below 100 MMBtu/hr. On average, they list NOx at about 100 lb per million standard cubic feet of gas for an uncontrolled unit, about 50 with a low-NOx burner, and about 32 with a low-NOx burner plus FGR. These are average inventory factors, not equipment guarantees or permit limits, and they carry EPA's own data-quality caveats. Note too that they are given as a mass per volume of gas, not as ppm. Converting them to ppm takes assumptions about oxygen correction and moisture basis. That is one reason a vendor's ppm figure only means something once you know its reference conditions.

Illustrative capability, not a permit limit or guarantee. Actual emissions depend on the specific unit, fuel, load, and reference conditions and must be confirmed with the manufacturer. Uncontrolled and controlled emission-factor context draws on EPA AP-42 Section 1.4.

What NOx Level Do You Actually Need?

The NOx level you must meet is set by where the boiler runs and how much fuel it burns, not by the lowest number a vendor can advertise. A plant in a strict air district may need single-digit ppm; the same boiler elsewhere may comply at 30 ppm. In the United States, federal rules depend on boiler size, fuel, design, and build or modification date. Units above 100 MMBtu/hr may fall under 40 CFR Part 60 Subpart Db, which sets NOx standards for gas-, oil-, and coal-fired steam generators. Units from 10 to 100 MMBtu/hr fall under Subpart Dc. Smaller or older units are often governed mainly by state, local, or permit-specific rules.

State and local districts can be far stricter than the federal floor. California's South Coast district is the well-known case. Its Rule 1146 series covers industrial, institutional, and commercial boilers, steam generators, and process heaters at or above 5 MMBtu/hr. Under its 2018 amendments, NOx limits run from roughly 5 to 40 ppm at 3% oxygen, depending on unit size and fuel. Many firetube boilers sit at 7 ppm, and various other units at 9 ppm. The 1146 rules keep changing, and a move toward zero-emission standards is underway. So check the current rule and your permit conditions before you specify equipment.

Units matter as much as the number. A limit may be written in ppm, usually corrected to a reference oxygen level such as 3%. That 3% basis is common for U.S. gas boilers but not universal. A limit may instead be a mass rate, such as mg/Nm³ or lb/MMBtu. Never compare a ppm, a mg/Nm³, and a lb/MMBtu figure unless four things line up: the reference oxygen, the moisture basis, the averaging period, and whether NOx is counted as NO₂. Line up a number from one reference condition against a permit written at another, and you have a common way to spec the wrong unit.

There is also a margin worth building in. Treat the permit limit as a ceiling the equipment must stay under, not a number you raise for convenience. The supplier's guaranteed value should sit below that ceiling. Define its margin at the stated fuel, load range, oxygen correction, ambient conditions, and test method. Write the purchase spec at the exact permit number, and operators have no room to tune before the unit drifts out of compliance on load swings.

Emissions Are Only One Part of a Compliant Boiler Spec

Meeting a NOx limit is only one of several requirements a steam boiler has to satisfy. The construction and safety codes are separate from the emissions rule. In the U.S., depending on boiler type, capacity, fuel, and the authority having jurisdiction, a project may need to confirm several: ASME BPVC Section I (constructing power boilers that make steam above 15 psig); ASME CSD-1 (controls and safety devices for automatically fired boilers); NFPA 85 (combustion-system and explosion or implosion safety, for units at or above 12.5 MMBtu/hr); and ANSI/CAN/UL 795 (listing of commercial-industrial gas-fired package boilers). Outside the U.S., frameworks like the European PED, Canada's CSA B51, and National Board registration may apply instead or as well. Which of these are mandatory depends on the jurisdiction, so confirm the applicable set early. An emission number alone does not make a boiler code-compliant.

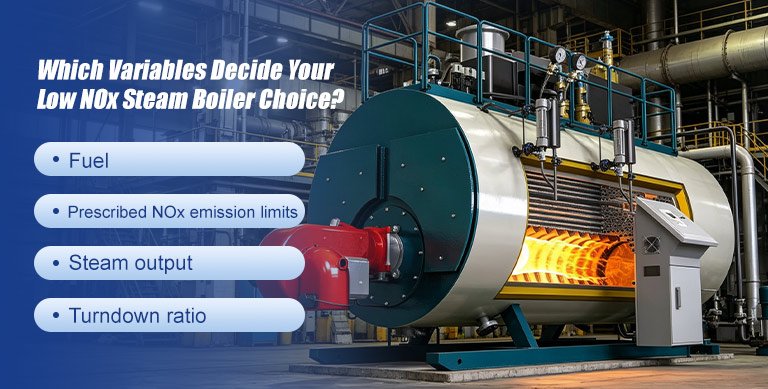

Which Variables Decide Your Low NOx Steam Boiler Choice?

Four variables decide a low NOx steam boiler choice: fuel, required NOx limit, steam capacity, and turndown. You match those to a burner-and-furnace combination, not to the downstream piping or feedwater treatment. A mechanical contractor scopes those as a separate engineering step. Keeping that boundary clear stops a selection conversation from sliding into a plant-design one.

Of the four, two should be pinned down first, because they shape everything else. The NOx limit comes first. It decides whether staging alone is enough or whether you need FGR or SCR. That one decision then drives furnace length, fan sizing, control complexity, cost, and footprint. Fuel comes second. Fuel-bound nitrogen can raise the achievable NOx floor, most of all with residual oils, some waste fuels, and nitrogen-rich biomass. That is why a fuel analysis belongs in the inputs, rather than being assumed. Capacity and turndown still matter, but you size them around the emission-and-fuel envelope, not the other way round. Guarantees are often quoted over a set turndown, such as 4:1, so the range you actually run across belongs in the spec. When the governing limit is unclear, we check the target against the local air-district rule before sizing anything. Everything downstream depends on it.

A vendor has little reason to say so. But if your permit sits at a moderate limit and you burn clean natural gas, a well-tuned low NOx burner with modest FGR usually covers it. You do not need an ultra-low package or an SCR system to comply. Paying for one buys margin you may never use. Ultra-low and post-combustion controls earn their cost only when the permit truly demands single-digit ppm.

Getting Your Low NOx Steam Boiler Specification Right

The costliest way to get this wrong is to buy to a ppm headline instead of to your real permit. That leads one of two ways: overspending on an ultra-low or SCR system you do not need, or under-specifying a burner that cannot hold its limit once it meets a real furnace. The fix is simple. Start from the emission target your air authority sets, confirm your fuel, and let those two decide how much combustion control the boiler needs.

The NOx guarantee, the furnace match, and the control package decide whether a unit passes its commissioning test. All three depend on details that firm up only at the project level: fuel analysis, load profile, and the governing air-district rule. Size the boiler from those inputs, not a generic model number, and build in a compliance cushion so operators are not fighting the permit on day one.

Before requesting a quote, having these details ready lets a manufacturer size the right unit the first time instead of guessing:

· Required steam output and operating pressure, across normal, peak, and standby demand

· Design pressure and feedwater temperature

· Fuel type or types, with a fuel analysis where available (nitrogen and sulfur for oil or biomass; heating value and supply pressure for gas)

· Permitted or target NOx limit, with its unit and reference conditions (ppm at a stated % O₂, mg/Nm³, or lb/MMBtu, and the averaging period)

· Any CO, VOC, or ammonia-slip limits that apply alongside NOx

· Required turndown while still holding both NOx and CO

· Ambient temperature and site elevation

· Burner-management and flame-safeguard requirements, and the expected source-test method

· New installation or retrofit, and for a retrofit, existing furnace dimensions and stack backpressure

If you can gather those numbers, our engineering team can check them against the limit and suggest a configuration. That parameter review catches mismatches before they reach the boiler room. As Industrial Boiler Manufacturers with CE, ASME, EAC, and GB-certified boilers, EPCB can size the right unit from those inputs. Send the details above when you are ready.

FAQ

What is the difference between a low NOx and an ultra-low NOx steam boiler?

They are the same kind of boiler set to different emission tiers, so the question that matters is which tier your permit requires. Standard low NOx suits moderate limits. Ultra-low NOx only earns its extra hardware and cost where the rule pushes into single digits. As a rough orientation, natural-gas units are often specced around the tens of ppm for standard low NOx and near 5 to 9 ppm for ultra-low, but your local limit settles it.

How is a boiler's NOx level measured and verified?

NOx is confirmed by a stack test, where a certified reference method samples the flue gas at a set reference oxygen level, usually 3% for gas units. Tighter permits may also require a continuous emissions monitoring system (CEMS) that tracks NOx during normal operation. A manufacturer's guarantee is a design figure, while the permit is proven by the actual test. That is why the test method and test loads belong in the specification, not just the target number.

Can a low NOx steam boiler run on more than one fuel?

Yes. Many are set up as dual-fuel, for example natural gas with backup oil. Switching fuels changes the NOx picture, though, and usually calls for burner tuning, control changes, and sometimes new hardware. Heavier oils carry more fuel-bound nitrogen than gas, so the same boiler tends to show higher NOx on oil. Solid-fuel units, such as a low-NOx biomass steam boiler, manage emissions differently again, through staged combustion and flue-gas treatment matched to the fuel.

Does a low NOx steam boiler cost more to run, or does it save fuel?

It can go either way, depending on how the NOx is being cut. Efficient combustion at low excess air can lower fuel use. But heavy external FGR adds fan load and can trim efficiency, and pushing NOx very low can raise carbon monoxide at low loads if the burner is not well tuned. The net result comes down to the control method, your load profile, and tuning, all of which feed into overall fuel-to-steam efficiency.

Should I retrofit my existing boiler or buy a new low NOx steam boiler?

Retrofitting an existing boiler with a low NOx burner is often possible, and a gas-fired steam boiler retrofit is best scoped with the original boiler manufacturer. A retrofit has to check burner throat dimensions, furnace heat-release rate, flame envelope, rear-wall clearance, pressure drop, turndown, and low-fire stability. When the required NOx is very low, or the furnace cannot support the burner's flame, a purpose-built low NOx steam boiler is usually more reliable than forcing an aggressive burner into an unsuitable furnace.
