Product Advantage

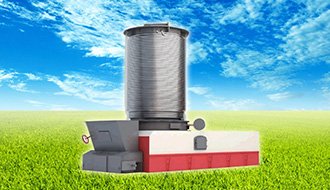

  • Thermal-Oil-Boiler-Coil-Pipe  热油锅炉盘管

    The heating surface of the boiler body adopts densely arranged coil structure, which consists of inner, middle and outer multi-layer circular coils. The flue gas is S-shaped flow, multi-pass heat transfer, with high heat transfer coefficient and high thermal efficiency.

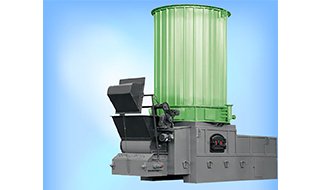

  • Boiler-Coal-Feeder   锅炉给煤机

    The boiler has its own new type coal feeder, and the fuel automatically enters the furnace to ensure the uninterrupted supply of coal. Feeding coal automatically and removing slag automatically, lower labor intensity, saving labor costs for enterprises.

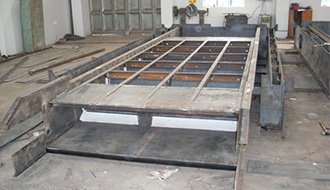

  • Boiler-Grate-Independent-Air-Chamber  锅炉炉排独立风室

    The grate of thermal oil boilers adopts independent air chamber, air flow is adjusted independently, so that coal combustion is more fully, and the boiler system does not emit black smoke, the environmental protection effect is good and it can save more fuel costs.

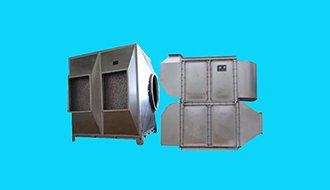

  • Thermal-Oil-Boiler-Air-Preheater  热油锅炉空气预热器

    A high efficiency air preheater is installed at the tail of the boiler to absorb the heat of the flue gas from the tail of the boiler and preheat air, so as to reduce the temperature of the flue gas and heat loss, further improve the thermal efficiency of the boiler.

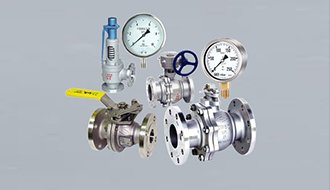

  • Thermal-Oil-Boiler-Valves-Instruments  热油锅炉阀门仪表

    The boiler leaves the factory in the form of fast-assembled, the installation period is short, and it is equipped with high quality special instruments and valves for thermal oil boilers, which have good sealing, accurate measurement,stability and reliability, and long service life.

Technical Parameters

Find the capacity of the coal fired thermal oil boiler you want and check other parameters of the boiler as a reference.

Item/Type

Coal Fired Thermal Oil Boiler

Rated thermal power

kw

180

300

350

460

700

1000

1200

1400

1600

1900

×104(Kcal/h)

15

25

30

40

60

80

80

120

140

160

Boiler thermal efficiency %

73

73

73

73

76

76

76

76

78

78

Design pressure MPa

1.1

Max. working temperature ℃

320

Medium circulation flow m3/h

12.5

40

40

60

80

100

100

100

100

160

Main pipe diameter DN

40

80

80

100

100

125

125

125

125

150

Installation capacity kw

8.5

15

18/15

24/20

28/25

45/40

53/48

60/55

60

80/73

Fuel type

Bituminous Coal, Soft Coal, Anthracite, Lignite, Poor Coal, etc.


No.

Item

Example/Issuer

Qty

Unit

1

Boiler Drawings

General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing.

1

Set

2

Boiler Quality Certificate

Issued by the boiler inspection department of China government.

1

Set

3

Certificate of Origin

Such as CO, Form E, Form F, Form A, etc.

1

Set

4

Boiler Thermodynamic Calculation Book

Issued by the boiler supplier.

1

Set

5

Boiler Strength Calculation Book

Issued by the boiler supplier.

1

Set

6

Installation & Operation Instruction

Issued by the boiler supplier.

1

Set


Auxiliaries
