Common Boiler Feed Pump Problems: Symptoms, Root Causes, and How to Verify the Real Fault

A boiler feed pump rarely fails at random. The warning signs — vibration, noise, a falling boiler water level, a tripped motor — show up well before a breakdown, but each sign can come from several different root causes that need different fixes. Replacing a pump that "sounds worn" without confirming why it sounds worn is how plants end up replacing it again a few months later.

The sections below cover the feed pump faults that recur on industrial boilers, how to separate each fault from its symptoms, and what to confirm before spending money on parts or a new unit. One note before any of it: feed pump troubleshooting should happen only after the system is isolated, depressurized where required, and locked out per site procedure. High-temperature feedwater, pressurized lines, rotating couplings, and live electrical controls all carry real hazards.

Reading the symptoms: why identical warning signs have different causes

A feed pump's warning signs — vibration, noise, falling boiler water level, or a tripped motor — usually trace back to a small set of root causes, and which one applies depends on where in the system the fault originates. The same vibration can mean cavitation on the suction side, a worn bearing inside the pump, or shaft misalignment at the coupling. Acting on the symptom alone treats all three the same, which is why the fix often does not hold.

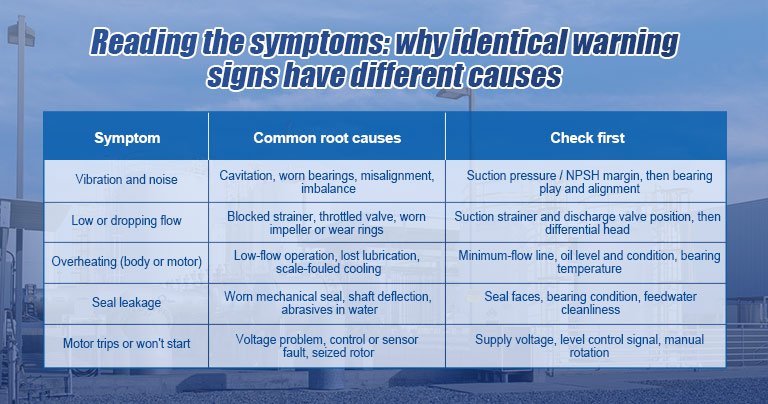

In the boiler systems we commission and service, the suction side — deaerator level, booster pressure, a partly clogged strainer — is more often the culprit than the pump internals, yet it tends to be the last thing a maintenance team checks. The table below maps each common symptom to its likely causes and the cheapest check that narrows the list.

A symptom points to a list, not a single answer. The check in the right-hand column is what turns the list into a diagnosis.

Cavitation: a suction problem, not a pump defect

Cavitation in a boiler feed pump is a suction-side problem rather than a fault in the pump body, and whether it happens depends on the available NPSH at the inlet versus what the pump requires. When vapor bubbles form in the low-pressure region at the impeller eye and then collapse, they pit the impeller, raise noise and vibration, and erode performance over time. The damage appears on the pump, but the cause lives upstream.

Feedwater makes this harder than most services. Water leaving a deaerator sits close to its boiling point, so it has little margin before it flashes to vapor. A dropping deaerator level, a fouled suction line, a clogged strainer, or a booster pump that is not holding pressure can each push the inlet below the required NPSH. A deaerator pressure transient can do the same briefly, even when steady-state conditions look fine. The Hydraulic Institute's NPSH-margin guidance (ANSI/HI 9.6.1) sets a clear principle: available NPSH must stay above the pump's required NPSH by a margin. That margin depends on the pump and the application, so confirm it against the pump curve rather than assume it. Restore suction margin before replacing the impeller, or the new one cavitates the same way.

Low flow or no flow: blockage, valve, or worn impeller

Low or no flow from a feed pump points to a restriction or to internal wear somewhere between the suction source and the discharge, and the likely location depends on whether flow fell gradually or all at once. A sudden loss usually means something mechanical changed: a valve drifted shut, an air pocket broke prime, or debris lodged in the suction. A gradual decline more often means wear — eroded impeller vanes or opened-up wear-ring clearances that let water recirculate inside the pump instead of moving forward.

Rule out the cheap causes first. Confirm the suction and discharge valves are fully open, check the strainer for debris, and verify the pump is primed and vented. If flow stays low with a clear path, the loss is internal, and the value to measure is differential head at a known flow. A pump that no longer makes its rated head at rated flow has worn internals and needs an overhaul, not another inspection.

Overheating, bearing wear, and seal leakage

Overheating, bearing wear, and seal leakage are linked failures, and which one shows first depends on lubrication condition, alignment, and feedwater temperature. A pump body that runs hot is often signaling operation at very low or no flow, where the energy going into the water has nowhere to go and heats the casing. This is why the minimum-flow recirculation line matters so much on feed pumps: the pump should never run for long against a closed or nearly closed discharge, and the recirculation line or automatic recirculation valve should be checked against the manufacturer's required minimum continuous flow.

From there the chain is short. Bearings fail from lost lubrication, contaminated oil, or misalignment that loads them beyond design — a variable (oil condition, coupling alignment) leads to an impact (bearing temperature climbs) and an action (correct the oil, recheck alignment cold and hot). Seals follow the same logic, since mechanical seal faces wear quickly when the feedwater carries abrasives or when shaft deflection from a worn bearing breaks the seal film. A weeping seal swapped without addressing the bearing or the water behind it will weep again. There is no universal alarm number for bearing temperature here; judge it against the pump manufacturer's IOM and the unit's own healthy baseline.

Electrical and control faults: when the pump is not the first suspect

A feed pump that will not start or runs at the wrong time is often a control-side fault rather than a pump fault, and the distinction depends on whether the pump is mechanically free and being called to run. Before opening the pump, confirm the basics: supply voltage within range, the motor starter and overload relay healthy, and — on a variable-speed unit — no drive fault locking it out. A pump that hums but will not turn, or trips its overload immediately, points to an electrical or seized-rotor problem, not a worn impeller.

Just as often the pump is fine and the system is not asking it to run correctly. A level controller, float switch, or low-water-cutoff that has drifted or fouled can leave the boiler calling for water that never comes, or cycling the pump when it shouldn't. A check valve stuck shut starves the boiler; stuck open lets water drain back and the level wander. These look like a pump problem, which is why the control signal and the check valve are worth confirming before the pump takes the blame.

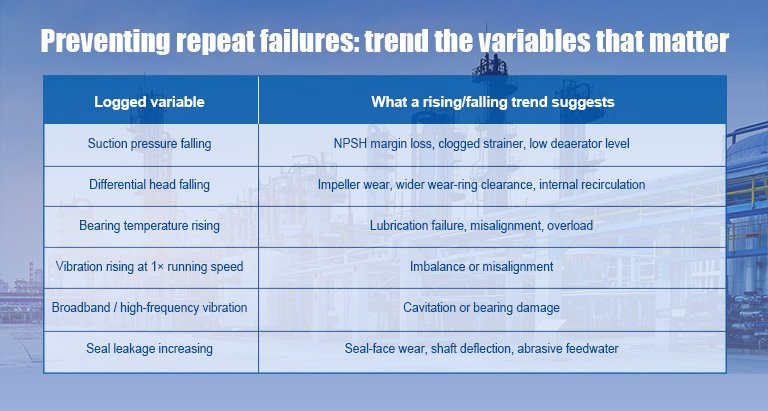

Preventing repeat failures: trend the variables that matter

Repeat feed pump failures usually come from leaving the original root cause unconfirmed, so prevention is less about swapping parts more often and more about folding the pump into routine boiler maintenance tied to operating variables. Log suction pressure, discharge pressure (or differential head), bearing temperature, vibration, and seal condition at a regular interval, and read each against the value recorded when the pump was healthy. Vibration is most useful compared to that per-pump baseline rather than a generic limit. The pump manufacturer's vibration values or a general machine-vibration standard such as ISO 20816 give the reference, but the trend off each pump's own baseline is what gives early warning.

One boundary belongs here. If a pump was undersized or the wrong type for the duty from the start, or is being run far outside its best-efficiency range (the allowable operating region set out in guidance like ANSI/HI 9.6.3), no maintenance routine will fully settle the problems, because the issue is selection rather than condition. That calls for a sizing and duty-point review, which is a separate exercise from the fault-finding above. For a correctly specified, installed pump, the recurring causes are nearly always upstream conditions, lubrication, alignment, and feedwater cleanliness, and every one of those is something you can measure.

Bringing the feed pump diagnosis together

Sound feed pump troubleshooting comes down to three moves: read the symptom, separate the possible root causes, and confirm the real one before acting. Vibration, low flow, overheating, and leaks each map to more than one cause, and the cause — not the symptom — decides whether you adjust the suction side, restore lubrication, correct alignment, check the control loop, or overhaul internals.

In the boiler plants we design and support, we treat the suction condition and the verification step as part of commissioning rather than an afterthought, because a pump confirmed against its NPSH, flow, and temperature targets at start-up gives far less trouble later. Several of the figures here — exact NPSH margin, minimum-flow setting, vibration and bearing-temperature limits, feedwater limits — are specific to your boiler and pump and should be confirmed against the actual installation rather than a generic number.

If feed pump problems keep returning on your system, the most useful next step is a focused review of the suction conditions, the duty point, and the maintenance history before the next part is ordered. As an industrial boiler manufacturer, we can review your feed pump and boiler system against their operating requirements and help confirm where the real fault sits. Send the pump curve, the duty point (flow and head), deaerator and suction pressure, feedwater temperature, and the symptoms you are seeing, and we can help point the diagnosis in the right direction.

FAQ

What usually causes recurring boiler feed pump problems?

Recurring problems often begin on the suction side — inadequate NPSH, a low deaerator level, a suction restriction, or unstable booster pressure — which then shows up as cavitation, seal, and impeller damage. Bearing trouble from poor lubrication or misalignment is the other frequent thread. The actual cause should still be verified against the pump curve and site data rather than assumed.

Why does my feed pump vibrate?

Vibration most often comes from cavitation, worn bearings, or shaft misalignment, and the three are told apart by where else the symptoms point. Cavitation adds a gravelly noise and tracks with low suction pressure, bearing wear adds heat, and misalignment usually appears right after a coupling or motor was disturbed.

Why is my boiler feed pump running but not delivering water?

A pump that runs without delivering water has either lost prime, has a closed or stuck valve, or has internal wear that lets water recirculate instead of advancing. Check prime, venting, and valve positions first, since those are quick to confirm before opening the pump.

What happens if a boiler feed pump runs below its minimum flow?

Running below minimum continuous flow lets the pump heat its own water, which drives overheating, accelerated wear, and in some cases low-flow cavitation. A working minimum-flow or automatic recirculation line prevents it, and that line should be checked against the manufacturer's required minimum flow for the pump.

How often should a boiler feed pump be inspected?

Routine inspection on a regular schedule, backed by monitoring of pressure, temperature, and vibration, catches most problems before they force a shutdown. The right interval depends on duty, water quality, and how hard the pump is run, so treat any fixed figure as a starting point to adjust against your own trend data.

Can poor feedwater quality damage the pump?

Poor feedwater quality damages feed pumps through abrasive wear on impellers and seals and through scale that fouls clearances and cooling paths. Water chemistry belongs to the boiler's water-treatment program rather than the pump, but its effect on pump life is direct, which is why seal and impeller wear should be read alongside feedwater condition.
