Types of Boiler Valves

Boiler valves are key parts in industrial steam and hot water systems. They control flow, pressure, and temperature. This ensures safe and efficient work. These devices stop overpressure and allow for safe maintenance. They also protect against backflow. This improves system reliability. This guide covers the main types of boiler valves. We will look at their uses and how to choose them for specific jobs.

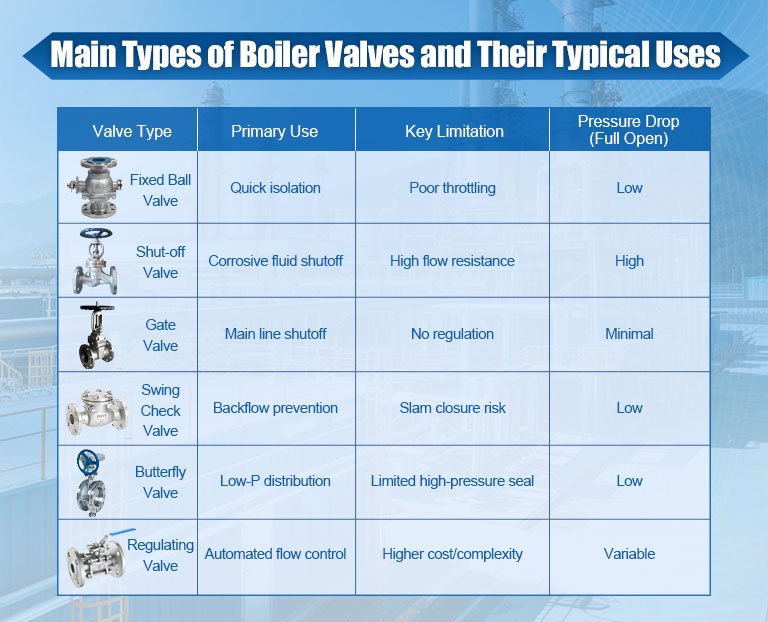

Main Types of Boiler Valves and Their Typical Uses

This section explains the main boiler valve types. It highlights their designs and roles in a boiler system. This makes them easy to identify.

Fixed Ball Valve

A fixed ball valve is a quarter-turn device. It has a ball with a hole in it. The ball rotates to let fluid pass through or block it. The hole is about the same size as the pipe. This valve is great for quick shutoffs of clean fluids. These include water, steam, or oil. It helps during startups or emergencies. It is not good for throttling, which is adjusting flow. A partial opening can cause seat wear. This limits its use for precise flow control.

Shut-off Valve

A shut-off valve is often a globe-style design. It uses a rotating stem to press a disc against a seat. This creates a tight seal that stops all fluid flow. It works well for corrosive gases or liquids in boiler pipes. It provides a solid seal where it is most needed. One limit is a higher pressure drop. This is due to the S-shaped flow path. So, it is less efficient for high-volume needs.

Gate Valve

A gate valve uses a gate that slides up and down. A multi-turn stem moves the gate to open or close the path. Sealing rings ensure a complete block. This type is perfect for shutoff in main steam or feedwater lines. It causes very little pressure loss when fully open. This allows for clear flow. It cannot be used to regulate flow. A partial opening leads to vibration and quick wear. It is only for on/off use.

Swing Check Valve

A swing check valve has a hinged disc. The disc swings open with forward fluid pressure. It closes with gravity or backpressure to stop reverse flow. It works as an automatic non-return device. It is often put in condensate return lines to prevent backflow. This protects pumps and keeps the system efficient. A drawback is potential water hammer if it closes slowly in fast-moving systems. It works best when placed horizontally.

Butterfly Valve

A butterfly valve, or flap valve, uses a rotating disc on a stem. The stem turns 90 degrees to control flow. It changes the disc's angle to the pipe. It acts as a regulator and blocker in low-pressure lines. It is good for small spaces in boiler setups that need quick changes. While it is compact, it does not seal well at high pressures. It also struggles with throttling when not fully open or closed.

Regulating Valve

A regulating valve is also called a control valve. It adjusts fluid volume with an automated stem. The stem moves based on signals about flow or pressure needs. It is vital in heating, steam, or process pipelines for active control. It keeps temperatures stable in boilers with changing loads. Its complexity fits automated systems but costs more. It also needs calibration. This makes it too much for simple shutoff tasks.

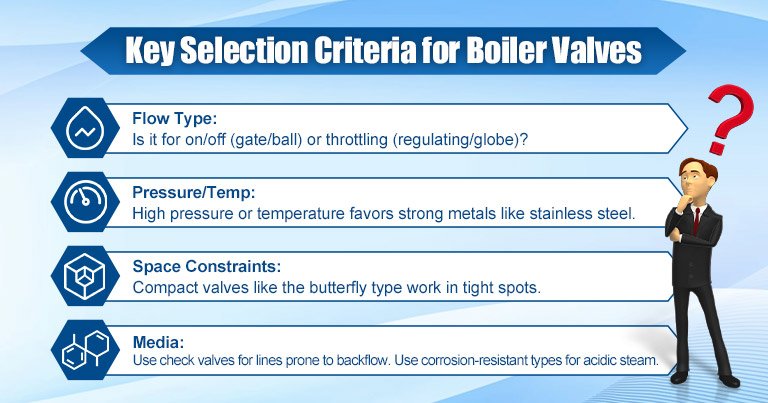

Key Selection Criteria for Boiler Valves

Choosing the right boiler valve means matching it to your system. Check the pressure rating, such as up to 300 psi for low-pressure systems. Also, look at fluid traits like corrosiveness. Think about how it will be operated. Manual is for rare use, while automated is for control systems. Make sure it meets ASME standards for safety. Use this checklist for a basic review:

Flow Type: Is it for on/off (gate/ball) or throttling (regulating/globe)?

Pressure/Temp: High pressure or temperature favors strong metals like stainless steel.

Space Constraints: Compact valves like the butterfly type work in tight spots.

Media: Use check valves for lines prone to backflow. Use corrosion-resistant types for acidic steam.

These factors help you make cost-effective choices.

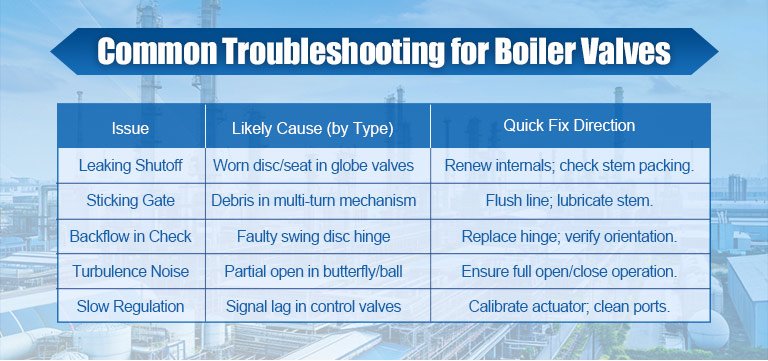

Common Troubleshooting for Boiler Valves

Boiler valve problems often come from wear or a bad match. Most can be fixed quickly to prevent downtime. First, check for leaks or sticking. Then, find the cause based on the valve type.

Regular visual checks and pressure tests based on NBIC rules can prevent bigger issues.

Summary

At EPCB, we are a top provider of industrial boiler solutions. We have helped many clients improve their steam and hot water systems. We do this by picking the right valve types for their needs. This could be a fixed ball valve for quick shutoff or a regulating valve for precise control. In my experience, starting with your system’s pressure, flow, and media type is key. This ensures you meet ASME standards. It also saves money by cutting energy loss and maintenance. We at EPCB always fit valve suggestions to your budget. We often add them into full boiler packages for better reliability. If you are planning an upgrade or a new setup, contact our team. We can review your system and suggest a custom valve plan. This will keep your operations running smoothly.

FAQ

What is the best boiler valve for high-pressure steam isolation?

Gate valves are best for high-pressure steam isolation. Their full-bore design causes very little pressure drop. They provide a solid shutoff without blocking flow. Ball valves might wear faster in extreme conditions. Always check ASME ratings for your pressure levels.

When should I choose a regulating valve over a butterfly valve?

Choose a regulating valve for automated heating circuits with changing flow. This is where you need exact control. Butterfly valves work for simple, low-pressure changes. They lack fine control, which can cause problems with dynamic loads. Think about your system's PLC integration.

How do swing check valves prevent boiler pump damage?

Swing check valves close automatically on backflow. This stops hot condensate from flowing back into pumps. This prevents overheating or cavitation. Their gravity-aided design works well in return lines. Add dampers if water hammer happens. This usually extends pump life by two to three years.

Can fixed ball valves handle throttling in boiler feed lines?

No, fixed ball valves are not good for throttling. A partial opening creates high-speed jets that wear out seats quickly. Use them only for quick on/off actions in clean feed lines. For regulation, use globe or regulating valves instead.

What's the main difference between gate and shut-off valves in boilers?

Gate valves offer low-loss, full shutoff for main lines. Shut-off (globe) valves give better throttling but with higher pressure drops. They are good for corrosive paths. Choose gate valves for efficiency in straight runs. Choose globe valves for control needs. Both seal tightly but work for different flow types.
