Types of Steam: A Practical Guide for Industrial Applications

Not all steam is the same. The type of steam a process requires determines boiler specification, distribution system design, and in food and pharmaceutical applications, the regulatory compliance scope. Using the wrong steam type causes quality failures, equipment damage, or compliance violations that adjusting operating pressure alone cannot fix.

Steam is classified along two independent axes: thermodynamic state (wet, dry saturated, superheated, flash) and purity (plant, culinary, clean, pure, filtered). Both must be confirmed at every use point. A steam system can produce dry saturated steam that is plant-grade or clean-grade—thermodynamic state and purity classification are separate decisions.

Scope note: This article covers steam types in industrial and commercial applications. Final steam quality requirements, applicable standards, and regulatory compliance criteria must be verified against the specific process requirements, local regulatory framework, and current applicable edition of each standard cited.

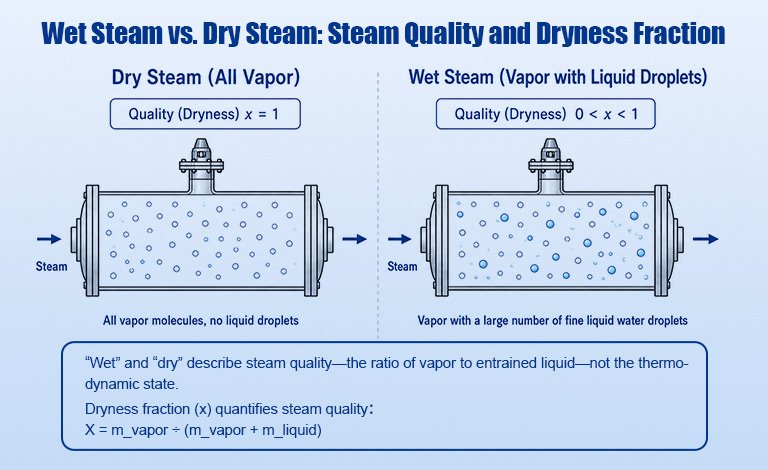

Wet Steam vs. Dry Steam: Steam Quality and Dryness Fraction

"Wet" and "dry" describe steam quality—the proportion of vapor to entrained liquid—not the thermodynamic state. Both wet and dry steam can exist at saturation conditions. This distinction matters because a saturated steam system can produce either, depending on boiler design, separation equipment, and distribution conditions.

Dryness fraction (X) quantifies steam quality:

X = m_vapor ÷ (m_vapor + m_liquid)

A dryness fraction of 1.0 means all water has converted to vapor—dry steam. A fraction below 1.0 means entrained liquid droplets are present—wet steam. Even well-operated boilers typically discharge steam with 3–5% wetness at the drum outlet under normal operating conditions.

Wet steam causes specific problems at the point of use. Liquid droplets carry no latent heat, reducing heat transfer in proportion to the wetness fraction. Entrained condensate erodes pipework and turbine blades. Water hammer risk increases when liquid accumulates in distribution lines.

Wet steam at process equipment is a distribution and separation problem, not a boiler problem. It indicates oversized pipework, failed steam traps, insufficient insulation, or inadequate drum separation. It is a condition to eliminate through correct system design.

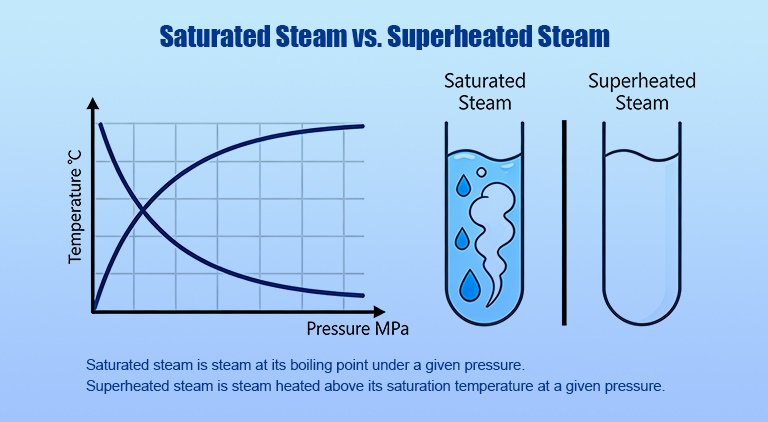

Saturated Steam vs. Superheated Steam

Saturated steam is steam at its boiling point for a given pressure. As pressure increases, saturation temperature rises—a relationship described in steam tables, which are based on absolute pressure. When using gauge pressure readings, add atmospheric pressure before reading from steam tables. At 6 bar gauge (approximately 7 bar absolute), saturated steam exists at approximately 165°C. At 10 bar gauge (approximately 11 bar absolute), saturation temperature reaches approximately 184°C.

This pressure-temperature relationship is the key operational advantage of saturated steam. Adjusting steam pressure provides precise, predictable temperature control at the process. Saturated steam also has a high heat transfer coefficient—when it condenses on a heat transfer surface, it releases its latent heat rapidly and evenly. This makes it a more efficient heating medium than superheated steam or hot air for the same surface area.

Superheated steam is steam heated beyond its saturation temperature at a given pressure. At 10 bar gauge, saturated steam exists at approximately 184°C. Superheated steam at the same pressure might be 250°C or higher, depending on the degree of superheat. It contains no moisture and does not condense readily when temperature drops slightly.

These properties make superheated steam the standard for power generation turbines. Steam flowing through turbine nozzles and blades must stay in vapor form throughout. Condensate formation causes blade erosion and mechanical damage. Superheated steam's resistance to condensation makes it the right choice for turbine applications.

For heat transfer—heat exchangers, autoclaves, process vessels—saturated steam outperforms superheated steam. Superheated steam has a heat transfer coefficient comparable to air. It must cool to saturation temperature before condensation begins, requiring more heat transfer surface and reducing control precision. Specifying superheated steam for a heating application designed around saturated steam increases cost without improving process performance.

Producing superheated steam requires a superheater section downstream of the boiler drum—either integral to a water-tube boiler or as a separate vessel.

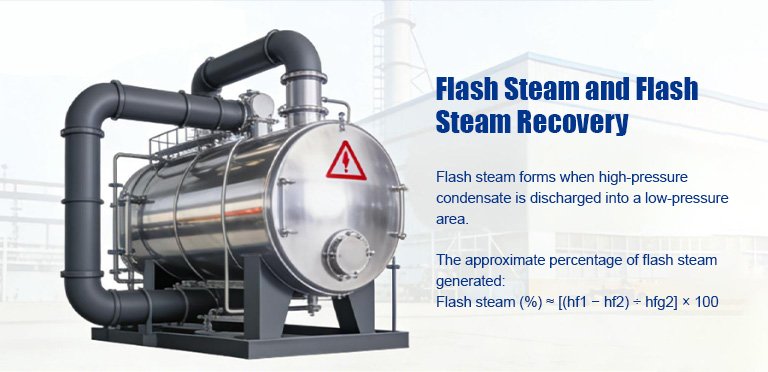

Flash Steam and Flash Steam Recovery

Flash steam forms when high-pressure condensate is discharged to a lower pressure zone. Hot condensate—held liquid by system pressure—passes through a steam trap and a portion instantly re-vaporizes at the lower pressure. This is flash steam.

The approximate percentage of flash steam generated:

Flash steam (%) ≈ [(hf1 − hf2) ÷ hfg2] × 100

Where hf1 = enthalpy of condensate at the higher pressure, hf2 = enthalpy of condensate at the lower pressure, and hfg2 = latent heat of vaporization at the lower pressure. Values are read from steam tables at the respective absolute pressures.

Flash steam is physically identical to saturated steam at the lower pressure and carries usable heat energy. Routing it to a low-pressure heating header through a flash steam vessel reduces how much live steam the boiler must generate for low-pressure duties. Whether recovery is cost-effective depends on the volume of high-pressure condensate available, whether a matching low-pressure demand exists, and the capital cost of the recovery equipment relative to fuel savings.

One common misidentification: saturated steam is invisible immediately at the pipe outlet. Flash steam contains visible water droplets the instant it forms. Visible steam at a trap outlet during normal operation is typically flash steam from condensate discharge—not necessarily a failed trap.

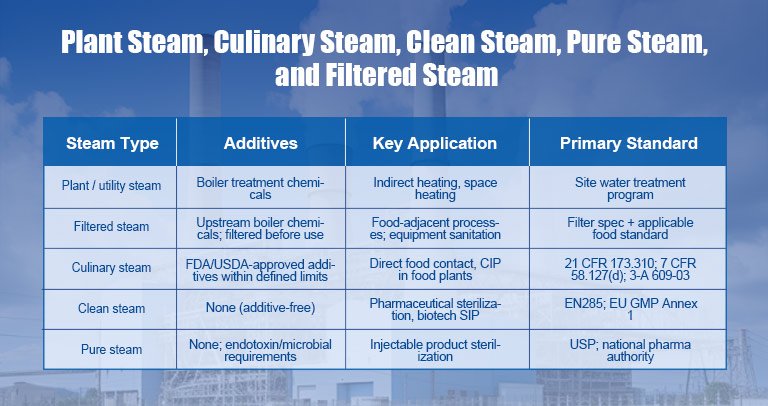

Plant Steam, Culinary Steam, Clean Steam, Pure Steam, and Filtered Steam

Purity classification determines whether steam can contact food, pharmaceutical products, or potable water. The classifications below describe increasing levels of control and compliance.

Plant steam (utility steam) contains boiler water treatment chemicals—corrosion inhibitors, antifoaming agents, and pH adjustment compounds. These protect the boiler and distribution system. Plant steam suits indirect heating where steam does not contact the product. It is not suitable for direct injection into food or pharmaceutical products.

Filtered steam is plant steam passed through a sanitary steam filter to remove entrained particles, rust, and condensate before reaching food-contact surfaces or specified process equipment. Filtration alone does not make plant steam with non-compliant additives into culinary or clean steam. Its acceptability depends on filter specification, upstream boiler water chemistry, and the applicable standard for the specific use point.

Culinary steam meets regulatory requirements for direct contact with food or food-contact surfaces. In the US, FDA 21 CFR 173.310 governs which boiler water additives are permitted in food-contact steam and at what concentration limits. For dairy applications, 7 CFR 58.127(d) requires that steam in direct contact with milk or dairy products be free from harmful substances or extraneous material, and that boiler water additives comply with 21 CFR 173.310—or that a secondary steam generator with no boiler compounds be used. 3-A Sanitary Standard 609-03 provides the accepted method for producing culinary steam. Compliance is verified at the point of food contact, not at the boiler outlet.

Clean steam is produced from treated feedwater without volatile boiler chemical additives, typically from a dedicated generator isolated from the utility steam circuit. Where WFI-grade steam is required, the condensed steam must meet the applicable pharmacopoeial requirements for Water for Injection or Pure Steam. Not all systems described as "clean steam" automatically achieve this quality level—the specification must be validated against the applicable standard.

EN285 (verify the current applicable edition and local validation protocol) sets steam quality requirements for use in large steam sterilizers. Key limits referenced in pharmaceutical engineering practice:

Non-condensable gases—nitrogen, oxygen, or carbon dioxide dissolved in feedwater—occupy volume in an autoclave without contributing to heat transfer or steam penetration. Excessive levels prevent the autoclave from achieving validated sterilization conditions, regardless of steam pressure and temperature.

Pure steam carries additional requirements beyond clean steam, including endotoxin levels and microbial content. The applicable standard depends on the regulatory framework—EU GMP Annex 1, USP, or national authority requirements—and must be confirmed for the specific application.

Matching Steam Type to Process Application

Conclusion

Steam type selection is a technical and regulatory decision before it is an equipment decision. Thermodynamic state—wet, dry saturated, superheated, or flash—determines process performance and heat transfer behavior. Purity classification—plant, filtered, culinary, clean, or pure—determines the compliance scope. Both must be confirmed at every steam use point before the boiler, water treatment program, or distribution system is specified.

In industrial boiler specification, one of the most common errors is defining steam requirements by operating pressure alone. Steam quality at the point of use is a system-level outcome—it depends on boiler drum separation, distribution pipe sizing, steam trap selection, and condensate management working together with the correct water treatment program.

For project specification, define each steam use point by thermodynamic state, purity class, pressure at the use point, flow rate, and applicable standard before selecting the boiler and distribution design. Where food contact or pharmaceutical compliance is involved, confirm the applicable regulatory framework and standard edition with the relevant authority before finalizing the system scope.

If you are specifying a steam system or reviewing an existing installation, share your process requirements—use points, thermodynamic conditions, purity classification, and applicable regulatory framework—with our team. We will confirm the right boiler type, water treatment program, and distribution system to deliver the correct steam type at each point in your facility.

FAQ

What is the difference between wet steam and dry steam?

Both exist at saturation conditions. Wet steam has entrained liquid droplets—dryness fraction below 1.0. Dry steam has none—dryness fraction equals 1.0. Wet steam at process equipment points to a distribution problem: oversized pipes, failed traps, poor insulation, or insufficient boiler drum separation—not a boiler output issue.

Why is saturated steam preferred over superheated steam for heating?

Saturated steam releases latent heat rapidly during condensation, giving it a high heat transfer coefficient. Superheated steam behaves like air until it cools to saturation temperature—condensation, and therefore heat release, cannot begin until that point. For heat exchangers and process vessels, saturated steam achieves the same result with less surface area and better temperature control.

What is flash steam and when is it worth recovering?

Flash steam forms when high-pressure condensate drops to a lower-pressure zone and a portion instantly re-vaporizes. It carries usable heat at the lower pressure. Recovery is worth evaluating when there is a significant source of high-pressure condensate and a matching low-pressure demand to absorb the recovered energy. The decision depends on available flash steam volume, demand match, and capital cost of the recovery equipment.

Is culinary steam the same as clean steam?

No. Culinary steam is a food contact compliance classification. It permits certain FDA/USDA-approved boiler water additives within defined limits and is governed by 21 CFR 173.310, 7 CFR 58.127(d), and 3-A 609-03. Clean steam is a pharmaceutical-grade classification—produced without boiler chemical additives, with condensate meeting pharmacopoeial standards where WFI-grade is required. The two classifications serve different regulatory purposes and should not be used interchangeably.

Is filtered steam the same as culinary steam?

Not automatically. Filtered steam describes a treatment process—removing particles and condensate through a sanitary filter. Whether the result qualifies as culinary steam depends on whether the upstream boiler water treatment complies with 21 CFR 173.310 and whether the full system meets 3-A 609-03 requirements. Filtration alone does not convert non-compliant plant steam into culinary steam.

Does clean steam require a different boiler?

Not a different boiler type, but a different system boundary and water treatment program. Clean steam requires a dedicated generator or separately isolated circuit with additive-free feedwater treatment, physically separated from the utility steam system. The circuit must be validated under the applicable pharmaceutical or food safety standard before use.
