Steam Pressure Reducing Station: Components, Sizing and Selection Guide

A steam pressure reducing station holds a lower, stable downstream pressure from a higher header pressure. Two separate limits decide its configuration: the flow range one valve can control, and the pressure ratio it can drop in one stage. Beyond the reducing valve, a station normally carries a separator and trap, upstream isolation, a strainer, gauges on both sides, a safety valve where downstream equipment is rated below inlet pressure, and downstream isolation. Which of those are mandatory depends on the steam condition at the inlet and the pressure rating of the equipment served.

Function and Boundary of a Steam Pressure Reducing Station on a Plant Header

A reducing station exists where a header runs at a higher pressure than the equipment behind it needs. The width of that gap decides how much of the assembly is mandatory. Distributing at the higher pressure also keeps main sizes down for the same mass flow, which is one reason the gap gets designed in.

Saturated steam temperature tracks its pressure. Holding a tight pressure at the point of use is therefore the practical way to hold a tight temperature at a jacket, coil or sterilizer. A process can require a station on that basis alone, even where nothing downstream is at risk of overpressure.

One boundary is worth stating plainly. A station controls pressure; it cannot make up a shortfall in the output of the oil gas fired steam boiler feeding the header. Specify one to solve a capacity problem and it will pass that problem downstream at a lower pressure.

Sizing on Flow Range Instead of Line Size

Connection size on a reducing valve follows the flow range the valve must control, and the low-load end of that range governs the choice. A 50 mm ball valve suits a 50 mm pipe. A 50 mm reducing valve on that same pipe may be too large to hold pressure when only part of the load runs.

The worked example in TLV's sizing guide makes the gap concrete. A 50 mm line carrying 60 to 500 kg/h needs a 25 mm or 32 mm reducing valve, because a 50 mm valve matched to the pipe cannot control the bottom of that range. Reducers on both sides fit the smaller valve to the larger pipe. The Yale standard asks for eccentric type, flat side down, so condensate does not pool ahead of the valve.

The controllable floor is a percentage of rated capacity, so every step up in valve size raises that floor proportionally. Selecting a larger valve for margin moves the minimum controllable flow up with it. That is why the lowest load, not the peak, tends to set the size.

Five figures let a supplier size the station without guessing: maximum steam flow, minimum steam flow, the inlet pressure range, the required outlet pressure, and the design pressure of the equipment downstream. A quotation returned against those five can be compared line by line against another.

Choose a valve on line size without checking the flow it can still hold, and pressure tends to drift or swing during low-demand periods. The correction is a smaller valve on reducers, not a new controller.

Station Components and the Decision Each One Carries

Each component in a reducing station answers a specific failure mode, and which ones are mandatory depends on the steam condition at the inlet and the rating of the equipment downstream. A separator with its own trap set, or at minimum a drip pocket and trap, keeps condensate out of the seat. Inlet steam quality is what decides seat life here, because wet steam erodes throttling surfaces faster than any other normal service condition.

The strainer protects those same surfaces from scale and corrosion debris. Screen fineness is one of the clearest cases where a published figure is model-specific: the design article recommends 20-mesh stainless, while the manufacturer manual cited above asks for 60 mesh or finer. Both agree on orientation. The screen mounts horizontally, never pointing down, so the pocket cannot fill with condensate that later passes the valve.

Isolation valves on both sides allow maintenance without a wider shutdown, and the downstream one also supports commissioning. Valve positions during initial setting are model-specific. One published manufacturer procedure opens the outlet shutoff valve only slightly while the outlet pressure is adjusted, then opens it fully once the setting holds. Gauges on both sides, each with a siphon, are the only diagnostic that separates a drifting set point from a fouled strainer.

Downstream pipework is sized on the specific volume of the low-pressure steam leaving the valve and on the velocity limit chosen for that line. In practice that puts it a size above the upstream pipe.

Condensate drainage at the station belongs in this scope. Sizing the plant return and recovering industrial boiler condensate water do not, since those follow the condensate load of the equipment served rather than the pressure drop across this valve.

Flow Range and Pressure Ratio as Two Separate Limits

A single reducing valve is bounded by two independent limits: the flow range it can control, and the pressure ratio it can take in one stage. A duty can pass one test and fail the other. The two failures have different remedies.

The flow test compares the operating range the station must cover against the minimum controllable flow of the selected model. A header supplying a 2,680 kg/h process load that must also hold pressure for an 80 kg/h branch spans 2,680 divided by 80, or about 34:1. That is wider than the 20:1 rule of thumb quoted for regulator stations, so a single-valve selection should not be assumed. That is a prompt to open the data sheet: the figure to check is the manufacturer's stated minimum controllable flow in kg/h at your pressures. Put your own numbers in the same place, dividing the highest flow the station must pass by the lowest flow it must still hold.

The ratio test is separate, and it is the one most often skipped. The manual cited above accepts an outlet between 10% and 84% of inlet pressure. It calls for two-stage reduction where the reduction ratio exceeds roughly 10:1. A station dropping 8 barg to 3 barg sits at about 38% of inlet, comfortably inside that band. The same header dropping to 0.5 barg sits near 6% and falls outside it, even where the flow range is perfectly manageable.

The two configurations answer these two tests. Parallel staging, such as the one-third and two-third arrangement in the Yale standard, extends the controllable flow range. Two valves in series reduce pressure in stages, addressing a ratio, velocity or noise problem that one drop cannot handle. They are not interchangeable, and a duty failing both tests needs both measures.

The station-count decision is partly commercial. A separate station per branch duplicates isolation, strainer, gauges and safety valve, so the real comparison is a second full assembly against one station carrying two valves on a shared inlet. Where availability is the driver, the question becomes one of N+1 redundancy, which is a different calculation.

Safety Valve Capacity and Downstream Pressure Class

A safety valve is required wherever a component downstream is rated below the maximum pressure that could reach it. Its capacity follows the largest flow that could pass the station under the governing failure case. That basis differs from the one used for the industrial boiler safety valve upstream, which is sized on boiler output. ASME BPVC Section XIII sets the rules for that protection, including capacity certification and installation, and which edition applies is a jurisdiction and contract question.

Published guidance differs on how conservative the capacity check should be. The design article runs the calculation with the largest trim available for the valve. The project standard cited above specifies the actual trim installed, and in a multi-valve station the combined maximum output. The conservative version costs money in relief piping; the installed-trim version depends on trim changes staying controlled afterwards.

The bypass belongs inside the same calculation. Where a bypass has a flow coefficient at or above the reducing valve's, relief has to be sized on the bypass, which enlarges both the relief valve and its discharge line. That manufacturer manual attacks the same problem from the other end, specifying a bypass pipe of at least half the inlet size, so the bypass stays below the main valve by construction.

The relief also works as a procurement lever. Under that same standard, devices downstream of a Class 300 reducing valve carry the same rating, unless a downstream safety valve permits them to be derated to the protected pressure. Remove the relief from a quotation and the pressure class of everything behind it goes up. These inputs converge together, though the minimum flow is worth locking first because it is the input to the others: it sets the valve size, valve size sets the trim and coefficient, and those set relief capacity and discharge routing. Set points remain adjustable after commissioning, while body material, pressure class and relief piping are fixed at fabrication.

A reducing station earns its cost where the process needs a lower pressure or temperature, or where something downstream is rated below the header; where neither applies, trap and leak repair usually returns more than the station would.

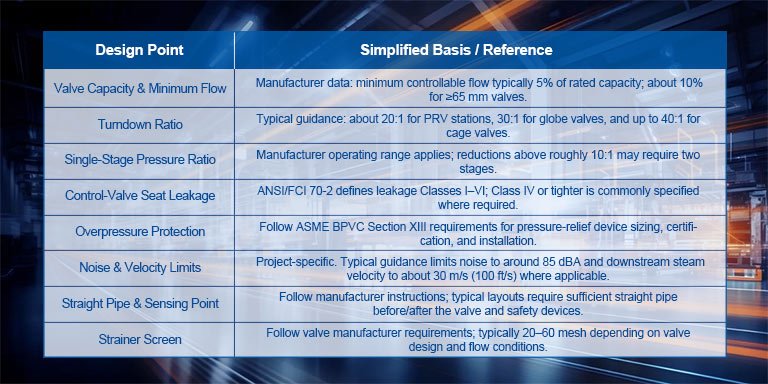

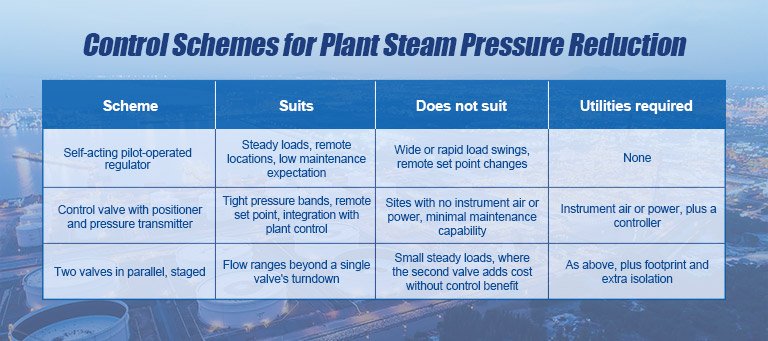

Control Schemes for Plant Steam Pressure Reduction

Control scheme selection depends on the load range, the pressure stability the process requires, the utilities available at the station, and the pressure-reduction ratio. A deep ratio can force two-stage reduction or special trim even where the load itself is steady. That is why the ratio test belongs before the scheme comparison.

Noise limits shape the selection itself. A valve running loud is running fast, and outlet velocity is what shortens seat life. Published velocity limits differ between design authorities and apply at different points in the line, so ask which limit a supplier sized against and whether the quoted outlet pipe size reflects it.

On a station that has run a long interval with a fouled strainer or a wet inlet, the seat is among the first parts worth re-checking. Moisture and debris work the sealing surfaces before other components show symptoms.

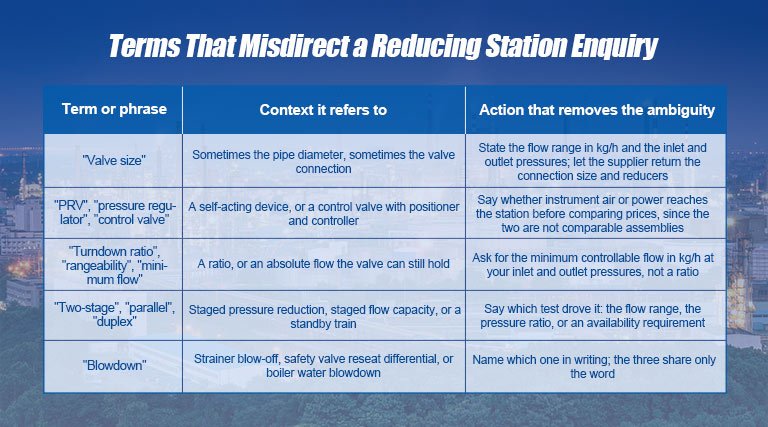

Terms That Misdirect a Reducing Station Enquiry

Ambiguous wording in a reducing station enquiry produces most of the mismatch between what a plant asks for and what arrives. Each recurring term has one action that resolves it. The five below appear in nearly every enquiry for this equipment.

A quotation that answers these five points can be compared against another on the same basis. One that answers the name of the assembly alone usually cannot.

Reducing Station Questions That Surface at the Quotation Stage

Four questions come up repeatedly once a reducing station specification reaches a supplier, and none of them are settled by the name of the assembly.

Can one reducing station hold two different outlet pressures?

No. Each set point needs its own reducing valve, because a single pilot senses and holds one downstream pressure. Two branches can share an inlet header and isolation, but the valves stay separate.

How often should a reducing station be inspected?

Annual disassembly and inspection is the interval TLV's COS/COSR manual recommends, with the separator and pilot screens cleaned at the same visit. Wear parts carry their own hours in that manual: piston rings around 8,000, main valve and seat around 15,000, diaphragm and piston around 30,000.

Can a steam pressure reducing valve be mounted vertically?

Two separate questions hide behind that one. Pipe run: published design guidance puts the valve on a horizontal line so condensate cannot collect at the inlet. Valve attitude: one manufacturer manual calls for the body itself to stand vertical, with the arrow pointing along the horizontal flow. Follow the manual for attitude and the design rule for the run.

Is a bypass line always required?

Bypass lines earn their place where the process cannot stop for maintenance, and one published design standard treats them as standard on every installation. Where a short outage is acceptable, leaving the bypass out removes a leak path and takes the bypass contribution out of the relief calculation.

From Flow Range and Pressure Ratio to a Station Configuration

Two numbers decide most of a steam pressure reducing station specification: the lowest flow the station must still hold, and the pressure class of the equipment behind it. Body material, control scheme and skid footprint follow once those are fixed.

We check the minimum controllable flow of a proposed valve against a plant's lowest recorded load before comparing quotations, because that is the figure a line-size selection hides.

If both tests pass and no instrument air reaches the location, a self-acting regulator is the usual starting point; confirm its minimum controllable flow in kg/h sits below the lowest load the station will see.

A flow range wider than one valve covers turns the question commercial. Price staged parallel valves in one station against separate stations per branch, remembering that the second duplicates isolation, strainer, gauges and relief.

An outlet pressure near or below the bottom of the model's stated percentage of inlet pressure points somewhere else entirely: two-stage reduction, which fixes the ratio and leaves the flow range where it was.

Where downstream equipment carries a lower pressure class than the header, size the relief before finalising the reducing valve. Relief capacity and discharge routing set the pressure class of everything behind the station.
