Reliable Steam Boilers for Vulcanizing Rubber

September 12, 2025

Could the quality of rubber products be compromised by the vulcanization process itself? Vulcanization serves as a core step in rubber manufacturing, transforming raw rubber into durable, elastic materials through heat, pressure, and chemical agents, widely used in sectors such as automotive, aerospace, and consumer goods. Precise control of these conditions is crucial to avoid defects like under-vulcanization, scorching, or uneven crosslinking, which could lead to reduced tensile strength or premature product failure. In this process, industrial steam boilers play a key role, providing consistent high-quality steam for autoclaves, molds, and extruders to ensure uniform curing and premium results. With advancements in boiler technology, such as modular designs and rapid startup capabilities, manufacturers can achieve energy-efficient operations, reduce downtime and operating costs, while effectively addressing common challenges in high-volume rubber processing, such as unstable steam supply.

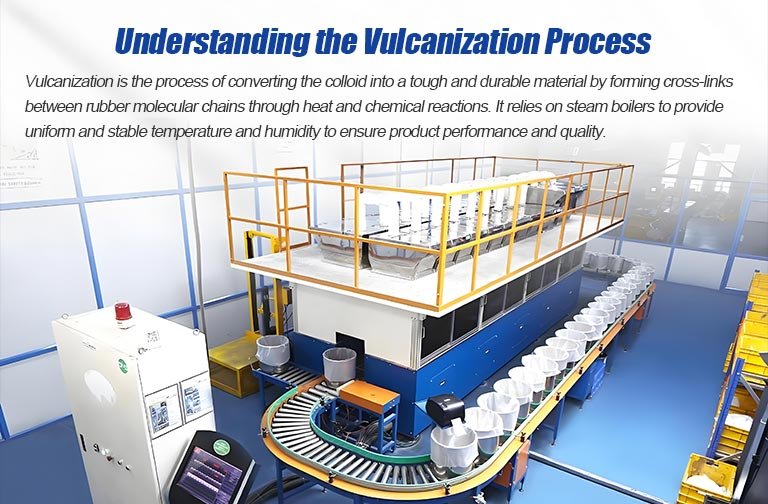

Understanding the Vulcanization Process

The vulcanization process significantly enhances rubber's performance, making it suitable for various demanding environments. This chemical reaction primarily involves crosslinking of polymer chains, typically using sulfur, under controlled heat and pressure conditions, transforming soft, sticky raw rubber into a tough, multifunctional material with excellent heat resistance, chemical resistance, and abrasion resistance.

The Vulcanization Process and Its Scientific Principles

Vulcanization is the curing process of elastomers, where rubber molecules are connected through chemical bonds to improve tensile strength, elasticity, and resistance to heat, abrasion, and chemicals. It applies to natural rubber (sourced from the Hevea brasiliensis tree) and synthetic rubber (derived from petroleum, such as styrene-butadiene rubber or neoprene). The process typically uses sulfur or alternatives like peroxides, with heat from steam boilers accelerating the reaction to prevent melting in high temperatures or brittleness in low temperatures. In practical applications, steam enables direct or indirect heating in autoclaves, ensuring even distribution to avoid defects in products like tires, hoses, or seals.

At the molecular level, vulcanization forms crosslinks between polymer chains, transforming rubber from a sticky gum into a tough material. Key factors include: sulfur bridges connecting chains to enhance durability; for certain synthetic rubbers like neoprene, metal oxides replace sulfur, while accelerators like zinc oxide speed up the reaction; natural rubber responds well to sulfur but may require antioxidants to prevent oxidation; synthetic rubber offers better chemical resistance but demands customized accelerators and higher temperatures. The optimal crosslinking temperature is typically 140–180°C (284–356°F), with steam providing uniform heat distribution and maintaining moisture levels that aid curing. Steam boilers ensure stable conditions, reducing defects like bubbles, uneven curing, or scorching, which can occur even with temperature fluctuations of 5-10°C. Advanced boilers are equipped with precise control systems that integrate with vulcanization equipment for real-time monitoring and adjustments.

The History and Evolution of Vulcanization

The history of vulcanization embodies human innovation, from ancient primitive applications to modern efficient technologies, with steam gradually becoming a key element in scaling production.

From Ancient Origins to Modern Technology

The use of rubber dates back to 1600 BCE, when Mesoamerican cultures like the Aztecs extracted latex from trees and used natural heat for basic curing to make balls and waterproof materials. Early European research, such as Charles de la Condamine's 1751 paper on South American rubber, laid the foundation for subsequent developments. In 1839, American inventor Charles Goodyear accidentally discovered modern vulcanization by heating rubber with sulfur, creating a stable elastic compound that wouldn't melt or crack. Despite financial difficulties and Thomas Hancock's prior 1843 British patent, Goodyear obtained a U.S. patent in 1844, revolutionizing the rubber industry for applications like tires and dental prosthetics.

Today's vulcanization methods emphasize efficiency, sustainability, and precision. Continuous vulcanization uses extruders for ongoing production of profiles like hoses, while microwave or salt bath curing suits specific compounds for faster, more energy-efficient results. Advances include non-sulfur agents like peroxides for eco-friendly rubbers to reduce environmental impact, as well as automation systems for precise control in free vulcanization (such as hot air or steam for extruded products). Steam boilers have evolved accordingly, offering rapid startup (under 5 minutes), modular designs to match varying loads, and integration with autoclaves for direct steam heating, improving uniformity in tires and aerospace components.

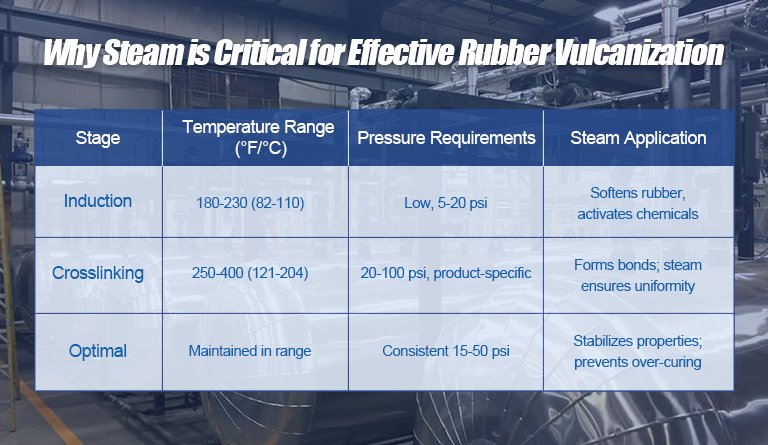

Why Steam is Critical for Effective Rubber Vulcanization

Steam provides uniform heat and pressure, essential for each stage of vulcanization: the induction stage (softening and accelerator activation), the crosslinking stage (bond formation), and the optimal curing stage (final property stabilization). In rubber factories, steam is used for autoclave curing, molding, and drying, offering superior heat transfer efficiency compared to hot air or electric heating.

Steam Requirements and Role in Vulcanization

Temperature ranges are typically 180–400°F (82–204°C), with pressure varying by rubber type (e.g., 15-100 psi for tires). Direct steam contact in autoclaves ensures uniform curing, while indirect methods use steam jackets for controlled heating.

Stage	Temperature Range (°F/°C)	Pressure Requirements	Steam Application
Induction	180-230 (82-110)	Low, 5-20 psi	Softens rubber, activates chemicals
Crosslinking	250-400 (121-204)	20-100 psi, product-specific	Forms bonds; steam ensures uniformity
Optimal	Maintained in range	Consistent 15-50 psi	Stabilizes properties; prevents over-curing

Reliable steam supply prevents defects like porosity or weak spots; boilers with rapid response systems, such as those using condensing technology, maintain stable conditions, reducing energy waste by up to 20% and recycling condensate. While alternatives like hot air exist, they lack steam's moisture support for certain compounds; in high-demand settings, saturated steam boilers provide the best efficiency for continuous operations.

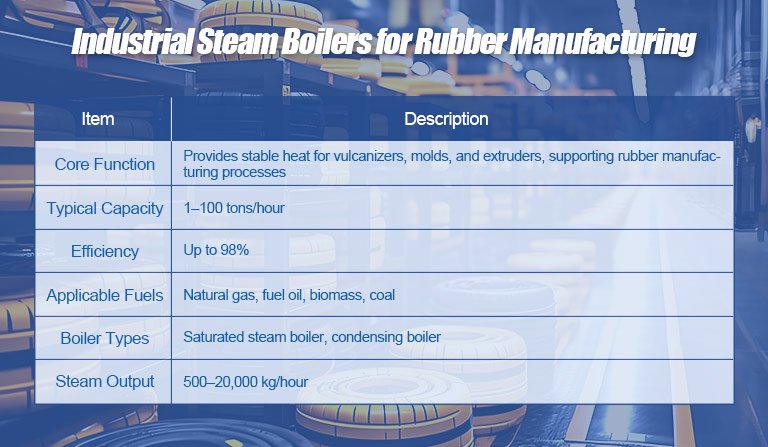

Industrial Steam Boilers for Rubber Manufacturing

Steam boilers are the core equipment in rubber factories, providing heat for vulcanizers, molds, and extruders. Typical capacities range from 1-100 tons/hour, with efficiencies up to 98%, supporting various fuels like gas, oil, biomass, or coal. Specialized systems include saturated steam or condensing boilers, using corrosion-resistant materials (such as stainless steel) and automation for precise steam quality control, customized for tire or hose production. Technical specifications cover steam output (500-20,000 kg/h), pressure ratings (up to 150 psi), and low-water designs that shorten startup time to minutes, optimizing production and minimizing scaling through water treatment integration.

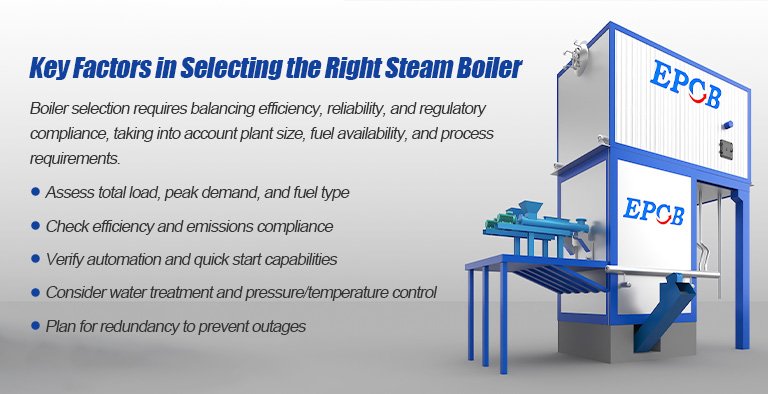

Key Factors in Selecting the Right Steam Boiler

Selecting a boiler requires balancing efficiency, reliability, and compliance, considering factory scale, fuel availability, and process demands.

Production Volume, Energy Efficiency, and Reliable Maintenance

First, match boiler capacity to production output; for high-volume plants (such as lines producing thousands of tires daily), recommend scalable modular boilers to handle peak loads without energy waste, incorporating economizers to save 5-10% on fuel. Energy features like cold-start designs reduce non-productive time, while compact footprints suit space-constrained rubber factories.

At the same time, prioritize low-emission, easy-maintenance designs equipped with redundancy (such as multi-unit configurations) to minimize downtime, self-diagnostic functions, and water quality management to prevent sludge buildup. Ensure compatibility with rubber-specific needs, such as providing consistent saturated steam parameters.

Selection Checklist:

- Assess total load, peak demand, and fuel type (e.g., biomass for sustainable rubber wood waste).

- Check efficiency metrics (e.g., >90% thermal efficiency) and emissions compliance.

- Verify automation, monitoring, and rapid startup functions.

- Consider water treatment as well as pressure/temperature controls for vulcanization.

- Plan redundancy to avoid production interruptions.

Optimizing the Vulcanization Process with Boiler Solutions

Advanced boilers enhance vulcanization efficiency through integrated controls, delivering better rubber performance, such as improved elasticity and reduced defects.

Technical Features for Process Optimization

PID controllers and automatic valves maintain ±1°C accuracy and consistent pressure (e.g., 20-50 psi), crucial for strength in aerospace composites, ensuring optimal heat transfer and preventing under-curing (weak bonds) or over-curing (brittleness). Real-time data via IoT supports adjustments, with features like automatic pressure supplementation and timing optimizing mixtures for specific products. Integration with vulcanizers enables continuous monitoring, reducing energy use by 15-20%.

Troubleshooting Tips:

- Inconsistent steam: Check for air leaks, poor feedwater quality, or scaling; implement regular blowdown.

- Over-curing: Calibrate sensors; reduce temperature by 5-10°C or adjust sulfur ratios.

- Energy waste: Insulate lines, optimize boiler size, and use economizers for heat recovery.

- Rubber defects: Verify steam purity to avoid contamination; switch to deaerated feedwater.

Conclusion: Partner with EPCB to Elevate Your Rubber Vulcanization Process

As a leading industrial boiler manufacturer, we at EPCB understand that as the rubber manufacturing industry advances toward sustainability and precision, steam boilers continue to play an indispensable role in achieving high-quality vulcanization. This article has thoroughly explored the core scientific principles of the vulcanization process, its historical evolution, the critical role of steam, and how advanced boiler systems optimize temperature, pressure, and automation management to avoid defects and enhance the durability, elasticity, and overall performance of rubber products.

In our view at EPCB, selecting efficient and reliable steam boilers is not just an equipment investment but a strategic decision. Through our customized solutions, you can significantly reduce energy consumption, cut operating costs, and easily meet stringent environmental standards. Whether for high-volume tire production or precision industrial rubber components, our boiler systems can precisely match your needs, ensuring consistent steam supply and superior product quality.

Now is the perfect time to upgrade your vulcanization process! We at EPCB invite you to contact our expert team immediately to discuss how to tailor a boiler solution for your rubber manufacturing workflow.

FAQ

What is the vulcanization process, and how does it improve rubber performance?

It is a chemical crosslinking using sulfur or alternatives under heat/pressure, enhancing strength, elasticity, and resistance to abrasion and chemicals.
