The Difference Between Water Heaters and Boilers

Facility managers and engineers often ask whether their application needs a boiler or a water heater. Both systems heat water, but they serve different functions and operate under different conditions. Selecting the wrong system creates compliance risk, sizing problems, and avoidable operating cost.

This article covers hot water boilers and industrial water heaters in commercial and industrial settings. It explains the functional difference, key technical variables, applicable standards, and how to choose the right system for a given application.

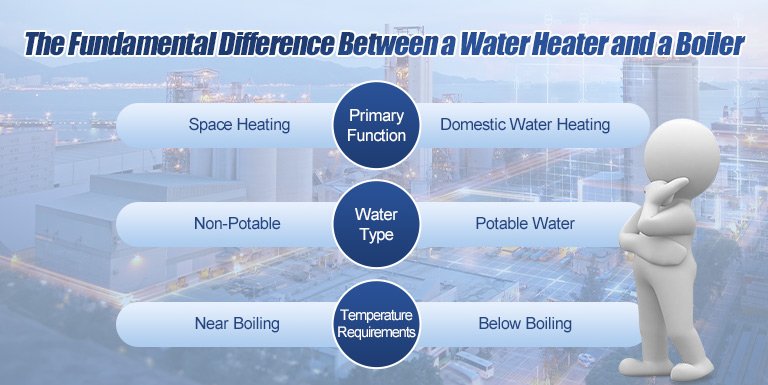

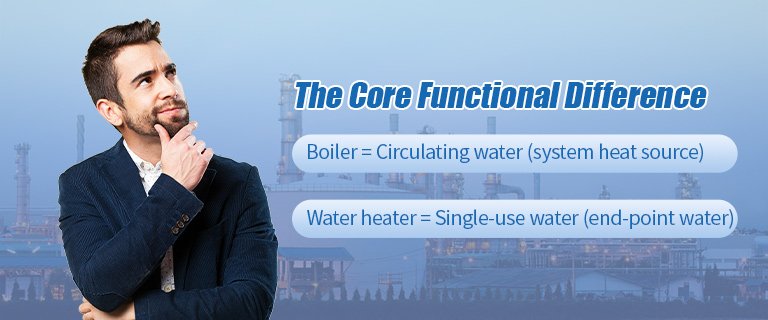

The Core Functional Difference

A hot water boiler heats water and circulates it through a closed-loop system. The heated water moves through pipes to radiators, heat exchangers, or process circuits. The water is not consumed—it returns to the boiler, reheats, and recirculates. Common applications include space heating, radiant floor systems, and process heat delivery.

An industrial water heater heats fresh water for direct use. Water enters cold from the supply line, exits hot, and is consumed at the point of use—cleaning stations, sanitation points, employee facilities, or food processing lines.

These two functions are not interchangeable. A boiler cannot supply a domestic hot water circuit without a heat exchanger separating the boiler loop from the potable supply. A water heater cannot meet the temperatures or flow rates required for most heating or process loops.

The Selection Error We See Most Often

The most common mistake is connecting a boiler directly to a domestic hot water circuit. Boiler water contains corrosion inhibitors and chemical treatment. It is not potable. Any direct connection to a potable supply violates IPC Chapter 6 (Section 608), which requires approved backflow prevention at any point where a non-potable system could contact a potable supply. We treat this as a hard constraint in every project scope review.

The reverse error also occurs. Water heaters are designed for draw-and-replace operation, not closed-loop recirculation. Running a water heater in a heating loop shortens equipment life and fails to sustain the supply temperatures the system needs.

Both errors trace to the same root cause: the functional boundary between space or process heating and domestic hot water supply was not confirmed before equipment was specified.

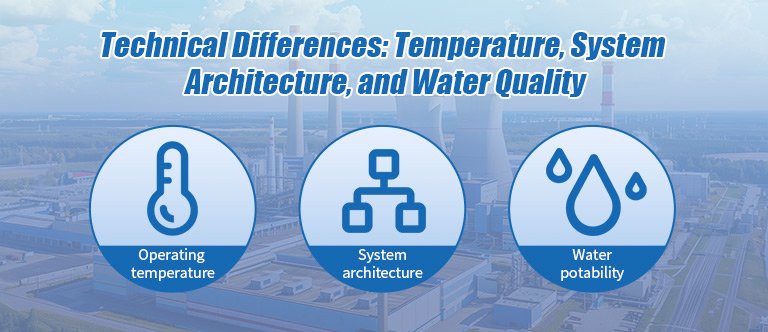

Technical Differences: Temperature, System Architecture, and Water Quality

Operating temperature. Industrial water heaters for sanitation and domestic use store water at or above 60°C (140°F). This controls Legionella growth risk, per CDC and ASHRAE 188 guidance. Thermostatic mixing valves reduce the temperature at the point of use to meet anti-scald requirements. Final setpoints depend on application type and local code. Hot water boilers for space or process heating typically supply at 82–93°C (180–200°F) for low-temperature hydronic systems. Final design temperatures depend on the heat distribution system, load profile, and OEM specification.

System architecture. A water heater connects to the cold water supply line and sends hot water to points of use. Water is consumed and replaced continuously. A boiler operates in a closed loop with a circulating pump. The same water recirculates. Make-up water replaces only losses from leaks or maintenance drains. Closed-loop water chemistry—pH, dissolved oxygen, inhibitor concentration, and total dissolved solids—must be actively managed to prevent corrosion and scale on heat transfer surfaces.

Water potability. Hot water from a water heater is safe for human contact and consumption. Water in a boiler circuit is not potable. Any connection between a boiler circuit and a potable supply requires either an approved backflow prevention device or a heat exchanger that fully separates the two fluid streams.

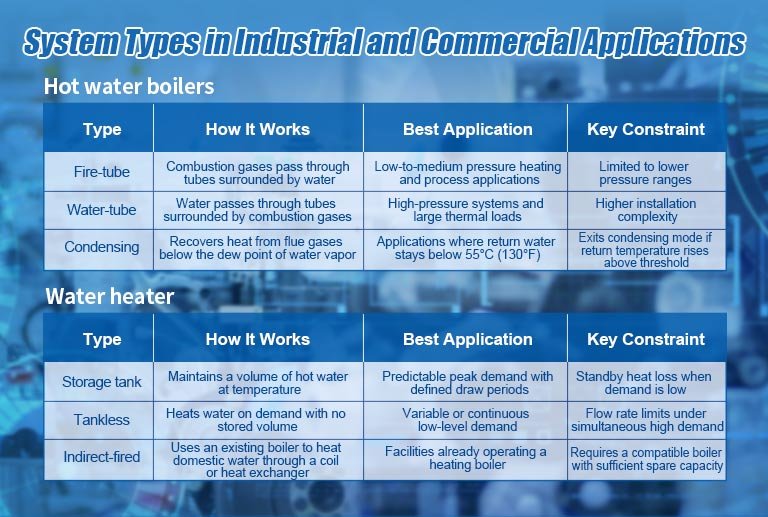

System Types in Industrial and Commercial Applications

Hot water boilers for commercial and industrial use include three main types.

Fire-tube boilers pass combustion gases through tubes surrounded by water. They are common in low-to-medium pressure heating and process applications.

Water-tube boilers pass water through tubes surrounded by combustion gases. They handle higher pressures and larger thermal loads.

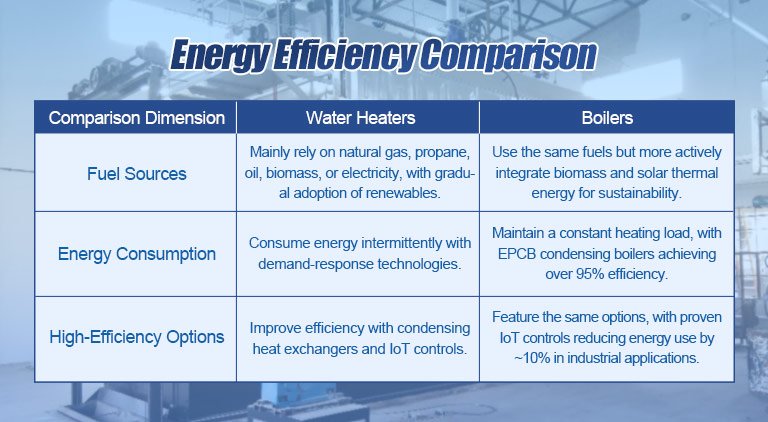

Condensing boilers recover heat from flue gases by cooling exhaust below the dew point of water vapor. This requires return water temperature to stay consistently below 55°C (130°F). If return temperature rises above this threshold, the boiler exits condensing mode. Actual efficiency depends on return temperature, system reset strategy, and part-load behavior—not boiler specification alone.

Hot water boilers for commercial and industrial use come in three main types.

Industrial water heaters come in three main types.

Storage tank models hold a volume of hot water at temperature. They suit applications with predictable peak demand periods.

Tankless models heat water on demand with no stored volume. They suit variable or continuous low-level demand where storage space is limited.

Indirect-fired models use an existing boiler to heat domestic water through a coil or plate heat exchanger. They are common in facilities that already operate a heating boiler and want to avoid a second fuel system.

Industrial water heaters come in three main types.

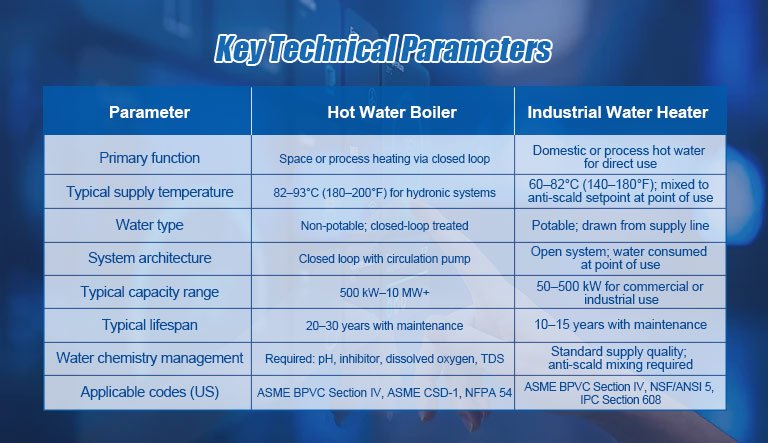

Key Technical Parameters

Final values depend on application load, fuel type, local code, and OEM specification.

Lifespan figures apply to properly maintained equipment under standard service conditions. Actual service life depends on water quality, operating hours, and maintenance compliance.

Applicable Codes and Standards

For commercial and industrial installations in the US, the following standards apply:

· ASME BPVC Section IV — heating boilers, hot water supply boilers, and potable water heaters

· ASME CSD-1 — controls and safety devices for automatically fired boilers

· NFPA 54 / NFPA 31 — fuel gas and oil-fired equipment installation

· NSF/ANSI 5 — material and performance requirements for equipment in contact with potable water

· IPC Chapter 6 / Section 608 — potable water protection, cross-connection control, and backflow prevention

· ASHRAE 188 / CDC guidance — Legionella risk management for building water systems

Final applicable standards depend on jurisdiction, installation type, and local amendments. We confirm the code basis for each project during the engineering review.

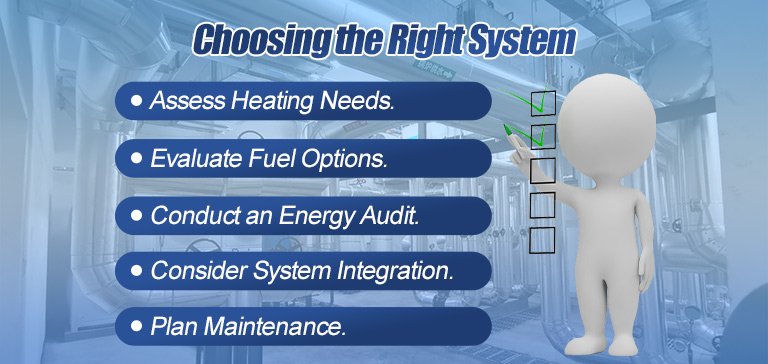

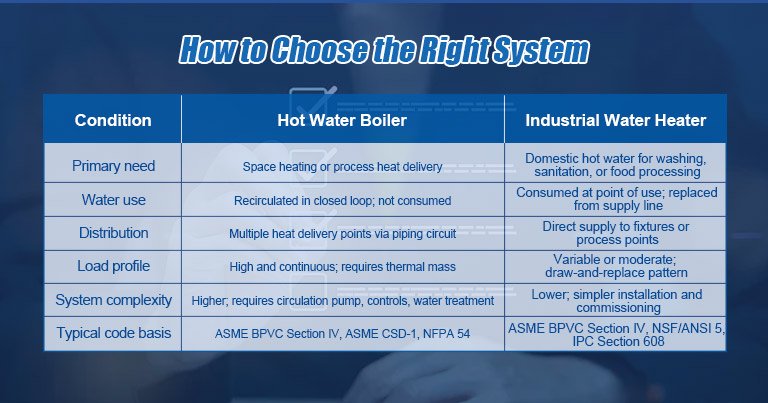

How to Choose the Right System

The decision follows from the application requirement.

Choose a hot water boiler when:

· The need is space heating through radiators, fan coil units, or radiant floor circuits

· The application requires sustained process heating at a controlled supply temperature

· The facility operates a closed-loop distribution system with multiple heat delivery points

· Load is high and continuous, requiring thermal mass and active circulation

Choose an industrial water heater when:

· The need is domestic hot water for washing, sanitation, or food processing

· Water is consumed at the point of use and replaced from the supply line

· The application does not involve space heating or process loop distribution

· A simpler system with lower installation complexity fits the load profile

Consider a combination approach when a facility needs both. The common solution is a dedicated heating boiler for the closed loop and a separate water heater—or an indirect coil on the boiler—for domestic supply. This keeps each system within its design function. We evaluate combined configurations during load analysis to confirm whether a single or dual-system approach fits the demand profile and space constraints.

For facilities that need both, the common approach is a dedicated heating boiler for the closed loop and a separate water heater—or an indirect coil on the boiler—for domestic supply. We evaluate combined configurations during load analysis to confirm whether a single or dual-system approach fits the demand profile and space constraints.

Conclusion

The functional boundary between a hot water boiler and an industrial water heater is clear: boilers deliver heat through a closed-loop circulation system; water heaters supply potable hot water for direct use. Operating temperature, water potability, system architecture, and code requirements all follow from this boundary.

In our work with industrial and commercial facilities, misidentifying this boundary early in the design or procurement process leads to the most costly corrections. A boiler connected to a potable water circuit creates a cross-connection violation. A water heater in a heating loop fails to meet load requirements and shortens equipment life. Both errors are avoidable with a clear load analysis and function definition before equipment selection.

If you are evaluating hot water boiler or water heater options for a commercial or industrial application, share your load profile, required supply temperature, fuel type, water quality data, and code jurisdiction with our team. We will confirm the right system configuration and align the specification to your site conditions.

FAQ

Can a hot water supply boiler serve both process heating and domestic hot water?

Yes, through an indirect-fired configuration. A plate heat exchanger or internal coil transfers heat from the boiler circuit to the domestic supply without fluid contact between the two systems. This meets the potable separation requirement under IPC Section 608.

When does a condensing boiler fail to deliver its rated efficiency?

When return water temperature rises above 55°C (130°F), the boiler exits condensing mode. At that point it runs at conventional efficiency levels. System design and control reset strategy determine whether condensing operation holds in practice.

What water chemistry limits apply to a closed-loop boiler system?

Key parameters are pH (typically 7.0–9.0 for steel systems), dissolved oxygen, total dissolved solids, and inhibitor concentration. Final limits depend on construction materials, operating pressure, and the water treatment program in use. Verify against OEM specification.

What factors most affect lifespan for each system?

Water quality and maintenance compliance drive lifespan for both. Boiler lifespan is more sensitive to water chemistry—poor treatment accelerates heat exchanger corrosion. For tank-type water heaters, sediment control and anode rod condition are the primary variables, especially in hard-water areas.

How reliable are published installation cost ranges?

Cost depends on capacity, fuel type, controls, site conditions, and local labor rates. Published ranges vary by region and configuration. A site-specific quote based on a confirmed load calculation is more reliable than general estimates.
