Product Advantage
  • 1

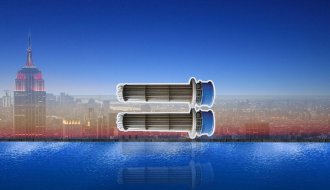

    Th electric hot water boiler adopts international advanced high-quality electric heating pipe with low surface load, high thermal efficiency and long service life. The electric heating group adopts multi-level control, which can be started or stopped manually. It not only prevents the excessive starting current from impacting the electric circuit, but also can adjust the power of the boiler flexibly at multiple levels. According to the user's actual heat load, adjust flexibly to help the user save the operation cost.

  • 2

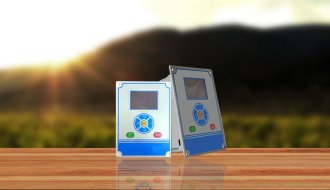

    The electric hot water boiler adopting microcomputer controller with LCD display screen, the running state of the boiler can be clearly visible. All operations are done easily through buttons. The outside of the hot water boiler is equipped with ammeters, which can check the current situation at any time, so that the operation is clear at a glance.

  • 3

    The electric hot water boiler has advanced circuit design, the circuits are neat and reasonable, and it is convenient for operation and maintenance. All the electrical components are from world-renowned brand, such as SIEMENS, Schneider, HONEYWELL, etc. The user can designate the brand according to the local brand habits.

  • 4

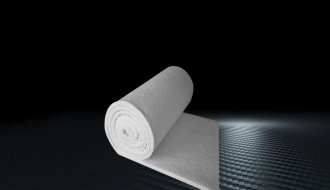

    For the boiler thermal insulation layer, it adopts aluminum silicate as the main thermal insulation material with high temperature resistance and excellent performance, which has low thermal conductivity, good cold resistance and heat resistance, greatly extending the service life of the boiler.

  • 5

    The boiler uses electricity as fuel, environmental protection, energy saving and pollution-free. It is widely used in schools, restaurants, hospitals, hotels, laundries, food factories, laboratory, swimming pools, fitness centers, bath centers, central heating, etc.

Technical Parameters

Find the capacity of the industrial high efficiency electric hot water boiler you want and check other parameters of the boiler as a reference.

Item/Type

Automatic Vertical Electric Heating Hot Water Boiler

Rated thermal power

KW

60

90

120

180

240

x104Kcal/h

5

7

10

15

20

Working pressure MPa

0

Power consumption

kw*n

15*4

15*6

24*5

24*18

24*10

Supply water temperature ℃

85

Return water temperature ℃

60

Heating efficiency %

98

Heating area m²

500

700

1000

1500

2000

Boiler water capacity m3

0.135

0.163

0.299

0.345

0.426

Boiler size

L  mm

1000

1000

1300

1500

1500

W  mm

1100

1100

1100

1100

1100

H  mm

1100

1100

1100

1500

1550

Boiler weight kg

200

210

280

400

550


No.

Item

Example/Issuer

Qty

Unit

1

Boiler Drawings

General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing.

1

Set

2

Boiler Quality Certificate

Issued by the boiler inspection department of China government.

1

Set

3

Certificate of Origin

Such as CO, Form E, Form F, Form A, etc.

1

Set

4

Boiler Thermodynamic Calculation Book

Issued by the boiler supplier.

1

Set

5

Boiler Strength Calculation Book

Issued by the boiler supplier.

1

Set

6

Installation & Operation Instruction

Issued by the boiler supplier.

1

Set

Company Strength

EPCB Boiler is a professional boiler manufacturer in China. Focus on industrial boiler production and sales for 68 years. Our main products are coal-fired boilers, oil gas boilers, biomass boilers, electric boilers, and power plant boilers. EPCB Boiler has more than 15000 users, and the users are covering more than 100 countries and regions. EPCB Boiler is well received by users, because of its features energy saving, environmental protection, helping users save money and High quality After services. We have professional boiler engineers to customize the boiler system for you so that you and your enterprise can produce higher quality products at a lower cost! Make your enterprise more competitive!

  • Send You Inquiry

  • Give You Boiler Solution

  • Place The Order

  • Get Your Boiler

Ask for Boiler Solution Suited Your Condition!

Tell us your need about boiler capacity in your industry, we will recommend the most suitable boiler model for you!

Consult online customer service
Boiler fuel:
Ultimate Quality, Open Up Infinite Possibilities

Our products mainly include boiler system solutions, boiler products, and boiler-related services. Among the boiler products are thermal oil boilers, steam boilers, hot water boilers, and industrial electric boilers. We will match you with a suitable system solution according to your needs and assist you in completing the matching, installation and commissioning of related equipment.
