Capacity: 30~1400×104Kcal/h（350~16300KW）
Fuel: Diesel, Fuel Oil, Heavy Oil, Natural Gas, LPG, City Gas, Coke Oven Gas, Methane Gas, Biogas, Furnace Oil, etc.

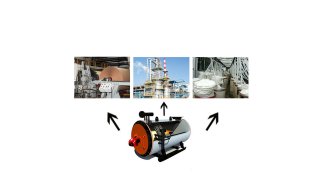

Application: Petrochemical Industry, Oil Industry, Synthetic Fiber Industry, Textile Printing and Dyeing Industry, Plastic and Rubber Industry, Paper Industry, Wood Industry, Building Materials Industry, Machinery Industry, Food Industry, Chemical Industry…

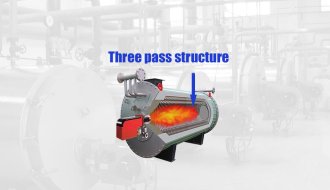

The thermal oil boilers system adopts a two-coil structure, three-pass flue gas, compact design while increasing the heating surface, reducing the size of the boiler, saving steel, and reducing boiler costs. The floor space is reduced and the cost of the boiler room is saved.
Boiler room design, boiler system solutions, a full set of services, on-site guidance installation and commissioning, furnace staff training, and other value-added services. Let you experience what a real boiler service is! Want to know why EPCB is a household name? Because we did it!

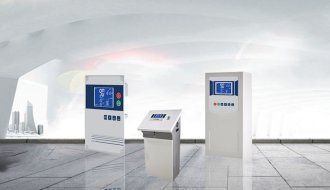

A variety of safety interlock protection, various instrument valve monitoring system, make the boiler run more safely. One-touch operation on PLC touch screen makes boiler operation easier. To save you more labor costs, at the same time, the normal operation makes the effective life of the equipment longer!

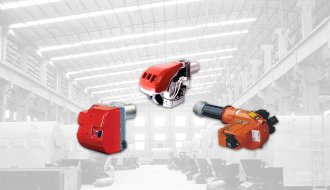

Adopt Riello burner, two-stage fire, full combustion. The seal between the burner interface and the coil tube adopts the labyrinth technology, the sealing is very good, and the expansion space is large! Increase the service life of the burner and improve the thermal oil boilers system thermal efficiency!

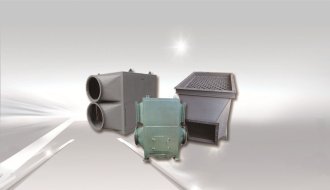

Equipped with economizers, air preheater, etc., coupled with an efficient boiler structure, the thermal efficiency of the thermal oil boilers system can reach 97%! Because the fuel is fully burned, the flue gas is all carbon dioxide and water vapor, and only a small amount of NOx and Sox. The emissions are fully up to the standard!
Find the capacity of the oil/gas-fired thermal oil boilers system you want and check other parameters of the boiler as a reference.
Item/Type | Oil/Gas Fired Thermal Oil Boiler | |||||||||||||||||||
Rated thermal power | kw | 350 | 600 | 900 | 1200 | 1500 | 1800 | 2300 | 2900 | 3500 | 4700 | 5900 | 7000 | 8200 | 9400 | 10500 | 12000 | 14000 | 15000 | 16000 |
×104(Kcal/h) | 30 | 50 | 75 | 100 | 130 | 150 | 250 | 250 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | 1300 | 1400 | |
Boiler thermal efficiency % | 92 | 92 | 92 | 92 | 92 | 93 | 93 | 93 | 93 | 93 | 93 | 93 | 93 | 93 | 94 | 94 | 94 | 94 | 94 | |
Design pressure MPa | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |
Max. working temperature ℃ | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | |
Medium circulation flow m3/h | 40 | 58 | 100 | 100 | 100 | 160 | 160 | 200 | 200 | 260 | 300 | 340 | 400 | 520 | 600 | 600 | 680 | 800 | 800 | |
Medium volume m3 | 0.4 | 0.6 | 0.6 | 0.8 | 1.2 | 2.1 | 2.6 | 3.5 | 7.8 | 8.4 | 8.8 | 10.5 | 11.2 | 11.5 | 13 | 15 | 18 | 21 | 23 | |
Main pipe diameter DN | 100 | 100 | 125 | 125 | 125 | 150 | 150 | 200 | 200 | 200 | 250 | 250 | 250 | 300 | 300 | 300 | 350 | 350 | 350 | |
Installation capacity kw | 14.5 | 18 | 31 | 37.5 | 49.5 | 57.5 | 61.5 | 75 | 75 | 98.5 | 121.5 | 148.5 | 155 | 195 | 235 | 235 | 295 | 341 | 341 | |
Fuel type | Diesel, Fuel Oil, Heavy Oil, Natural Gas, LPG, City Gas, Coke Oven Gas, Methane Gas, Biogas, Furnace Oil, etc. | |||||||||||||||||||
Fuel consumption | Diesel kg/h | 29.79 | 51.06 | 76.59 | 102.12 | 127.65 | 151.54 | 193.63 | 244.15 | 294.66 | 395.68 | 496.71 | 589.32 | 690.34 | 791.37 | 874.57 | 999.51 | 1166.09 | 1249.39 | 1332.68 |
Natural gas Nm³/h | 36.42 | 62.44 | 93.66 | 124.88 | 156.11 | 185.31 | 236.79 | 298.56 | 360.33 | 483.87 | 607.41 | 720.66 | 844.20 | 967.74 | 1069.49 | 1222.27 | 1425.98 | 1527.84 | 1629.70 | |
Boiler size m | 1.2×2.4 | 1.7×3 | 1.82×3.5 | 1.92×4 | 1.95×4.3 | 2.4×4.3 | 2.52×5.3 | 2.8×6.3 | 2.92×6 | 3.23×6.7 | 3.26×7.45 | 3.26×7.9 | 3.62×9 | 3.6×9.48 | 3.65×10.4 | 3.65×10.6 | 3.98×11.5 | 4×12.2 | 4.06×12.5 | |
Circulating oil pump | Model WRY | 80-50-180 | 100-65-190 | 100-65-230 | 100-65-240 | 100-65-257 | 125-80-250 | 125-80-250 | 125-100-250 | 125-100-250 | 125-100-257 | 125-100-260 | 150-125-270 | 125-100-250 | 125-100-257 | 125-100-260 | 125-100-260 | 150-125-270A | 150-125-280A | 150-125-280 |
Flow m³/h | 40 | 60 | 100 | 100 | 100 | 160 | 160 | 200 | 200 | 260 | 300 | 340 | 200×2 | 260×2 | 300×2 | 300×2 | 340×2 | 400×2 | 400×2 | |
Head m | 40 | 38 | 55 | 70 | 80 | 60 | 60 | 60 | 60 | 70 | 70 | 76 | 60 | 70 | 70 | 70 | 76 | 78 | 78 | |
Power kw | 7.5 | 11 | 22 | 30 | 37 | 45 | 45 | 55 | 55 | 75 | 90 | 110 | 55×2 | 75×2 | 90×2 | 90×2 | 110×2 | 132×2 | 132×2 | |
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
EPCB Boiler is a professional boiler manufacturer in China. Focus on industrial boiler production and sales for 68 years. Our main products are coal-fired boilers, oil gas boilers, biomass boilers, electric boilers, and power plant boilers. EPCB Boiler has more than 15000 users, and the users are covering more than 100 countries and regions. EPCB Boiler is well received by users, because of its features energy saving, environmental protection, helping users save money and High quality After services. We have professional boiler engineers to customize the boiler system for you so that you and your enterprise can produce higher quality products at a lower cost! Make your enterprise more competitive!
