What is a Puff Back in a Boiler?

As EPCB, a leading manufacturer of industrial steam boilers, I've witnessed numerous boiler-related incidents. One of the most alarming is a "puff back," a dangerous explosion caused by unburned fuel igniting improperly in the combustion chamber.

Industrial boilers, especially those using oil, are prone to such incidents due to their complexity and continuous operation. A puff back can release soot and smoke into the facility, causing damage and posing hazardous conditions.

Understanding the causes of a puff back and how to prevent it is crucial for maintaining a safe and efficient heating system. In this article, we'll explore the risks associated with industrial boilers and provide insights into preventing these disruptive events.

What is a Puff Back in a Boiler?

A puff back in an industrial boiler is an explosion that occurs inside the heating system, often due to a misfire. At EPCB, we define a puff back as a specific type of malfunction that occurs in industrial boilers when unburned fuel accumulates in the combustion chamber and ignites improperly, causing a small explosion or backfire.

The combustion process in industrial boilers is designed to be precisely controlled, but when fuel doesn't ignite properly or when excess fuel builds up, a puff back can occur during the next ignition cycle. We classify puff backs into two categories: minor puff backs that release small amounts of soot and may occur repeatedly, and severe puff backs that can cause significant damage to both the boiler system and surrounding equipment.

In our experience with industrial steam boilers, we've observed that oil-fired systems are more susceptible to puff backs than gas-fired systems because oil doesn't dissipate as readily as gas and can accumulate in the combustion chamber. The combustion chamber is where fuel and air mix and ignite in a controlled manner, but when this process is disrupted, the resulting puff back can force soot, smoke, and combustion gases through the exhaust system and into the facility.

As industrial boiler specialists, we've designed our EPCB systems with multiple safeguards to minimize the risk of puff backs. Understanding the fundamentals of how and why they occur is essential for all industrial boiler operators to prevent minor puff backs from becoming severe incidents.

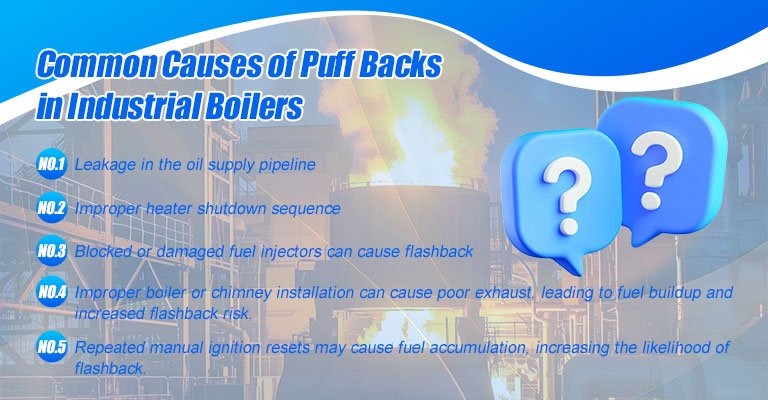

Common Causes of Puff Backs in Industrial Boilers

Our experience at EPCB has shown that puff backs are often the result of specific issues within the boiler system. As manufacturers of industrial steam boilers, we've identified several common causes that industrial facility managers should be aware of to prevent such incidents.

One of the primary causes of puff backs is leaks in the oil supply piping. These leaks allow air to enter the system, creating bubbles that expand after shutdown. This forces unburned oil into the combustion chamber, where it accumulates over multiple cycles, increasing the risk of a puff back during ignition.

Improper heater shutdown sequences are another significant factor. When the shutdown sequence is not followed correctly, oil can continue to flow into the combustion chamber after the burner has stopped. This creates a dangerous accumulation of unburned fuel, which can lead to a puff back when the system attempts to ignite again.

Clogged or damaged oil spray nozzles can cause puff backs. They prevent fuel from being atomized properly, leading to uneven combustion. This can result in unburned oil accumulation, causing a puff back.

Problems with combustion gas venting, like blocked chimneys or exhaust systems, create pressure imbalances. These imbalances lead to improper combustion and fuel accumulation. Poor initial installation of industrial boilers or their chimney systems can also cause chronic problems with draft and ventilation. This increases the chance of puff backs.

Excessive manual system resets after failed ignition attempts can flood the combustion chamber with unburned fuel. This creates ideal conditions for a significant puff back. At EPCB, we design our industrial boilers with sophisticated fuel delivery systems and safety controls to minimize these common causes. However, proper maintenance is crucial to prevent puff backs, regardless of boiler design.

Understanding these common causes helps industrial facility managers take proactive steps. They can prevent puff backs, ensuring safer and more efficient operation of their boiler systems.

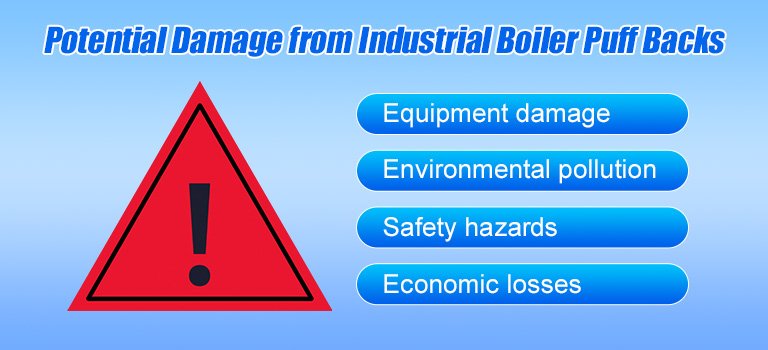

Potential Damage from Industrial Boiler Puff Backs

At EPCB, we've seen how puff backs in industrial boilers lead to extensive damage and costly repairs. The severity of a puff back depends on the type of heater, how much fuel gets ignited in the combustion chamber, and what caused the puff back to occur.

A minor puff back may release a small amount of soot, while a severe puff back can release soot throughout the facility. This can damage heater components. The primary concern is damage to critical boiler system components, including burners, heat exchangers, refractory materials, and control systems. These can require costly repairs or complete replacement.

When a severe puff back occurs, soot and smoke can spread throughout the facility via exhaust systems and air ducts. This contaminates sensitive industrial equipment and machinery. In food processing, pharmaceutical, and electronics manufacturing facilities, even minor soot contamination can compromise product quality and safety.

Beyond the immediate physical damage, puff backs create serious safety hazards. They include potential fire risks from dislodged vent connectors and dangerous carbon monoxide leaks if exhaust systems are compromised. The financial implications extend far beyond repair costs. Production downtime can result in substantial revenue losses, missed deadlines, and damaged client relationships.

EPCB designs our industrial steam boilers with robust safety systems to prevent these costly and dangerous incidents. We protect both your equipment investment and operational continuity. By understanding the potential damage caused by puff backs, industrial facilities can take proactive steps to mitigate these risks. This ensures a safer, more reliable operation.

Warning Signs That Indicate a Potential Puff Back

As we continue to explore the critical aspects of industrial boilers, it's essential to recognize the warning signs that indicate a potential puff back. At EPCB, we've identified several critical warning signs that facility managers should monitor to prevent puff backs in their heating systems.

One of the most visible warning signs is oil leaks around the combustion chamber. These leaks often appear as small puddles or oil stains near fittings, valves, or at the base of the industrial boiler. Unusual noises during startup or after shutdown, such as banging, rumbling, or delayed ignition sounds, can also indicate fuel accumulation issues in the combustion chamber.

The presence of sooty residue on or around the boiler is another telltale sign of incomplete combustion, which can lead to puff backs. Strange odors, especially strong fuel smells or unusual burning odors, should never be ignored. They typically indicate improper combustion or fuel leakage within the system.

Inconsistent performance of the industrial boiler, such as difficulty maintaining temperature, pressure fluctuations, or frequent cycling, can signal underlying issues. These might lead to a puff back. At EPCB, we recommend implementing regular inspection protocols to identify these warning signs early. This prevents costly damage and dangerous puff back incidents.

Our industrial boilers include monitoring systems that can help detect many of these warning signs automatically. However, visual inspections by trained personnel remain an essential component of preventive maintenance.

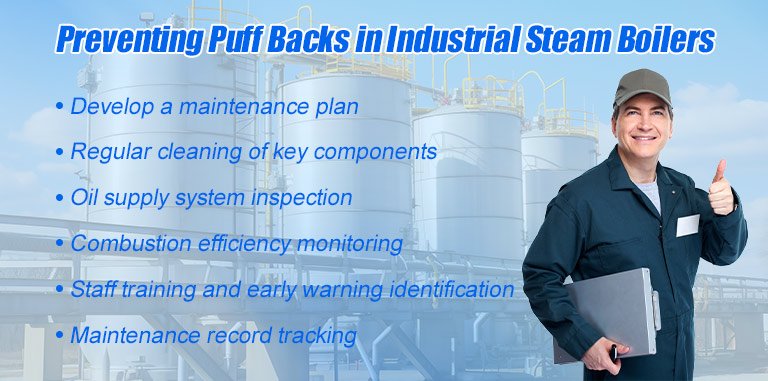

Preventing Puff Backs in Industrial Steam Boilers

At EPCB, we know how vital it is to prevent puff backs in industrial steam boilers. This is key for maintaining safety and efficiency. A thorough maintenance strategy can greatly reduce puff back risks.

Regular professional maintenance is essential. We suggest setting up maintenance schedules that fit your specific boiler type, usage, and environment. This approach ensures peak performance and safety.

Cleaning boiler components properly is crucial. This includes the burner, combustion chamber, and heat exchanger surfaces. Regular checks of oil supply lines and connections by experts can spot wear or leaks early.

Regularly testing and adjusting combustion efficiency is vital. This ensures fuel is fully burned, reducing puff back risks. Training staff to spot early warning signs is also critical.

EPCB's maintenance protocols include detailed documentation of all activities. This helps track trends and spot recurring issues before they cause puff backs. By following these steps and working with experts, your boiler will operate safely and efficiently.

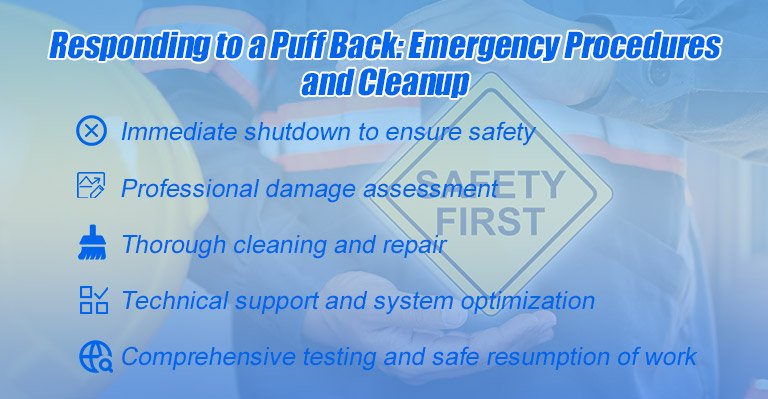

Responding to a Puff Back: Emergency Procedures and Cleanup

Responding to a puff back requires immediate safety steps, thorough damage assessment, and professional cleanup. At EPCB, we know that despite preventive efforts, puff backs can still happen. Knowing how to act quickly and effectively is crucial to minimize damage and downtime.

The first step after a puff back is to safely shut down the boiler. This prevents further combustion issues and potential secondary puff backs. We recommend having a facility-wide emergency response plan that includes evacuation procedures if there's significant smoke or carbon monoxide detection.

After ensuring safety, assess the damage to the boiler. This should be done by qualified technicians who can evaluate both visible and hidden issues. Professional cleanup and restoration require specialized equipment and techniques to remove soot without causing further damage.

As your industrial steam boiler manufacturer, EPCB can help with recovery and prevention. We provide technical support, replacement parts, and system modifications to address puff back causes. Our comprehensive post-puff back analysis services help identify and fix issues to prevent future incidents.

To get your operations back online, follow a methodical approach. This includes thorough testing of the repaired boiler system before resuming full operations. This ensures safety and proper functionality.

FAQ

What causes a puff back in an oil-fired boiler?

A puff back occurs when accumulated oil or fuel ignites in the combustion chamber. This is often due to issues like improper oil spray, inadequate airflow, or a faulty ignition system.

What are the warning signs of a potential puff back?

Warning signs include unusual noises, excessive soot or smoke, oil leaks, and irregular flame patterns. Regular maintenance can help identify these issues before they escalate.

How can I prevent puff backs in my industrial steam boiler?

Preventing puff backs requires regular maintenance. This includes cleaning the combustion chamber and ensuring proper oil supply and airflow. It's also important to inspect and replace worn-out parts.

What damage can a puff back cause to my boiler and surrounding area?

A puff back can cause significant damage to the boiler, furnace, and surrounding structures. This includes walls, carpets, and furniture due to the explosive force and soot and smoke release.

How should I respond to a puff back in my boiler?

Upon experiencing a puff back, it's crucial to act swiftly. First, shut down the boiler to prevent further damage. Next, clear the area to ensure safety. Lastly, reach out to a certified service technician. They will evaluate the situation and undertake the necessary repairs and cleaning.

Can a puff back lead to safety hazards like carbon monoxide poisoning?

Indeed, puff backs can pose significant safety risks, including the emission of carbon monoxide. This gas, being colorless and odorless, is particularly dangerous in confined spaces. Ensuring proper ventilation and regular maintenance is essential to minimize these hazards.

How can I restore my boiler to working condition after a puff back?

To restore your boiler's functionality, a detailed inspection is required. This should be followed by a thorough cleaning and any necessary repairs or replacements. It's imperative to have a professional service technician handle this process. They will ensure your boiler operates safely and efficiently.
