In June 2025, EPCB boiler successfully provided a 5 t/h oil-gas steam boiler system for a star-rated hotel in Manila, the capital of the Philippines. This project mainly serves the domestic hot water in hotel rooms, central kitchen cooking and linen washing system. It is another high-quality model project created by EPCB in the hotel industry in Southeast Asia, and further consolidates the brand's influence in the Philippine market.
This project is not only the delivery of a set of equipment, but also a system upgrade solution around "energy saving, safety, stability and intelligence". From pre-technical investigation and scheme design, to manufacturing, export logistics, to on-site installation, debugging and operation training, EPCB has won high recognition from customers with its professional engineering ability and thoughtful overseas service.
High-end hotels put forward higher requirements for steam systems
With the continuous development of tourism in the Philippines, Manila, as the national political, economic and tourism center, has put forward higher requirements for the stability and economy of logistics energy system.
The hotel has hundreds of rooms, a central kitchen, a multi-functional banquet hall and a large laundry system, with concentrated steam load and high frequency of use.
After years of operation, the original steam equipment gradually exposed the following problems:
High energy consumption, low gas utilization rate and rising operating costs.
Steam pressure fluctuates obviously, which affects the stable operation of kitchen and washing equipment.
Insufficient automation and high cost of manual duty.
Equipment aging, security risks gradually increase.
After comprehensive evaluation of equipment status and future operation planning, the customer decided to upgrade the steam system in an all-round way, and hoped to introduce a boiler system with high efficiency, energy saving, high degree of automation and stable operation.

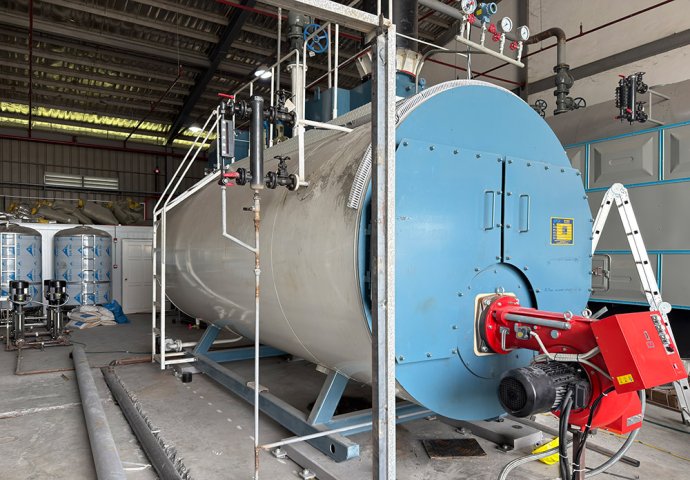

Technical selection: 5-ton horizontal three-return oil-gas steam boiler
After several rounds of technical communication and load accounting, EPCB recommended a 5-ton horizontal three-return oil-gas steam boiler system for customers.
The rated evaporation capacity of the boiler is 5t/h, and the mature and stable three-return wet back structure design is adopted. This series of boilers are famous for their safety, reliability, high thermal efficiency and convenient maintenance, and are widely used in food, medicine, chemical industry and hotel industries.
1. Core technical parameters
Rated evaporation: 5 tons/hour
Design pressure: meet the continuous and stable steam supply demand of the hotel.
Fuel type: natural gas/light oil dual fuel is optional.
Thermal efficiency: ≥92%
Structural form: horizontal three-return wet back structure
2. Structural advantages
Three-return structure design makes flue gas exchange heat in the furnace and flue pipe for many times, fully absorbs heat and improves fuel utilization. At the same time, the wet back structure effectively reduces the temperature difference stress of the rear smoke box and prolongs the service life of the equipment.
High-quality steel plate and automatic submerged arc welding technology ensure the safety and reliability of boiler body pressure. Before leaving the factory, carry out strict water pressure test and joint debugging of the whole machine to ensure that each equipment meets international standards.
3. Imported burner and intelligent control system
This project is equipped with burners imported from internationally renowned brands, and matched with the proportional adjustment system to realize the accurate ratio of gas and air, so that the combustion is more sufficient and stable.
The control system adopts intelligent PLC automatic control platform, which can realize:
Fully automatic start-stop
Automatic water level control
Automatic pressure regulation
Fault alarm and interlock protection
Remote monitoring interface reservation
Multiple safety protection systems, including low water level protection, overpressure protection, flameout protection, abnormal gas pressure protection, etc., provide reliable guarantee for the hotel's 24-hour continuous operation.
Systematic solution: not only the boiler, but also the overall steam system optimization
EPCB knows that the stable operation of boiler system depends not only on the main engine itself, but also on the matching and installation quality of the whole steam system.
Therefore, in this project, EPCB provides a complete system solution, including:
Boiler body and combustion system
Feed water pump and water treatment system
Suggestions on steam distribution and pipeline design
Optimization scheme of condensed water recovery
Technical guidance for foundation construction
1. Strictly control the water quality treatment.
Hotel system steam is mainly used for hot water heat exchange and washing equipment, which requires high water quality. EPCB provides suggestions on water quality analysis according to the local water source situation, and guides customers to improve the configuration of softened water system to avoid scaling and corrosion problems and prolong the service life of boilers.
2. Gas pipeline and safety specification
In the installation stage, EPCB engineers mainly review the gas pipeline layout, valve setting and safety distance to ensure compliance with local safety regulations. All key nodes are strictly inspected to ensure the safe operation of the system.
3. Automatic control system alignment
The boiler system and the original energy management system of the hotel are jointly tested to ensure the accurate transmission of pressure signals and alarm signals and realize centralized management.
Professional delivery process: guarantee from manufacturing to overseas service.
1. Customized production and strict quality inspection
After the equipment is manufactured and tested in EPCB factory, complete performance testing and trial operation are carried out. Each boiler is accompanied by a complete quality report and technical documents to ensure that the export information is complete.
2. Export declaration and maritime logistics
EPCB professional foreign trade team is responsible for customs declaration, booking, shipping and document preparation, to ensure the safe arrival of the equipment at Philippine ports. The whole logistics process is transparent and efficient.
3. Field technical guidance and debugging

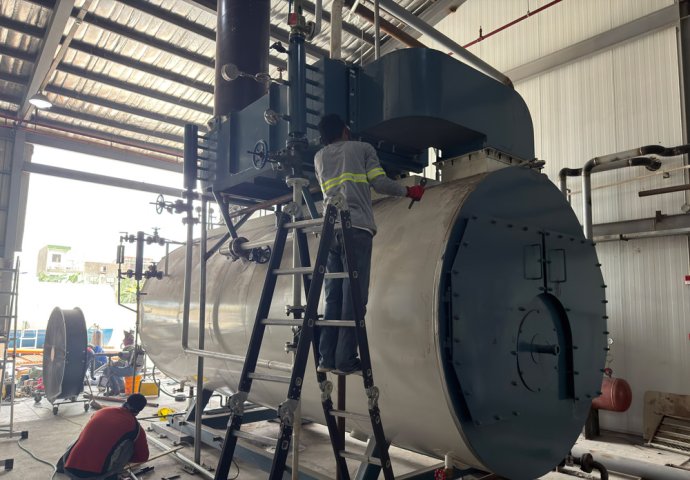

After the equipment arrived in Manila, EPCB engineers cooperated with the on-site technical team remotely to guide the foundation construction, boiler positioning, pipeline connection and electric control wiring.
In the debugging stage, the key points are as follows:
Water level control system test
Combustion parameter adjustment
Steam pressure stability test
Simulation test of safety protection system
Finally, the system passed the one-time acceptance and was put into use smoothly.
Customer evaluation: professionalism and service win trust
Customers highly value EPCB in the following aspects:
The technical scheme is professional and rigorous.
Efficient communication and timely response.
Mature export process
Detailed installation and debugging guidance
After-sales service is guaranteed
The successful implementation of this project not only created economic benefits for customers, but also established EPCB's high-quality brand image in the Philippine hotel industry.
EPCB boiler: a global supplier of industrial steam solutions
As a professional boiler manufacturer, EPCB has long focused on the research and development and manufacture of oil-fired gas boilers, biomass boilers and container boiler systems. Products are exported to Asia, Africa, South America and other countries and regions, and have rich application experience in textile, food, medicine, chemical industry and hotel industries.
The success of this Manila hotel project has once again verified the engineering implementation ability and system integration ability of EPCB boiler in overseas markets.
Conclusion
This boiler project in Manila, Philippines is not only an equipment upgrade, but also a demonstration of brand strength. Through efficient and energy-saving product performance, rigorous and standardized engineering management and meticulous and thoughtful overseas services, EPCB has successfully helped customers to optimize and upgrade their energy systems.
In the future, EPCB will continue to deepen the Southeast Asian market, provide safe, energy-saving and intelligent steam system solutions for more hotels and industrial enterprises, and help customers achieve sustainable development.
If you are looking for a reliable gas-fired steam boiler supplier, EPCB boiler will be a reliable partner.
