Fire Tube vs Water Tube Boiler: Industrial Boiler Comparison

Choosing between fire tube and water tube boilers for industrial needs is a crucial decision. As a leading industrial steam boiler manufacturer, EPCB emphasizes the importance of selecting the right boiler type. This choice significantly impacts your operational efficiency, costs, and steam generation reliability.

Choosing the right boiler is vital for your operations. In this comparison, we'll delve into the differences between fire tube and water tube boilers. This will help you make an informed decision for your industrial needs.

Understanding the differences between fire tube and water tube designs is key. Our expertise in industrial boiler manufacturing will guide you through their technical aspects, performance, and practical applications.

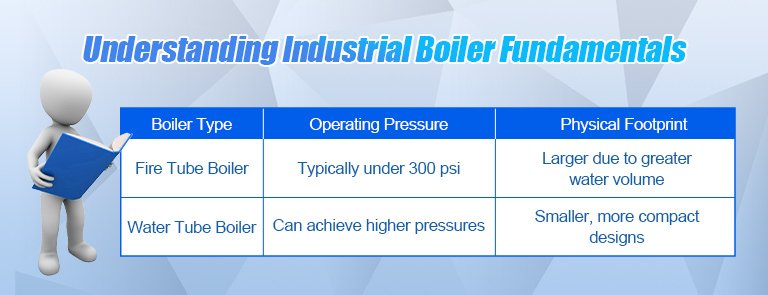

Understanding Industrial Boiler Fundamentals

As an expert in industrial boilers at EPCB, I've learned the importance of selecting the right boiler type. Industrial boilers are crucial in various manufacturing processes. Their selection can greatly impact operational efficiency and productivity.

Boilers are essential in industrial settings, providing steam or hot water for processes. The operating pressure is a key consideration. Fire tube boilers operate at lower pressures (under 300 psi), while water tube designs can achieve higher pressures for power generation and certain industrial processes.

Several factors must be considered when selecting an industrial boiler. Steam demand patterns, pressure requirements, and available space are critical. The physical footprint of a boiler is also important, with fire tube boilers generally requiring more space due to their larger water volume.

Other key considerations include fuel efficiency, emissions compliance, water quality management, maintenance accessibility, startup time, and load response characteristics. Fire tube models have a larger water volume, making them optimal for scenarios with high demand peaks.

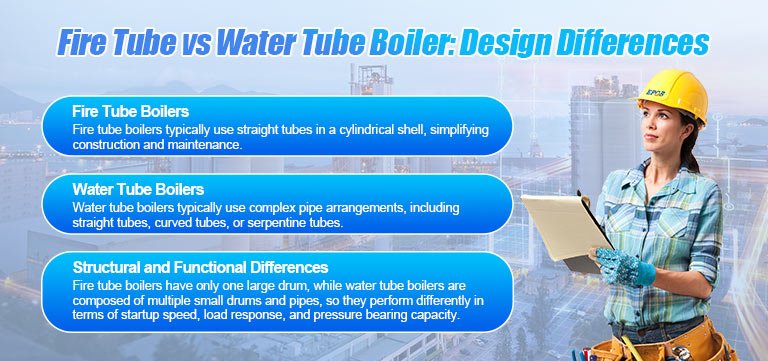

Fire Tube vs Water Tube Boiler: Design Differences

Understanding the design differences between fire tube and water tube boilers is crucial. At EPCB, we've observed that the fundamental structural difference impacts their performance and application suitability.

Fire Tube Boiler Design and Operation

Fire tube boilers have a design where combustion gases pass through tubes surrounded by water. This design typically employs straight tubes within a cylindrical shell, simplifying construction and maintenance. The heat exchanger configuration is straightforward, with the tubes serving as the pathway for combustion gases.

Water Tube Boiler Design and Operation

Water tube boilers have water flowing through the tubes, with combustion gases passing around them. They often feature complex tube arrangements, including straight, bent, or sinuous configurations. This allows for greater flexibility in design and operation. Modern designs have incorporated manifolds to enhance flow capabilities and address heat exchange deficiencies.

Structural and Functional Distinctions

The drum configuration differs significantly between the two types. Fire tube boilers have a single large drum, whereas water tube boilers feature multiple smaller drums connected by tube arrays. These structural differences translate into functional distinctions in terms of startup time, response to load changes, and pressure capabilities.

Comparative Analysis: Advantages and Limitations

In our analysis at EPCB, the distinctions between fire tube and water tube boilers reveal unique advantages and limitations. As we delve into the specifics of each type, it becomes clear that their design differences significantly impact their performance and application.

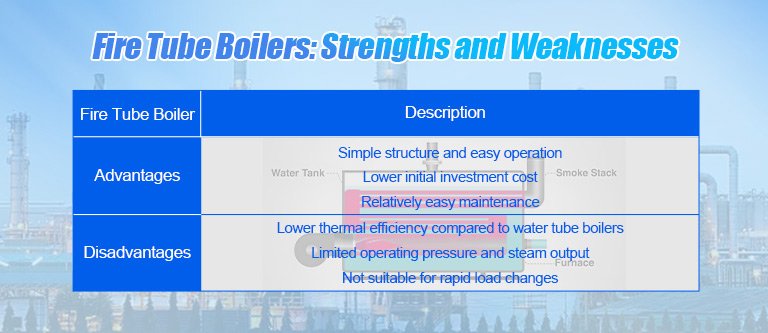

Fire Tube Boilers: Strengths and Weaknesses

Fire tube boilers are known for their simplicity and ease of operation. They are typically more cost-effective upfront compared to water tube boilers.

Ideal Applications for Fire Tube Boilers

These boilers are well-suited for applications where the steam demand is relatively stable and not excessively high. They are commonly used in smaller industrial settings.

Limitations to Consider

However, fire tube boilers have limitations, including lower efficiency compared to water tube boilers and limitations in terms of pressure and output.

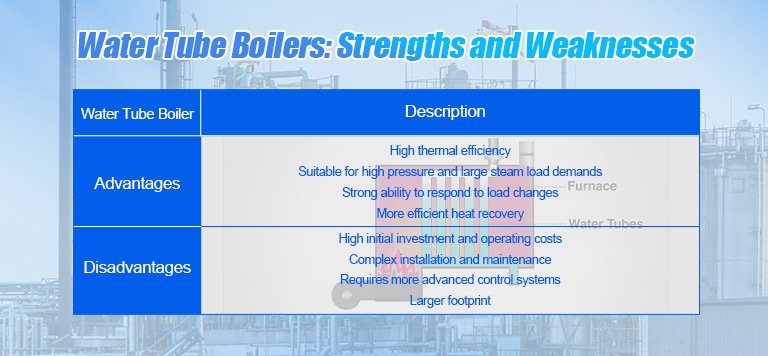

Water Tube Boilers: Strengths and Weaknesses

Water tube boilers, on the other hand, offer higher efficiency and greater flexibility in terms of output and pressure. They can handle higher demands and are more adaptable to varying load conditions.

Ideal Applications for Water Tube Boilers

Water tube boilers are ideal for large-scale industrial applications where high-pressure steam is required. They are also more efficient in recovering heat from combustion gases.

Limitations to Consider

Despite their advantages, water tube boilers are generally more complex and costly to install and maintain. They require more sophisticated controls and are typically larger.

Performance Comparison: Efficiency, Pressure, and Output

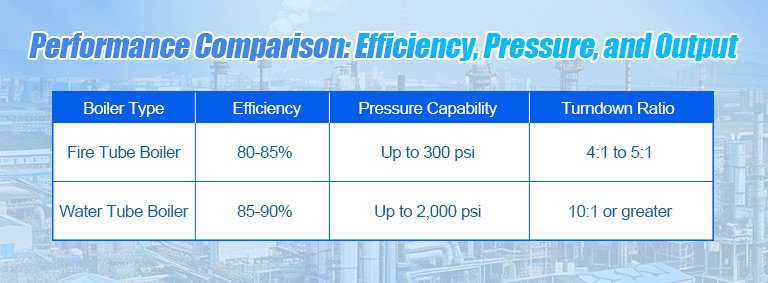

A key aspect of our analysis compares the performance of fire tube and water tube boilers in terms of efficiency, pressure, and output. The following table summarizes our findings:

Our analysis at EPCB highlights that while both types of boilers have their strengths and weaknesses, water tube boilers generally offer higher efficiency and greater flexibility. However, fire tube boilers remain a viable option for smaller, less demanding applications.

Conclusion: Selecting the Right Industrial Boiler for Your Needs

At EPCB, we emphasize the importance of evaluating your steam needs before choosing between fire tube and water tube boilers. As your industrial steam solution partner, we suggest considering operational patterns, facility constraints, and specific steam demands. This thorough assessment is crucial for making an informed decision.

For applications with pressures below 300 psi and moderate steam volumes, our fire tube boilers are often the most economical choice. However, when higher pressures, superheated steam, or rapid response to load changes are required, our water tube boiler designs typically offer superior performance.

Today's industrial boiler market features sophisticated hybrid designs that combine the best elements of both technologies. At EPCB, we're committed to providing customized solutions that match your steam requirements, fuel availability, and operational patterns. Factors beyond boiler type, such as combustion control systems and preventive maintenance programs, also contribute to the long-term efficiency and cost-effectiveness of your industrial steam system.

FAQ

What are the main differences between fire tube and water tube boilers?

The primary difference lies in their design and operation. Fire tube boilers have combustion gases flowing through tubes surrounded by water, whereas water tube boilers have water flowing through tubes surrounded by combustion gases.

Which type of boiler is more suitable for high-pressure applications?

Water tube boilers are generally more suitable for high-pressure applications due to their design, which allows for higher pressure and temperature ratings. They can handle pressures above 2000 psi.

How do the efficiency and performance of fire tube and water tube boilers compare?

Water tube boilers tend to be more efficient, especially in large-scale industrial applications, as they can achieve higher steam generation rates and better heat transfer. However, fire tube boilers are often more straightforward in design and can be more cost-effective for smaller applications.

What are the maintenance requirements for fire tube and water tube boilers?

Both types require regular maintenance, including inspections, cleaning, and water treatment. Water tube boilers, with their more complex design, may require more frequent inspections and maintenance of their tube bundles and headers.

Can fire tube and water tube boilers be used for the same industrial applications?

While there is some overlap, the choice between fire tube and water tube boilers depends on specific application requirements, including pressure, temperature, and steam quality. Water tube boilers are often used in power generation and large industrial processes, whereas fire tube boilers are commonly used in smaller, lower-pressure applications.

How do combustion gas flow and heat exchanger design impact boiler performance?

The design of the heat exchanger and combustion gas flow significantly impacts boiler efficiency and performance. Optimizing these factors can improve heat transfer, reduce emissions, and increase overall boiler efficiency.
