Comprehensive Guide: Differences Between Thermal Oil Boilers and Steam Boilers

When it comes to industrial heating systems, the choice between thermal oil boilers and steam boilers is critical. Both systems have unique advantages and limitations, and selecting the right one can significantly impact efficiency, cost, and operational performance. This guide will explore the key differences between these two boiler types, helping you make an informed decision for your industrial needs.

Understanding Thermal Oil Boilers and Steam Boilers

What Are Thermal Oil Boilers?

Thermal oil boilers use thermal oil as a heat transfer medium in a closed-loop system. Unlike steam boilers, they operate without a phase change, allowing for precise temperature control and lower pressure operation. The thermal oil absorbs heat in the boiler, transfers it to the point of use, and then returns to the boiler to repeat the cycle. These systems are ideal for applications requiring consistent high temperatures without the risks associated with high-pressure systems.

What Are Steam Boilers?

Steam boilers generate steam by heating water to its boiling point. The steam carries thermal energy to the point of use, where it condenses back into water. Steam boilers are available in two main types:

Fire-tube boilers: Combustion gases pass through tubes surrounded by water.

Water-tube boilers: Water flows through tubes surrounded by hot combustion gases.

Steam boilers are widely used in industries requiring direct steam contact, sterilization, or humidification.

Key Differences Between Thermal Oil Boilers and Steam Boilers

1. Operating Principles

Thermal Oil Boilers: Operate on a single-phase principle, where the thermal oil remains in liquid form throughout the heating cycle. This eliminates energy losses from phase changes and allows for precise temperature control.

Steam Boilers: Operate on a two-phase principle, where water undergoes a phase change to steam. This provides high energy density but requires careful management of pressure, condensate return, and water quality.

2. Heat Transfer Mechanisms

Thermal Oil Boilers: Use the high thermal capacity and stability of oil to transfer heat efficiently without the pressure concerns of steam systems.

Steam Boilers: Transfer heat through the latent heat of vaporization, offering high energy density but necessitating careful pressure management.

3. Thermal Efficiency

Thermal Oil Boilers: Typically operate at about 85% efficiency. However, they avoid energy losses from phase changes, making them more efficient in real-world applications.

Steam Boilers: Can achieve up to 95% combustion efficiency but face energy losses from blowdowns, condensate return, and high-temperature radiation.

4. Temperature and Pressure Capabilities

Thermal Oil Boilers: Provide temperatures up to 350°C (660°F) at low pressures (3-5 bar). Some specialized fluids can reach 400°C (750°F).

Steam Boilers: Can produce superheated steam up to 540°C (1000°F) but require high pressures (15 bar or more) to achieve these temperatures.

5. Maintenance and Operational Requirements

Thermal Oil Boilers: Require regular oil quality checks and replacement every 5-10 years. They do not need water treatment systems, reducing maintenance complexity.

Steam Boilers: Demand rigorous water treatment to prevent scaling and corrosion. They also require frequent maintenance of condensate systems and pressure components.

6. Safety Considerations

Thermal Oil Boilers: Operate at low pressures, reducing the risk of catastrophic failures. However, they require fire safety measures to manage potential oil leaks.

Steam Boilers: Operate as high-pressure vessels, necessitating robust safety systems and certified operators to mitigate risks.

7. Cost Analysis

Initial Investment: Thermal oil boilers are slightly cheaper than steam boilers of the same capacity.

Operating Costs: Thermal oil boilers have higher fuel consumption and periodic oil replacement costs. Steam boilers incur costs for water treatment, blowdowns, and condensate recovery systems.

8. Industry Applications

Thermal Oil Boilers: Ideal for industries requiring precise temperature control, such as chemical processing, textiles, and asphalt production.

Steam Boilers: Preferred for applications needing direct steam contact, sterilization, or humidification, such as food processing, pharmaceuticals, and hospitals.

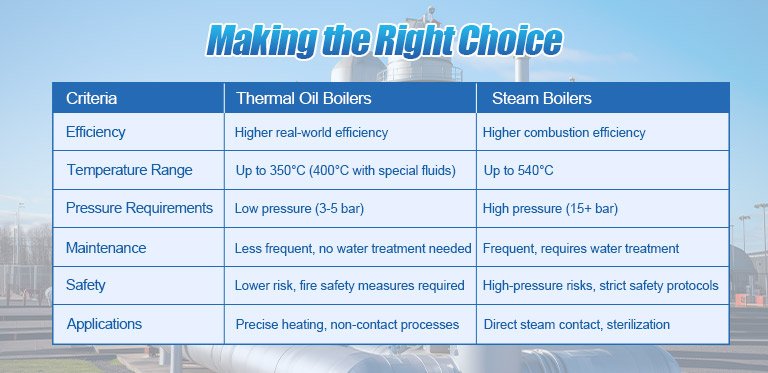

Making the Right Choice

Choosing between thermal oil boilers and steam boilers depends on your specific industrial needs. Here’s a quick summary to guide your decision:

Conclusion

Both thermal oil boilers and steam boilers have their strengths and limitations. Thermal oil boilers excel in applications requiring precise temperature control and low-pressure operation, while steam boilers are better suited for processes needing direct steam contact or high energy density.

At EPCB, we specialize in designing and manufacturing high-quality boiler systems tailored to your needs. Whether you choose a thermal oil boiler, a steam boiler, or a hybrid system, our team is here to provide expert guidance and support.
