Product Advantage

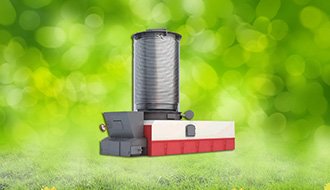

  • Vertical-Biomass-Thermal-Oil-Boiler

    This series of chain grate biomass fired thermal oil boilers are vertical coil pipes packages boilers. The grate and the main body are integrated when delivery. After installing the valves, instruments auxiliaries, and pipelines, it can be put into use directly.

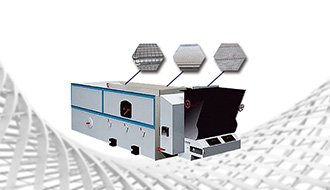

  • Biomass-Thermal-Oil-Boiler-Grate-Patterns

    With biomass as fuel, the boiler can customize suitable grate patterns according to the size of different solid fuels, such as chain grate, reciprocating grate, small scale grate, etc., to meet the user's requirements for the adaptability of various fuels.

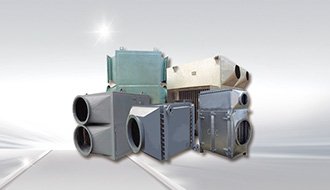

  • Airpreheater-Biomass-Thermal-Oil-Boiler

    A high efficiency air preheater is installed at the tail of the boiler to absorb the heat of the flue gas from the tail of the boiler and preheat air, so as to reduce the temperature of the flue gas and heat loss, further improve the thermal efficiency of the boiler.

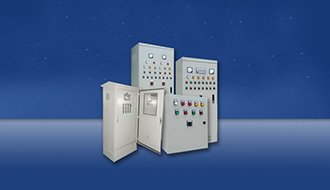

  • Biomass-Fired-Thermal-Oil-Boiler-Control

    Boiler uses high-end intelligent control cabinet, using world-renowned electrical components such as Siemens/Schneider, can automatically implement protective alarm in normal, accident and unusual conditions, to ensure the safe and stable operation of the boiler.

  • Various-Industries-Thermal-Oil-Boiler

    Boiler can obtain high working temperature under low pressure, and can control medium temperature with high precision, can meet the precise temperature requirements of various industries. It is widely used in petrochemical industry, synthetic fiber industry, textile printing and dyeing industry, plastics &rubber industry, etc.

Technical Parameters

Find the capacity of the biomass-fired hot oil boilers system you want and check other parameters of the boiler as a reference.

Item/Type

Vertical Chain Grate Biomass Fired Thermal Oil Boiler

Rated thermal power

kw

180

300

350

460

700

1000

1200

1400

1600

1900

×104(Kcal/h)

15

25

30

40

60

80

80

120

140

160

Boiler thermal efficiency %

73

73

73

73

76

76

76

76

78

78

Design pressure MPa

1.1

Max. working temperature ℃

320

Medium circulation flow m3/h

12.5

40

40

60

80

100

100

100

100

160

Main pipe diameter DN

40

80

80

100

100

125

125

125

125

150

Installation capacity kw

8.5

15

18/15

24/20

28/25

45/40

53/48

60/55

60

80/73

Fuel type

Biomass Pellet, Wood Chips, Sawdust, Palm Hulls, Oat Hulls, Rice Husks, Biomass Particles, Sunflower Seed Hulls, Coconut Hulls, etc.


No.

Item

Example/Issuer

Qty

Unit

1

Boiler Drawings

General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing.

1

Set

2

Boiler Quality Certificate

Issued by the boiler inspection department of China government.

1

Set

3

Certificate of Origin

Such as CO, Form E, Form F, Form A, etc.

1

Set

4

Boiler Thermodynamic Calculation Book

Issued by the boiler supplier.

1

Set

5

Boiler Strength Calculation Book

Issued by the boiler supplier.

1

Set

6

Installation & Operation Instruction

Issued by the boiler supplier.

1

Set


Auxiliaries
