Product Advantage

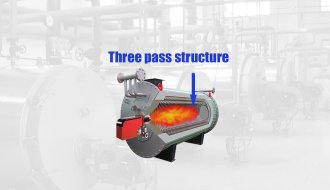

  • thermal oil boilers system structure

    The thermal oil boilers system adopts a two-coil structure, three-pass flue gas, compact design while increasing the heating surface, reducing the size of the boiler, saving steel, and reducing boiler costs. The floor space is reduced and the cost of the boiler room is saved.

  • thermal oil boilers system structure

    Boiler room design, boiler system solutions, a full set of services, on-site guidance installation and commissioning, furnace staff training, and other value-added services. Let you experience what a real boiler service is! Want to know why EPCB is a household name? Because we did it!

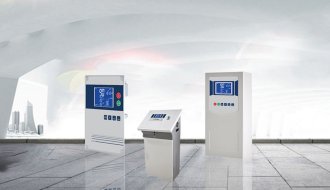

  • PLC electric control box

    A variety of safety interlock protection, various instrument valve monitoring system, make the boiler run more safely. One-touch operation on PLC touch screen makes boiler operation easier. To save you more labor costs, at the same time, the normal operation makes the effective life of the equipment longer!

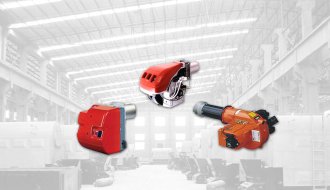

  • Burner

    Adopt Riello burner, two-stage fire, full combustion. The seal between the burner interface and the coil tube adopts the labyrinth technology, the sealing is very good, and the expansion space is large! Increase the service life of the burner and improve the thermal oil boilers system thermal efficiency!

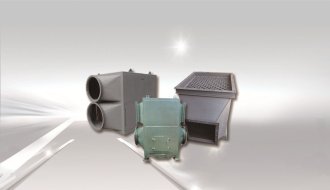

  • EPCB Boiler Economizers

    Equipped with economizers, air preheater, etc., coupled with an efficient boiler structure, the thermal efficiency of the thermal oil boilers system can reach 97%! Because the fuel is fully burned, the flue gas is all carbon dioxide and water vapor, and only a small amount of NOx and Sox. The emissions are fully up to the standard!

Technical Parameters

Find the capacity of the oil/gas-fired thermal oil boilers system you want and check other parameters of the boiler as a reference.

Item/Type

Oil/Gas Fired Thermal Oil Boiler

Rated thermal power

kw

350

600

900

1200

1500

1800

2300

2900

3500

4700

5900

7000

8200

9400

10500

12000

14000

15000

16000

×104(Kcal/h)

30

50

75

100

130

150

250

250

300

400

500

600

700

800

900

1000

1200

1300

1400

Boiler thermal efficiency %

92

92

92

92

92

93

93

93

93

93

93

93

93

93

94

94

94

94

94

Design pressure MPa

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

Max. working temperature ℃

320

320

320

320

320

320

320

320

320

320

320

320

320

320

320

320

320

320

320

Medium circulation flow m3/h

40

58

100

100

100

160

160

200

200

260

300

340

400

520

600

600

680

800

800

Medium volume m3

0.4

0.6

0.6

0.8

1.2

2.1

2.6

3.5

7.8

8.4

8.8

10.5

11.2

11.5

13

15

18

21

23

Main pipe diameter DN

100

100

125

125

125

150

150

200

200

200

250

250

250

300

300

300

350

350

350

Installation capacity kw

14.5

18

31

37.5

49.5

57.5

61.5

75

75

98.5

121.5

148.5

155

195

235

235

295

341

341

Fuel type

Diesel, Fuel Oil, Heavy Oil, Natural Gas, LPG, City Gas, Coke Oven Gas, Methane Gas, Biogas, Furnace Oil, etc.

Fuel consumption

Diesel kg/h

29.79

51.06

76.59

102.12

127.65

151.54

193.63

244.15

294.66

395.68

496.71

589.32

690.34

791.37

874.57

999.51

1166.09

1249.39

1332.68

Natural gas Nm³/h

36.42

62.44

93.66

124.88

156.11

185.31

236.79

298.56

360.33

483.87

607.41

720.66

844.20

967.74

1069.49

1222.27

1425.98

1527.84

1629.70

Boiler size m
(Diameter×H)

1.2×2.4

1.7×3

1.82×3.5

1.92×4

1.95×4.3

2.4×4.3

2.52×5.3

2.8×6.3

2.92×6

3.23×6.7

3.26×7.45

3.26×7.9

3.62×9

3.6×9.48

3.65×10.4

3.65×10.6

3.98×11.5

4×12.2

4.06×12.5

Circulating oil pump

Model WRY

80-50-180

100-65-190

100-65-230

100-65-240

100-65-257

125-80-250

125-80-250

125-100-250

125-100-250

125-100-257

125-100-260

150-125-270

125-100-250

125-100-257

125-100-260

125-100-260

150-125-270A

150-125-280A

150-125-280

Flow m³/h

40

60

100

100

100

160

160

200

200

260

300

340

200×2

260×2

300×2

300×2

340×2

400×2

400×2

Head m

40

38

55

70

80

60

60

60

60

70

70

76

60

70

70

70

76

78

78

Power kw

7.5

11

22

30

37

45

45

55

55

75

90

110

55×2

75×2

90×2

90×2

110×2

132×2

132×2

No.

Item

Example/Issuer

Qty

Unit

1

Boiler Drawings

General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing.

1

Set

2

Boiler Quality Certificate

Issued by the boiler inspection department of China government.

1

Set

3

Certificate of Origin

Such as CO, Form E, Form F, Form A, etc.

1

Set

4

Boiler Thermodynamic Calculation Book

Issued by the boiler supplier.

1

Set

5

Boiler Strength Calculation Book

Issued by the boiler supplier.

1

Set

6

Installation & Operation Instruction

Issued by the boiler supplier.

1

Set


Company Strength

EPCB Boiler is a professional boiler manufacturer in China. Focus on industrial boiler production and sales for 68 years. Our main products are coal-fired boilers, oil gas boilers, biomass boilers, electric boilers, and power plant boilers. EPCB Boiler has more than 15000 users, and the users are covering more than 100 countries and regions. EPCB Boiler is well received by users, because of its features energy saving, environmental protection, helping users save money and High quality After services. We have professional boiler engineers to customize the boiler system for you so that you and your enterprise can produce higher quality products at a lower cost! Make your enterprise more competitive!

  • Send You Inquiry

  • Give You Boiler Solution

  • Place The Order

  • Get Your Boiler

Ask for Boiler Solution Suited Your Condition!

Tell us your need about boiler capacity in your industry, we will recommend the most suitable boiler model for you!
