Product Advantage

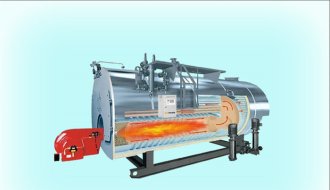

  • Fire-Tube-Oil-Gas-Fired-Steam-Boiler

    The insulation layer adopts high-density aluminum silicate fiber with more excellent insulation performance. To effectively block the radiation heat loss, we also added the aluminum foil layer. Compared with the ordinary insulation layer, this insulation measure can store the heat in the horizontal steam boiler better and save more energy, and can effectively save more than 10% of the fuel consumption.

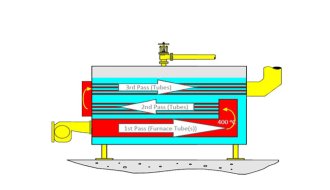

  • Oil-Gas-Fired-Boiler-Three-Pass-Wet-Back-Structure

    This series of horizontal steam boiler adopt the 3 passes full wet back structure, adopts corrugated furnace as the combustion chamber.; Compared with ordinary boilers, the heat exchange area is increased by at least 50%, and the thermal efficiency is increased by more than 30%. This structure can make the boiler structure more stable, and make the heat exchange of high-temperature flue gas and water more sufficient. The capacity of unit fuel can be increased by more than 30%!

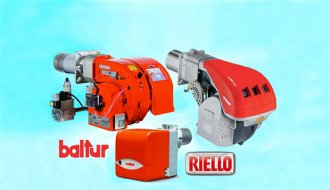

  • Oil-Gas-Fired-Steam-Boiler-Burner

    Adopt Burner of world-famous brands, such as Riello and CIB Unigas in Italy, Saacke in Germany and Oilon in Finland. With a variety of adjustment methods, the proportion of fuel and air is more reasonable, and the fuel is almost completely burned. The proportion of combustion chamber space and combustion flame size of the EPCB boiler is reasonable. High-temperature flue gas heat transfer is more sufficient. Produce the same steam, only need 70% fuel of ordinary boiler!

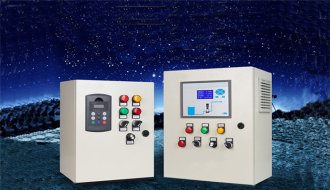

  • Oil-Gas-Fired-Steam-Boiler-Control-Cabinet

    According to the user's use environment, equipped with a more suitable PLC intelligent control system. The user only needs one key to start, the boiler system can run automatically according to the set procedure, and no special person is required to be on duty. Acoustic photoelectric alarm control, once the boiler has problems, the first time, through the fastest way to inform the boiler operator.

  • Fire-Tube-Oil-Gas-Fired-Steam-Boiler-Door

    The water treatment equipment adopts American Fleck, Chinese Runxin, etc., and equips with standby equipment. Ensure that the horizontal steam boiler can use the softened water up to the standard all day. It can be equipped with a condensate recovery device, can recover 70% of latent heat in water vapor and condensate for boiler use (It can be directly used by boiler),improve thermal efficiency while saving more water and water treatment costs.

Technical Parameters

Find the capacity of the horizontal steam boiler you want and check other parameters of the boiler as a reference.

Item/Type

Automatic Horizontal Fire Tube Oil Gas Fired Steam Boiler

Rated capacity t/h

0.5

1

1.5

2

3

4

5

6

8

10

15

20

Rated steam pressure MPa

0.7/1.0/1.25/1.6

Rated steam temperature ℃

170/184/194/204

Boiler thermal efficiency %

91.2

91.8

91.7

92.4

92.55

92.6

92.5

92.9

93.1

93.4

93.5

93.7

Body heating area m2

Boiler body

13.05

21.15

33.14

45.1

67.87

80.37

110.5

140.13

194.27

142.3

218.5

275.3

Economizer

10.4

18.6

20.4

26.1

30.4

43.41

46.5

57.1

74.4

112.6

155

225.5

Boiler water volume m3

1.19

2.49

3.96

5.6

6.25

7.54

8.9

8.5

13.9

19.5

24.5

31.5

Flue diameter mm

φ250

φ350

φ380

φ420

φ450

φ520

750×410

800×410

940×520

850×500

1200×600

1500×600

Water inlet diameter DN

25

40

40

40

40

50

50

50

50

50

65

80

Main steam valve diameter DN

50

65/25

65/40

80/40

100/40

100/40

125/40

125/40

150/40

150/40

200/50

200/65

Safety valve diameter DN

40

50

2×40

2×40

2×40

50+40

2×50

2×65

2×65

2×80

2×100

2×100

Blowdown diameter DN

40

40

40

40

40

40

40

40

40

2×50

2×50

2×50

Fuel consumption

Diesel kg/h

30.03

59.70

89.65

118.63

177.65

236.74

296.25

353.97

470.95

586.79

879.25

1169.83

Natural gas Nm³/h

36.72

73.01

109.63

145.07

217.25

289.51

362.28

432.40

573.44

717.57

1075.21

1430.55

Largest transportation size

Length mm

2550

3100

3750

3660

4600

4900

5250

5850

6500

6240

8500

9200

Width mm

1450

2200

1950

2700

2200

2300

2350

2400

2600

2850

3500

3950

Height mm

1740

2200

2250

2630

2500

2650

2680

2700

2850

3100

4000

4350

Largest transportation weight kg

2300

3600

4400

5300

8000

8700

11200

12500

17800

22000

32500

40500

No.

Item

Example/Issuer

Qty

Unit

1

Boiler Drawings

General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing.

1

Set

2

Boiler Quality Certificate

Issued by the boiler inspection department of China government.

1

Set

3

Certificate of Origin

Such as CO, Form E, Form F, Form A, etc.

1

Set

4

Boiler Thermodynamic Calculation Book

Issued by the boiler supplier.

1

Set

5

Boiler Strength Calculation Book

Issued by the boiler supplier.

1

Set

6

Installation & Operation Instruction

Issued by the boiler supplier.

1

Set

Auxiliaries
