Product Advantage

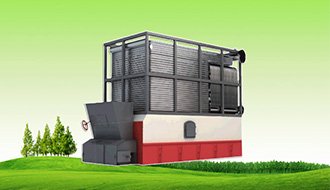

  • Chain-Grate-Biomass-Thermal-Oil-Boiler-Body

    Horizontal chain grate biomass fired thermal oil boiler adopts closed-circuit liquid-phase circulation, tightly arranged coil structure with low heat loss; the shell adopts square box type furnace shell, beautiful appearance and convenient transportation.

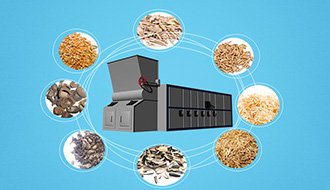

  • Biomass-Fuel-Chain-Grate-Boiler

    This series of thermal oil boilers(hot oil boilers) can use chain grate, scale grate, reciprocating grate and other types of grate. The grate bars have good wear resistance, less fuel leakage, easy replacement, suitable for burning various biomass fuels, and have long service life.

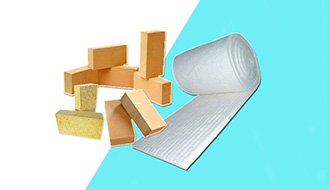

  • Thermal-Oil-Boiler-Insulation -Materials

    Boiler thermal insulation performance is good, adopts efficient thermal insulation materials and advanced construction technology, heat loss of furnace wall is small, heating fast, has a certain overload capacity, to ensure adequate output of the boiler.

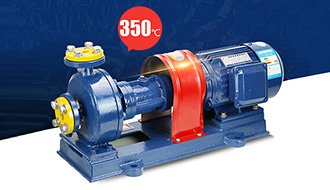

  • Thermal-Oil-Boiler-Oil-Circulating-Pump

    Equipped with the third generation air-cooled circulating oil pump, which changes the traditional water-cooled structure, makes the volume smaller, and has good sealing and thermal adaptability. It can run steadily for a long time, without fault, and saves operating costs for users.

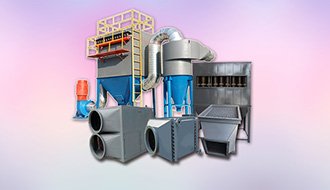

  • Thermal-Oil-Boiler-Parts-Auxiliaries

    The use of high-efficiency dust collector and air preheater makes the boiler keep no black smoke, and the heat of exhaust gas from the boiler system is fully utilized, which greatly reduces the exhaust gas temperature and saves more fuel costs for users.

Technical Parameters

Find the capacity of the biomass-fired hot oil heaters you want and check other parameters of the boiler as a reference.

Item

Horizontal Chain Grate Biomass Fired Thermal Oil Boiler

Rated thermal power

kw

1900

2300

2900

3500

4100

4700

5900

7000

8200

9400

12000

14000

16500

17500

19000

23500


×104(Kcal/h)

160

200

250

300

350

400

500

600

700

800

1000

1200

1400

1500

1500

2000

Boiler thermal efficiency %

82

83

83

83

83

83

84

84

84

84

84

85

85

85

85

85

Design pressure MPa

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

Max. working temperature ℃

320

320

320

320

320

320

320

320

320

320

320

320

320

320

320

320

Medium circulation flow m3/h

160

160

200

200

200

260

300

340

400

520

500

620

800

1000

1000

1000

Medium volume m3

1.7

2.6

3

3.2

3.5

4.1

4.6

6.2

8.9

12.6

13.6

14.8

16.5

18.2

19.7

22.3

Main pipe diameter DN

150

150

200

200

200

200

250

250

250

300

300

350

350

400

400

400

Installation capacity kw

75

77

100

100

120

140

175

215

215

270

315

380

460

540

600

620

Fuel type

Biomass Pellets, Wood Chips, Rice Husk, Sawdust, Charcoal, Oat Hulls, Palm Kernel Shell, Coconut Shell, Sunflower Seed Shell, etc.

Fuel consumption

Coal kg/h

307.01

367.17

462.95

558.73

654.51

750.30

930.65

1104.16

1293.44

1482.73

1892.84

2182.34

2572.04

2727.92

2961.74

3663.21

Biomass kg/h

443.69

530.63

669.06

807.49

945.91

1084.34

1344.98

1595.74

1869.30

2142.86

2735.56

3153.94

3717.15

3942.43

4280.35

5294.12

Boiler weight

ton

25

32

33

39

41

67

70

80

98

108

115

130

140

170

197

225


No.

Item

Example/Issuer

Qty

Unit

1

Boiler Drawings

General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing.

1

Set

2

Boiler Quality Certificate

Issued by the boiler inspection department of China government.

1

Set

3

Certificate of Origin

Such as CO, Form E, Form F, Form A, etc.

1

Set

4

Boiler Thermodynamic Calculation Book

Issued by the boiler supplier.

1

Set

5

Boiler Strength Calculation Book

Issued by the boiler supplier.

1

Set

6

Installation & Operation Instruction

Issued by the boiler supplier.

1

Set


Auxiliaries
