Capacity: 1~20T/h
Pressure: 1.0 ~ 2.5 MPa
Fuel: Bituminous Coal, Soft Coal, Anthracite, Lignite, Poor Coal, etc.
Application: Food Plant, Paper Mill, Textile Plant, Chemical Plant, Printing and Dyeing Plant, Paper Mill, Oil Processing Plant, Fish Meal Plant, Power Plant…

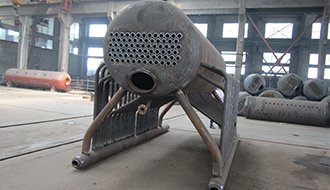

Boiler adopts single drum horizontal three-pass structure with large furnace, which fully guarantees sufficient heating surface of boiler and sufficient steam output. And spirally corrugated tube are used to enhance heat transfer and improve thermal efficiency.

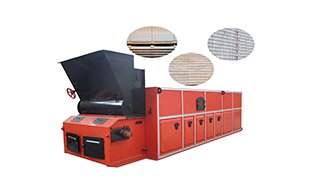

Adopt movable chain grate. According to different fuel characteristics of users, appropriate grate pieces are selected, such as small scale grate, reciprocating grate, etc. The grate has small gap, low coal leakage and high temperature resistance up to 1200℃.

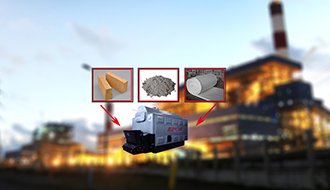

The furnace wall of the boiler is poured entirely by high quality high-temperature refractory bricks and refractory cement. The shell of the boiler is insulated by aluminium silicate plate, which has no smoke leakage and less heat loss.

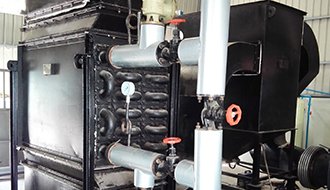

Equipped with efficient economizer and dust collector. Recover the heat of flue gas, reduce the temperature of flue gas, improve the thermal efficiency, and fully ensure that the pollutant emissions of boilers meet the requirements of the national environmental protection department.

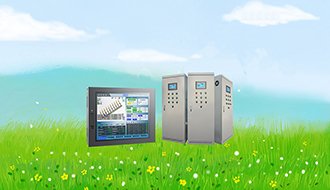

Users can choose different electric control configuration schemes with multiple interlocking protection, such as: ordinary button-type control box, easy to operate and durable; PLC touch screen intelligent electric control, directly shows the combustion situation on the the interface.
Find the capacity of the coal fired steam boiler you want and check other parameters of the boiler as a reference.
Item/Type | Single Drum Chain Grate Coal Fired Steam Boiler | |||||||||
Rated capacity t/h | 1 | 2 | 4 | 6 | 8 | 10 | 12 | 15 | 20 | |
Rated steam pressure MPa | 0.7/1.25 | 0.7/1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | |
Rated steam temperature ℃ | 170/194 | 170/194/204 | 194/204 | 194/204 | 194/204 | 194/204 | 194/204 | 194/204 | 194/204 | |
Feed water temperature ℃ | 20 | |||||||||
Boiler thermal efficiency % | 78.1 | 80.2 | 82.3 | 82.5 | 82.5 | 82.9 | 82.9 | 83.1 | 83.1 | |
Body heating area m2 | 22.99 | 48.7 | 96.34 | 148.15 | 174.4 | 226.2 | 276 | 374.5 | 669 | |
Fuel & consumption | Fuel type | Class II Soft Coal, Biomass, Wood Chips, Wood Pellets, | ||||||||
Coal kg/h | 118.76 | 231.30 | 450.79 | 674.54 | 899.39 | 1118.81 | 1342.57 | 1674.18 | 2232.23 | |
Biomass kg/h | 171.63 | 334.27 | 651.48 | 974.85 | 1299.81 | 1616.92 | 1940.30 | 2419.54 | 3226.05 | |
Size of boiler largest parts | Length | 4600 | 5800 | 6700 | 7000 | 7300 | 7600 | 7600 | 8500 | 9500 |
Width | 1900 | 2600 | 2700 | 3000 | 3000 | 3200 | 3200 | 3400 | 3800 | |
Height | 2900 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 7100 | |
Weight of boiler | 18 | 22 | 30.1 | 40 | 21/14 | 23/17 | 23/19 | 21/24 | 25/24 | |
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
